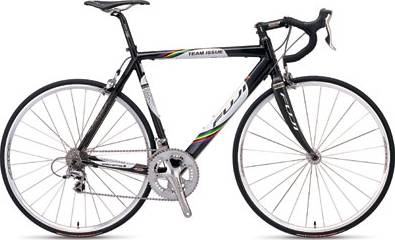

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Monoque High Modulus C-7 carbon with 12K custom weave carbon strands, Integrated aluminum cupped head tube, Double water bottle mounts.
Suspension Fork
FC-440 Fuji Carbon Monocoque Integrated 1 1/8" Carbon steerer , 420g
Drivetrain
Rear Derailleur
Shimano Dura Ace
Front Derailleur
Shimano Dura Ace F-Type
Shift Levers
Shimano Dura Ace shifter/brake, 20-speed Flight Deck compatible
Cassette
Shimano Dura Ace, 12/23T 10-speed,
Crank
Shimano Dura Ace Integrated two piece, 39/53T
Bottom Bracket
Shimano Exterior Bearing system
Chain
Shimano Dura Ace 10-speed
Pedals
none
Wheels
Rims
Cane Creek Volos Sterling 700c Clincher
Tires
Vittoria Corsa EVO CX
Brakes
Brakes
Shimano Dura Ace
Brake Levers
Shimano Dura Ace Shifter/Brake, Flight Deck compatible
Cockpit
Stem
Ritchey WCS 31.8mm Road, 2014 Net Forged, 6 degree
Handlebar
Ritchey Carbon WCS 31.8mm Road, TRX50 alloy
Headset
Cane Creek 1 1/8" Integrated Road, with Carbon convex topcap and InterLoc spacers
Seat
Saddle
Selle Italia SLR XP
Seatpost
Ritchey Carbon WCS 250mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Bottom Bracket Height | 281 mm | 281 mm | 281 mm | 281 mm | 281 mm | 281 mm |
| Front Center | 576 mm | 582 mm | 576 mm | 586 mm | 596 mm | 600 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 40 mm |
| Top Tube Length | 519 mm | 534.1 mm | 555.2 mm | 565.2 mm | 575.2 mm | 595.6 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 72 ° | 72 ° | 73.5 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 129 mm | 129 mm | 129 mm | 144 mm | 169 mm | 194 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 981 mm | 987 mm | 981 mm | 990 mm | 1000 mm | 1005 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 757 mm | 770 mm | 781 mm | 798 mm | 820 mm | 847 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
Model Overview
Team Issue is a Fuji Team Issue model. 11 bikes variations carry this model name so far. Check out the entire range from 2006 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
General Road bikes average price
Our math shows that the average cost of a dependable General Road bike is 1915$. However, you could also get a good General Road bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Team Issue components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
As for the wheels, Fuji Team Issue 2006, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 155 cm – 191 cm (5.09 ft – 6.27 ft). In conclusion, finding one for you shouldn’t be a problem.
