Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 170mm -
Fork Manitou
-
Groupset Deore, Truvativ -
Suspension Full -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji Altair 2 aluminum, custom butted and shaped with PowerDiamond down tube, integrated head tube, top tube/seat tube gusset, down tube gusset, water bottle mount
Suspension Fork
Manitou Stance Flow, 170mm travel w/ 1.5mm steerer
Rear Shock
Manitou Metel RPA w/ SPV Piggy Back Valving
Drivetrain
Rear Derailleur
NEW Shimano Deore
Front Derailleur
NEW Shimano Deore, 34.9mm, top pull
Shift Levers
Shimano Deore Rapid Fire Shifter/Hydraulic Brake Lever
Cassette
SRAM 7.0, 11-32T 9-speed
Crank
TruVativ Hussefelt w/Bash Guard, 22/32T
Bottom Bracket
TruVativ Team DH
Chain
KMC HG-73
Pedals
none
Wheels
Front Hub
Formula DC-36 Sealed Bearing Disc w/20mm Thru-Axle, 36H
Rear Hub
Formula DC-36 Sealed Bearing Disc w/10mm QR, 36H
Rims
NEW Alex W-650 DH Double Wall Single Eyelet Disc Rim, 36H
Spokes
14G Stainless Steel
Tires
Continental Diesel, 26 X 2.5"
Brakes
Brakes
Magura Louise FR w/ 180mm rotors
Brake Levers
Magura Louise FR Hydraulic
Cockpit
Stem
TruVativ Holzfeller 1 1/8"
Handlebar
TruVativ Hussefelt 31.8mm Riser
Headset
V.P. OnePointFive 1 1/2" Standard w/15mm spacers
Seat
Saddle
WTB Power V Comp
Seatpost
TruVativ XR Double Bolt 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 16" | 17" |
|---|---|---|---|
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm |
| Front Center | 607 mm | 647 mm | 671 mm |
| Rake | 38 mm | 38 mm | 38 mm |
| Top Tube Length | 543 mm | 578 mm | 603 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 381 mm | 406 mm | 432 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 110 mm | 125 mm | 125 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1059 mm | 1099 mm | 1123 mm |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm |
| Standover Height | 758 mm | 764 mm | 787 mm |
| Wheels | 26" | 26" | 26" |
About this model

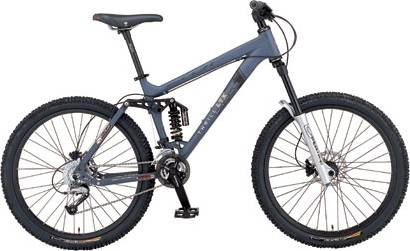

Thrill LTX belongs to the Fuji Thrill model. 16 bikes variations carry this model name so far. You can get a glimpse at all models from 2006, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Downhill bikes average price
If you want to purchase a solid Downhill bike, it is important to know that the average cost is 3391$. However, you could also get a good Downhill bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Thrill LTX components
Fork
The fork installed on this bike is the Manitou model. The travel on this model is 170mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the Thrill LTX model has 26″ aluminum wheels. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
