Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 180mm -
Fork RockShox Domain
-
Groupset Deore, Truvativ -
Suspension Full -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji Altair 2 aluminum, custom butted and shaped, 1 1/2" head tube, top tube/seat tube gusset, down tube gusset, water bottle mount
Suspension Fork
NEW Rock Shock Domain 318IS Coil, Thru Axle 180mm travel w/ 1.5mm steerer
Rear Shock
Manitou Metal RPA w/ SPV Piggy Back Valving
Drivetrain
Rear Derailleur
Shimano Deore LX
Front Derailleur
Shimano Deore, 34.9mm, top pull
Shift Levers
Shimano Deore Rapid Fire Shifter
Cassette
SRAM PG-950, 11-32T 9-speed
Crank
TruVativ Hussefelt w/Bash Guard, 22/32T
Bottom Bracket
TruVativ Howitzer DH
Chain
KMC HG-73
Pedals
none
Wheels
Front Hub
Formula DC-36 Sealed Bearing Disc w/20mm Thru-Axle, 36H
Rear Hub
Formula DC-36 Sealed Bearing Disc w/10mm QR, 36H
Rims
Jalco DD40 Double Wall Single Eyelet Disc Rim, 36H
Spokes
14G Stainless Steel
Tires
Continental Diesel 26 X 2.5 Wire
Brakes
Brakes
Magura Louise FR w/ 180mm rotors
Brake Levers
Magura Louise FR Hydraulic
Cockpit
Stem
TruVativ Holzfeller 1.5mm
Handlebar
TruVativ Hussefelt 31.8mm Riser
Headset
V.P. OnePointFive 1 1/2" Standard w/15mm spacers
Seat
Saddle
WTB Power V Comp
Seatpost
TruVativ XR Double Bolt 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm |
| Front Center | 679 mm | 699 mm | 724 mm |
| Rake | 38 mm | 38 mm | 38 mm |
| Top Tube Length | 563 mm | 583 mm | 608 mm |
| Seat Tube Angle | 75 ° | 75 ° | 72 ° |
| Seat Tube Length | 381 mm | 432 mm | mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 125 mm | 125 mm | 125 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1126 mm | 1146 mm | 1171 mm |
| Bottom Bracket Drop | 3 mm | 3 mm | 3 mm |
| Standover Height | 806 mm | 810 mm | 807 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |

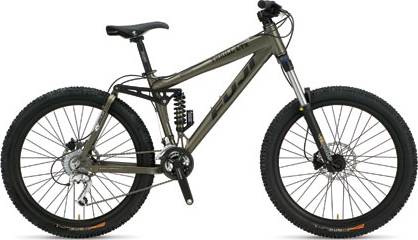

About this model
Thrill LTX belongs to the Fuji Thrill model. Fuji launched 16 bikes of this model so far. You can get a glimpse at all models from 2007, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Downhill bikes average price
According to our math, the average price for a trustworthy Downhill bike is 3391$. However, this doesn’t mean that if you spend less money on a Downhill bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Thrill LTX components
Fork
The RockShox Domain is included from the factory. It has a travel distance of 180mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The Thrill LTX 2007 bike is equipped with 26″ aluminum wheels when leaving the factory. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji Thrill LTX has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Thrill LTX comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
