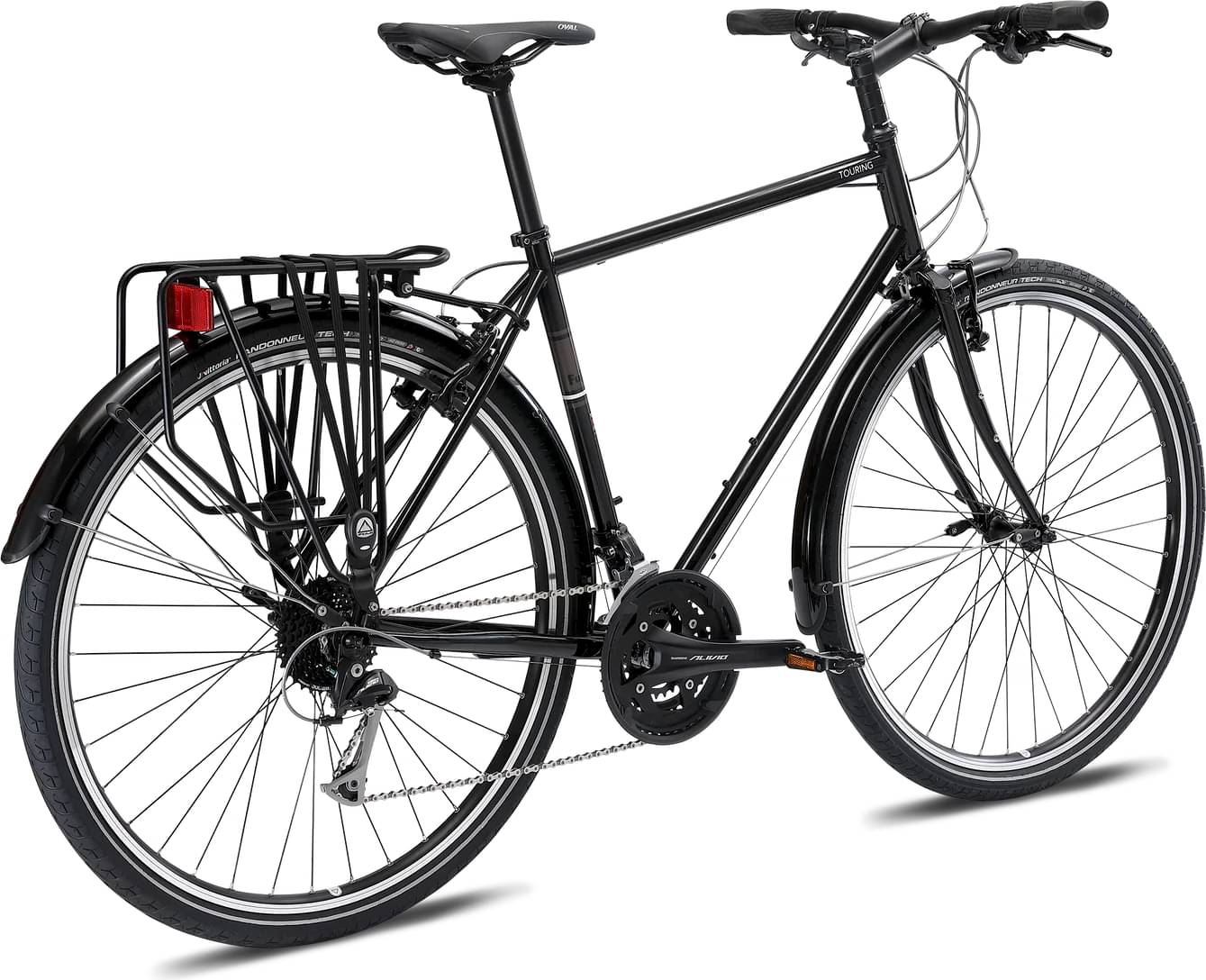

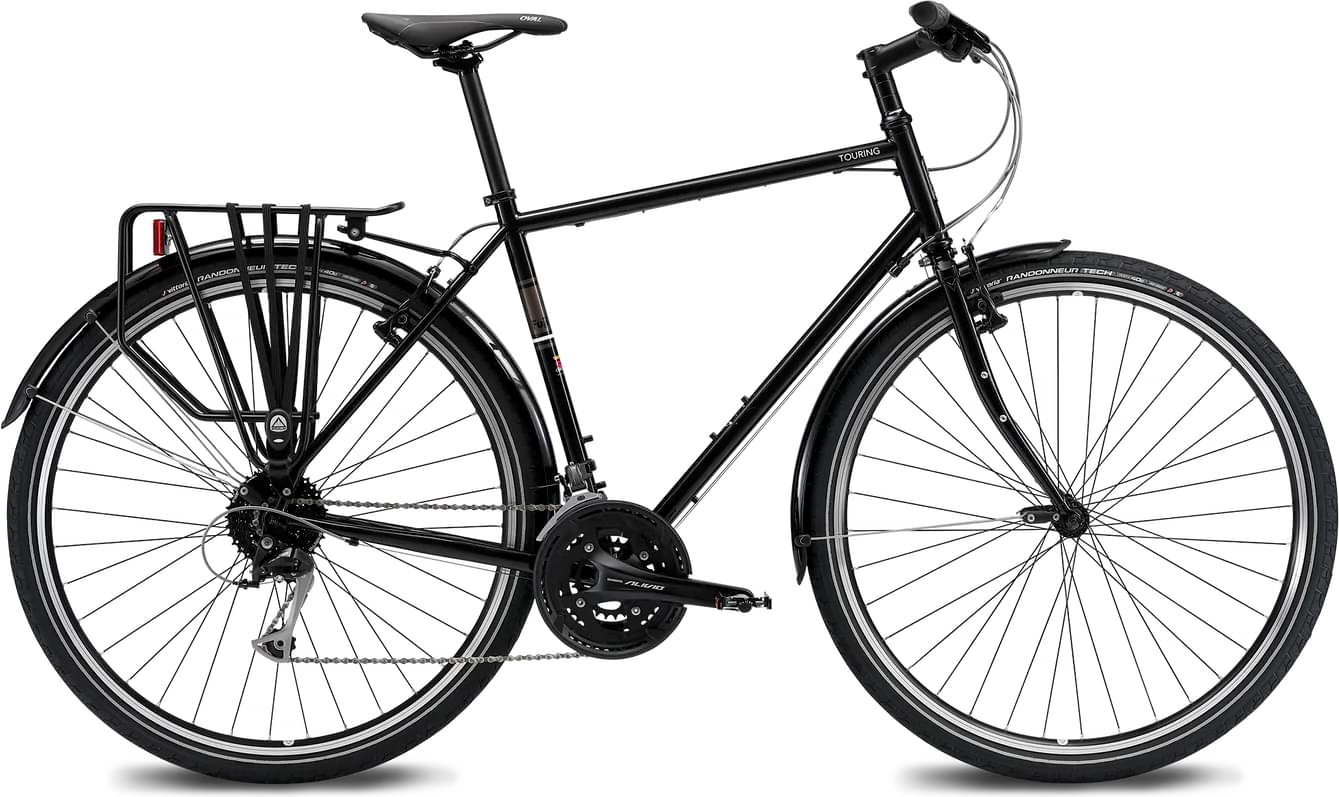

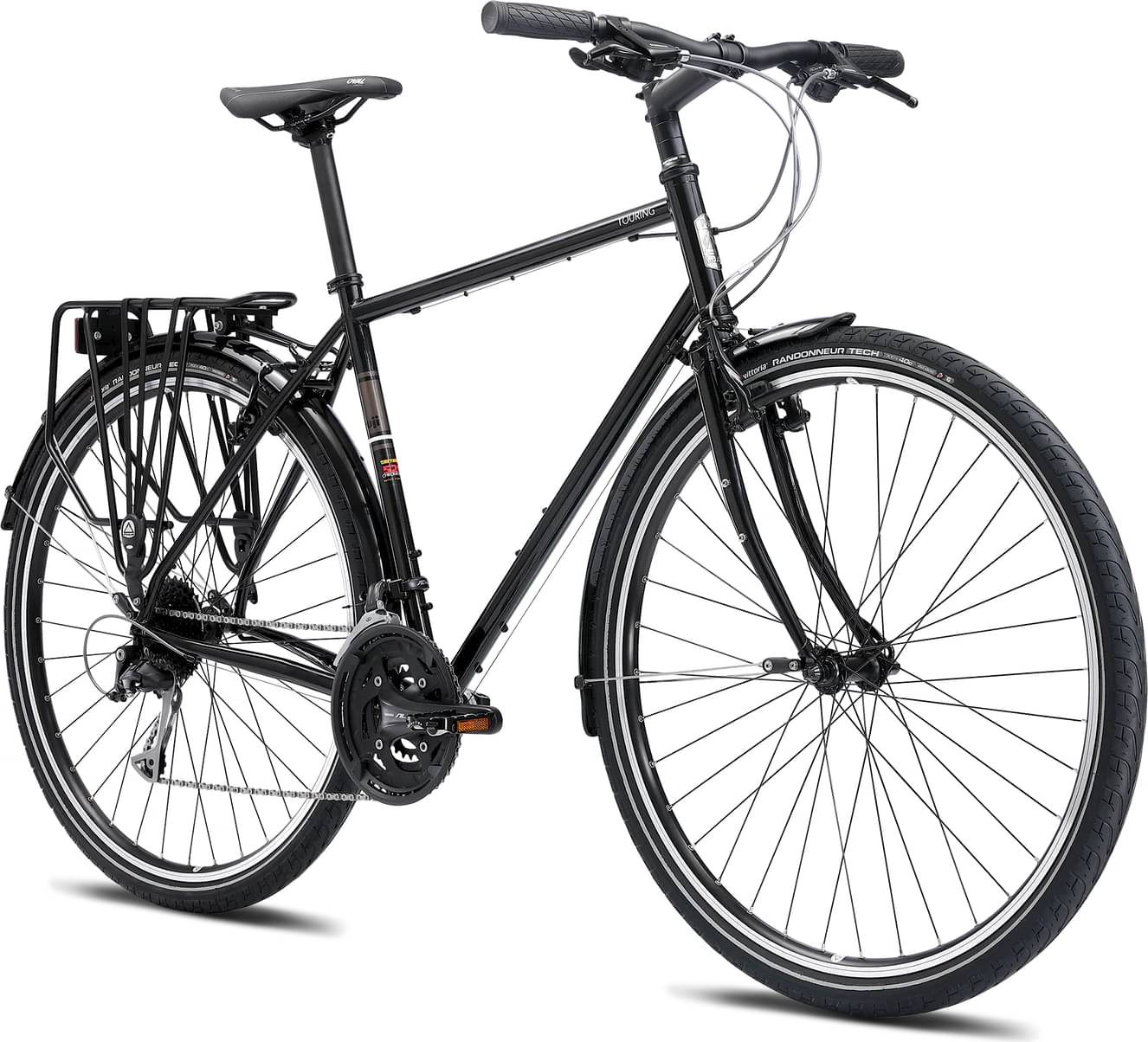

Fuji Touring LTD 2023
2023 Road
Estimate price |
1,146$
Weight | 14.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Alivio -
Suspension Rigid -
Drivetrain 3 × 9 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Reynolds 520 chromoly, rack & fender mounts, pump peg & chain hanger
Suspension Fork
Chromoly w/ 1 1/8" steerer, low-rider water bottle and rack mounts
Drivetrain
Rear Derailleur
Shimano Alivio
Front Derailleur
Shimano Alivio, 28.6mm clamp
Shift Levers
Shimano Alivio Rapidfire
Cassette
Shimano HG200, 11-34T, 9-speed
Crank
Shimano Alivio, 48/36/26T
Bottom Bracket
Shimano sealed cartridge bearing
Chain
KMC X9
Pedals
Alloy platform
Wheels
Rims
Alex double wall, 36h, Shimano hubs
Tires
Vittoria Randonneur, 700 x 40c
Brakes
Brakes
Shimano Alivio linear pull
Brake Levers
Tektro RL520
Cockpit
Stem
3D-forged 6061, +/-6°
Handlebar
Alloy, 18mm rise, 6° backsweep
Grips
Selle San Marco Presa XC
Headset
FSA, 1 1/8", sealed
Seat
Saddle
Fuji Road
Seatpost
6061 alloy, 27.2mm diameter
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL | XXXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.48 mm | 1.59 mm | 1.6 mm | 1.61 mm | 1.62 mm | 1.64 mm |
| Bottom Bracket Height | 258 mm | 258 mm | 258 mm | 258 mm | 258 mm | 258 mm | 258 mm |
| Front Center | 610 mm | 610 mm | 610 mm | 617 mm | 632 mm | 648 mm | 661 mm |
| Rake | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm |
| Trail | 61 mm | 61 mm | 62 mm | 62 mm | 63 mm | 65 mm | 66 mm |
| Stack | 548 mm | 560 mm | 581 mm | 600 mm | 619 mm | 637 mm | 656 mm |
| Reach | 376 mm | 378 mm | 366 mm | 376 mm | 385 mm | 394 mm | 401 mm |
| Top Tube Length | 534 mm | 539 mm | 544 mm | 554 mm | 574 mm | 589 mm | 609 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 490 mm | 510 mm | 530 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 110 mm | 120 mm | 140 mm | 160 mm | 180 mm | 200 mm | 220 mm |
| Chainstay Length | 449 mm | 449 mm | 449 mm | 449 mm | 449 mm | 449 mm | 449 mm |
| Wheelbase | 1047 mm | 1047 mm | 1047 mm | 1054 mm | 1069 mm | 1085 mm | 1099 mm |
| Bottom Bracket Drop | 78 mm | 78 mm | 78 mm | 78 mm | 78 mm | 78 mm | 78 mm |
| Standover Height | 755 mm | 780 mm | 802 mm | 823 mm | 837 mm | 861 mm | 887 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
Touring LTD completes the Fuji Touring model. There are 25 bikes that carry this model name. You can easily view all of the Fuji Touring bikes models from 2023, here.
Model range prices
Fuji Touring 2023 is the most affordable bike of this model and has a price of 952$. On the other hand, Fuji Touring Disc LTD 2023, is the most expensive and costs 1539$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Touring bikes
According to our calculations, the average cost of a Touring bike that is reliable is 1007$. However, you could also get a good Touring bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 1061$. Comparing this to the average Touring bike price, we see that the price is 5.36% more expensive.
Average weight for Touring bikes
The average weight for Touring bikes is 13.35 kg (29.43 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Fuji Touring LTD it’s weighing 14.5 kg (31.97 lbs). At this weight, is a bit heavier than average. To sum up, it’s 8.61% heavier than the average weight of Touring bikes.
Overview of components
Fork material
The fork on this bike is made out of steel, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels size
When it comes to wheels, the Touring LTD bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Touring LTD has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
