Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Suspension Rigid -
Drivetrain Single Speed -
Brakes Rim
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A2-SL custom butted Aluminum w/Aero shaped down tube and seat tube, Integrated head.
Suspension Fork
FC-770 Fuji Straight Blade Integrated Carbon w/1 1/8" Alloy steerer
Drivetrain
Rear Derailleur
none
Front Derailleur
none
Shift Levers
none
Cassette
Fuji 15T Sprocket w/Lockring
Crank
Fuji CGC 3pc Isis Track 144 bolt pattern, 48T
Bottom Bracket
Fuji Sealed Cartridge Isis
Chain
KMC Z-510HX 1/2"X1/8"
Wheels
Rims
Fuji CGC Aero 30 Double Track Wheelset - 700c
Tires
Vittoria Zaffiro Slick 700x23c, Wire Bead
Brakes
Brakes
Tektro R-310 Forged Alloy, Rear only
Brake Levers
Fuji Road Racing Forged Alloy
Cockpit
Stem
Fuji CGC Forged Alloy, 31.8mm
Handlebar
Fuji CGC Track Alloy oversize
Headset
V.P. 1 1/8" Integrated Road, with convex hollow Alloy spacer
Seat
Saddle
Oval SR-500 Sweep w/CrMo rails
Seatpost
Fuji CGC Alloy, 300x27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.28 mm | 1.22 mm | 1.26 mm | 1.29 mm | 1.33 mm | 1.37 mm |
| Bottom Bracket Height | 290 mm | 290 mm | 290 mm | 290 mm | 290 mm | 290 mm |
| Front Center | 563 mm | 583 mm | 573 mm | 583 mm | 592 mm | 602 mm |
| Rake | 45 mm | 45 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Trail | 50 mm | 50 mm | 52 mm | 52 mm | 52 mm | 49 mm |
| Stack | 501 mm | 501 mm | 513 mm | 533 mm | 552 mm | 578 mm |
| Reach | 391 mm | 411 mm | 407 mm | 412 mm | 416 mm | 423 mm |
| Top Tube Length | 528 mm | 544.5 mm | 554.7 mm | 565 mm | 574.7 mm | 594.9 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74 ° | 74 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 74 ° | 74 ° | 74.5 ° | 74.5 ° | 74.5 ° | 75 ° |
| Head Tube Length | 109 mm | 109 mm | 119 mm | 139 mm | 159 mm | 184 mm |
| Chainstay Length | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm |
| Wheelbase | 966 mm | 986 mm | 976 mm | 986 mm | 996 mm | 1005 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 748 mm | 763 mm | 777 mm | 796 mm | 815 mm | 842 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
About this model

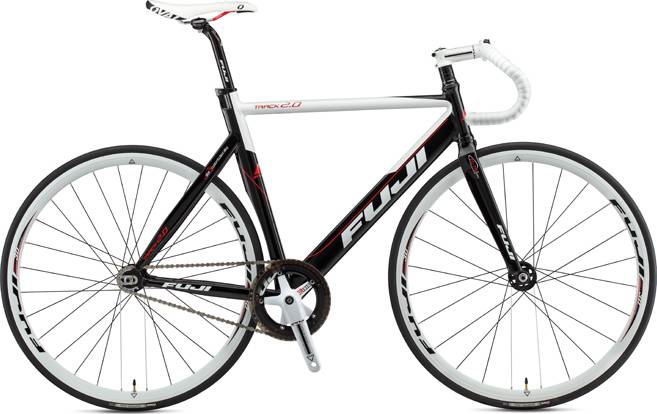

Track 2.0 (USA) belongs to the Fuji Track model. There are 75 bikes that carry this model name. Take a sneak peek at all Fuji Track bikes models from 2011, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Track bikes average price
If you want to purchase a solid Track bike, it is important to know that the average cost is 1503$. However, this doesn’t mean that if you spend less money on a Track bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Track bikes
Track bikes weigh an average of 7.85 kg (17.31 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
a bit heavier than average, Track 2.0 (USA) has a weight of 8.4 kg (18.52 lbs). To sum up, it’s 7.01% heavier than the average weight of Track bikes.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the Track 2.0 (USA) model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji Track 2.0 (USA) has Rim brakes installed. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
Sizes
This bike is available in 6 sizes. They vary from 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, you won’t have a problem finding one that suits you.
