Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Suspension Rigid -
Drivetrain Single Speed -
Brakes Rim
Sizing
Recommended size guide.
XS
155cm - 168cm
SM
163cm - 174cm
MD
170cm - 181cm
MD/LG
175cm - 187cm
LG
181cm - 193cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A6-SL custom-butted alloy w/ aero shaped down tube, hydroformed top tube, integrated head tube
Suspension Fork
FC-770 straight blade integrated carbon w/ 1 1/8" carbon steerer
Drivetrain
Rear Derailleur
N/A
Front Derailleur
N/A
Shift Levers
N/A
Cassette
Fuji 15T sprocket w/ lockring
Crank
Fuji CGC 3-piece forged alloy track, 144 bolt pattern, 48T
Bottom Bracket
Fuji Sealed cartridge Isis
Chain
KMC Z-510HX
Wheels
Rims
Fuji CGC 30mm aero alloy
Tires
Hutchinson Nitro, 700x23c
Brakes
Brakes
Tektro R-310 forged alloy
Brake Levers
Fuji aero levers
Cockpit
Stem
Fuji CGC forged alloy, 31.8mm
Handlebar
Fuji CGC track alloy, 31.8mm
Headset
1 1/8" Campy System w/ alloy top cover
Seat
Saddle
Selle Italia X1 w/ FeC alloy rails
Seatpost
Fuji carbon w/ alloy clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.25 mm | 1.21 mm | 1.24 mm | 1.24 mm | 1.26 mm | 1.27 mm |
| Front Center | 55 mm | 56 mm | 57 mm | 59 mm | 60 mm | 62 mm |
| Rake | 3 mm | 3 mm | 3 mm | 3 mm | 3 mm | 3 mm |
| Trail | 570 mm | 580 mm | 594 mm | 607 mm | 612 mm | 630 mm |
| Stack | 492.4 mm | 492.1 mm | 513.1 mm | 527.6 mm | 546.8 mm | 570.9 mm |
| Reach | 394.4 mm | 406.9 mm | 414.4 mm | 425.2 mm | 434.7 mm | 447.8 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74.5 ° | 74.5 ° |
| Bottom Bracket Drop | 4 mm | 4 mm | 4 mm | 4 mm | 4 mm | 4 mm |
| Standover Height | 752 mm | 771 mm | 785 mm | 801 mm | 821 mm | 844 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 163 cm | 170 cm | 175 cm | 181 cm | 188 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 200 cm |
Model Overview

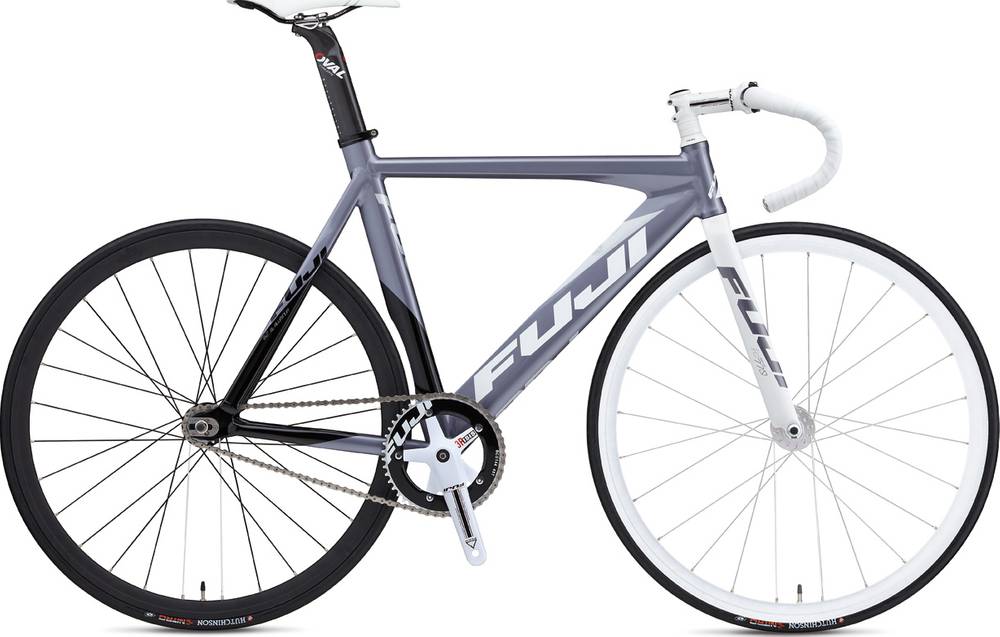

Track 2.0 USA is part of the Fuji Track model. There are 75 bikes that carry this model name. Take a sneak peek at all Fuji Track bikes models from 2012, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Track bikes average price
According to our calculations, the average cost of a Track bike that is reliable is 1503$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Track bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Track 2.0 USA components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The Track 2.0 USA 2012 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
