Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Suspension Rigid -
Drivetrain Single Speed -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Elios 2, custom-butted Cr-Mo
Suspension Fork
Elios 2, custom-butted Cr-Mo
Drivetrain
Rear Derailleur
N/A
Front Derailleur
N/A
Shift Levers
N/A
Cassette
16T fixed cog w/ lockring
Crank
Fuji, forged alloy, 46T
Bottom Bracket
FSA, sealed cartridge bearing
Chain
KMC Z510
Pedals
Aero road w/ clips and straps
Wheels
Rims
Vera Corsa DPM27, double wall, 24/28h, Formula alloy track hubs
Tires
Vera Helios, 700 x 25, 60tpi (XXS Vera Invictus 650c x 23, 30tpi)
Brakes
Brakes
Alloy dual pivot
Brake Levers
Alloy 2-finger
Cockpit
Stem
Fuji, 3D forged alloy, 26.0mm, +/- 7°
Handlebar
Fuji track, alloy 26.0mm
Headset
FSA 1 1/8" threadless
Seat
Saddle
Oval Concepts R300 w/ steel rails
Seatpost
Fuji alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 43cm | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.21 mm | 1.31 mm | 1.3 mm | 1.33 mm | 1.38 mm | 1.41 mm | 1.46 mm |
| Bottom Bracket Height | 303 mm | 278 mm | 278 mm | 278 mm | 278 mm | 278 mm | 278 mm |
| Front Center | 571 mm | 583 mm | 587 mm | 583 mm | 585 mm | 595 mm | 599 mm |
| Rake | 40 mm | 45 mm | 45 mm | 45 mm | 40 mm | 40 mm | 35 mm |
| Trail | 60.3 mm | 64.3 mm | 58.1 mm | 58.1 mm | 57.2 mm | 57.2 mm | 59.4 mm |
| Stack | 460 mm | 497 mm | 505 mm | 516 mm | 539 mm | 558 mm | 585 mm |
| Reach | 380 mm | 379 mm | 389 mm | 387 mm | 391 mm | 395 mm | 401 mm |
| Top Tube Length | 497 mm | 513 mm | 536 mm | 546 mm | 556 mm | 566 mm | 587 mm |
| Seat Tube Angle | 76 ° | 75 ° | 74 ° | 73 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 430 mm | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 72 ° | 71.5 ° | 72.5 ° | 72.5 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 100 mm | 90 mm | 95 mm | 105 mm | 125 mm | 145 mm | 170 mm |
| Chainstay Length | 391 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 960 mm | 982 mm | 986 mm | 982 mm | 984 mm | 994 mm | 998 mm |
| Bottom Bracket Drop | 33 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 699 mm | 743 mm | 759 mm | 774 mm | 795 mm | 815 mm | 842 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

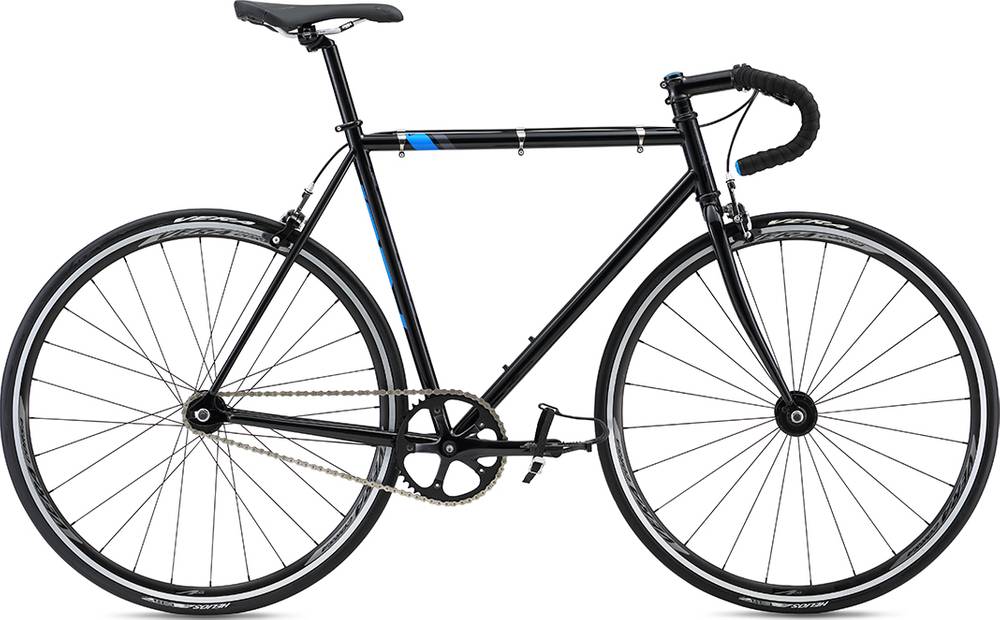

Track is a Fuji Track model. Fuji launched 75 bikes of this model so far. You can get a glimpse at all models from 2016, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Track bikes average price
Our math shows that the average cost of a dependable Track bike is 1503$. However, you could also get a good Track bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Track bikes
Track bikes have an average weight of 7.85 kg (17.31 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
much heavier than average, Track has a weight of 10 kg (22.05 lbs). In short, the average Track bike weight is 27.39% lower than this one.
Overview of components
Fork material
Track has a steel fork, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the bike.
Wheels
The Track 2016 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Track comes with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
