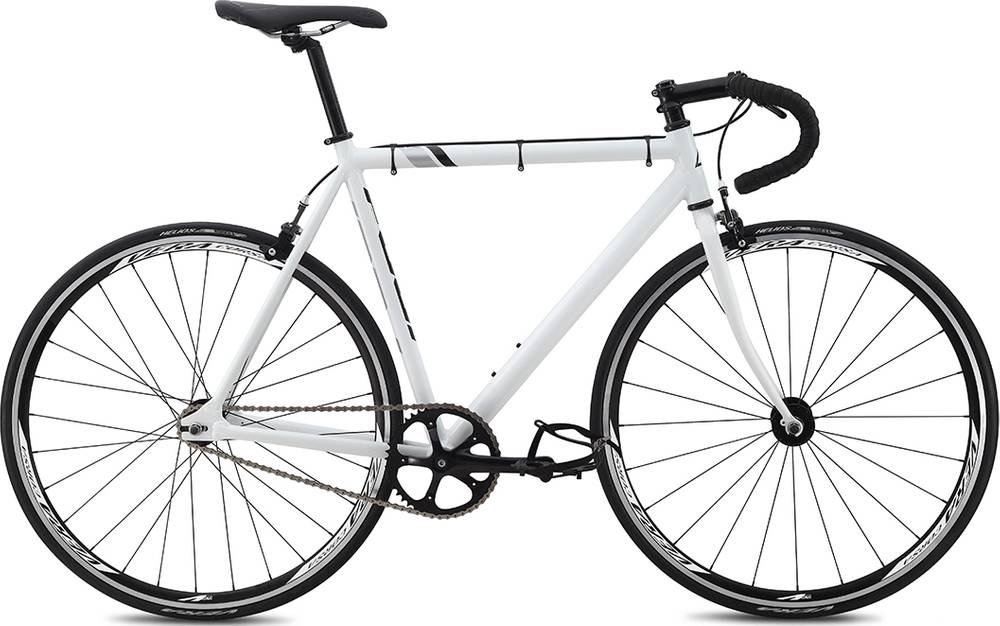

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650c / 700c -
Suspension Rigid -
Drivetrain Single Speed -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A2-SL custom-butted alloy
Suspension Fork
Elios 2, custom-butted Cr-Mo
Drivetrain
Rear Derailleur
N/A
Front Derailleur
N/A
Shift Levers
N/A
Cassette
16T fixed cog w/ lockring
Crank
Fuji, forged alloy, 46T
Bottom Bracket
FSA, sealed cartridge bearing
Chain
KMC Z510
Pedals
Aero road w/ clips and straps
Wheels
Rims
Vera Corsa DPM27, double wall, 24/28h, Formula alloy track hubs
Tires
Vera Helios, 700 x 25, 60tpi
Brakes
Brakes
Alloy dual pivot
Brake Levers
Alloy 2-finger
Cockpit
Stem
Fuji, 3D forged alloy, 26.0mm, +/- 7°
Handlebar
Fuji track, alloy 26.0mm
Headset
FSA 1 1/8" threadless
Seat
Saddle
Oval Concepts R300 w/ steel rails
Seatpost
Fuji alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XSS | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.21 mm | 1.31 mm | 1.3 mm | 1.33 mm | 1.38 mm | 1.41 mm | 1.46 mm |
| Front Center | 571 mm | 583 mm | 587 mm | 583 mm | 585 mm | 595 mm | 599 mm |
| Rake | 40 mm | 45 mm | 45 mm | 40 mm | 40 mm | 40 mm | 35 mm |
| Trail | 57 mm | 64 mm | 57 mm | 63 mm | 56 mm | 56 mm | 58 mm |
| Stack | 460 mm | 497 mm | 505 mm | 516 mm | 539 mm | 558 mm | 585 mm |
| Reach | 380 mm | 379 mm | 389 mm | 387 mm | 391 mm | 395 mm | 401 mm |
| Top Tube Length | 497 mm | 513 mm | 536 mm | 546 mm | 556 mm | 566 mm | 587 mm |
| Seat Tube Angle | 76 ° | 75 ° | 74 ° | 73 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 430 mm | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 72 ° | 71.5 ° | 72.5 ° | 72.5 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 100 mm | 90 mm | 95 mm | 105 mm | 125 mm | 145 mm | 170 mm |
| Chainstay Length | 391 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 960 mm | 982 mm | 986 mm | 982 mm | 984 mm | 994 mm | 998 mm |
| Bottom Bracket Drop | 33 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 699 mm | 743 mm | 759 mm | 774 mm | 795 mm | 815 mm | 842 mm |
| Wheels | 650 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
Track Comp completes the Fuji Track model. Fuji launched 75 bikes of this model so far. Take a sneak peek at all Fuji Track bikes models from 2015, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Track bikes average price
According to our calculations, the average cost of a Track bike that is reliable is 1503$. However, you could also get a good Track bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Track bikes
If we make a quick analysis of the average weight of a Track bike, we get 7.85 kg (17.31 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 9.55 kg (21.05 lbs), the Track Comp model is much heavier than average. In short, the average Track bike weight is 21.66% lower than this one.
Track Comp components
Fork material
The fork on this bike is made out of steel, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the bike.
Wheels
The wheels on Track Comp are the aluminum type. These wheels are less popular than 650b and 700c. However, they are a little lighter than 700c wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
