Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Suspension Rigid -
Drivetrain Single Speed
Sizing
Recommended size guide.
XS
155cm - 168cm
SM
163cm - 174cm
MD
170cm - 181cm
MD/LG
175cm - 187cm
LG
181cm - 193cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji Altair 2 alloy custom butted and aero shaped down and seat tube, Integrated Head Tube
Suspension Fork
FC-770 Fuji Straight Blade Integrated Carbon w/1 1/8" alloy steerer
Drivetrain
Rear Derailleur
none
Front Derailleur
none
Shift Levers
none
Cassette
Fuji 15T Sprocket w/Lockring
Crank
NEW Fuji CGC 3PC Isis Track 144 bolt pattern, 48T
Bottom Bracket
Fuji Sealed Cartridge Isis
Chain
KMC Z-510HX 1/2"X1/8"
Pedals
none
Wheels
Rims
NEW Fuji CGC Aero 30 Double Track
Tires
Continental Ultra Sport, 700 x 23c
Brakes
Brakes
none
Brake Levers
none
Cockpit
Stem
Fuji CGC Forged Alloy 31.8mm
Handlebar
Fuji CGC Track Alloy oversize
Headset
V.P. 1 1/8" Integrated Road, with convex hollow alloy spacer
Seat
Saddle
Prolog Kapp
Seatpost
Fuji CGC Alloy, 300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.28 mm | 1.22 mm | 1.26 mm | 1.29 mm | 1.33 mm | 1.37 mm |
| Bottom Bracket Height | 290 mm | 290 mm | 290 mm | 290 mm | 290 mm | 290 mm |
| Front Center | 563 mm | 583 mm | 573 mm | 583 mm | 592 mm | 602 mm |
| Rake | 45 mm | 45 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Trail | 50.5 mm | 50.5 mm | 52.6 mm | 52.6 mm | 52.6 mm | 49.5 mm |
| Stack | 501 mm | 501 mm | 513 mm | 533 mm | 552 mm | 578 mm |
| Reach | 391 mm | 411 mm | 407 mm | 412 mm | 416 mm | 423 mm |
| Top Tube Length | 528 mm | 544.5 mm | 554.7 mm | 565 mm | 574.7 mm | 594.9 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74 ° | 74 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 74 ° | 74 ° | 74.5 ° | 74.5 ° | 74.5 ° | 75 ° |
| Head Tube Length | 109 mm | 109 mm | 119 mm | 139 mm | 159 mm | 184 mm |
| Chainstay Length | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm |
| Wheelbase | 966 mm | 986 mm | 976 mm | 986 mm | 996 mm | 1005 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 748 mm | 763 mm | 777 mm | 796 mm | 815 mm | 842 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 163 cm | 170 cm | 175 cm | 181 cm | 188 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 200 cm |

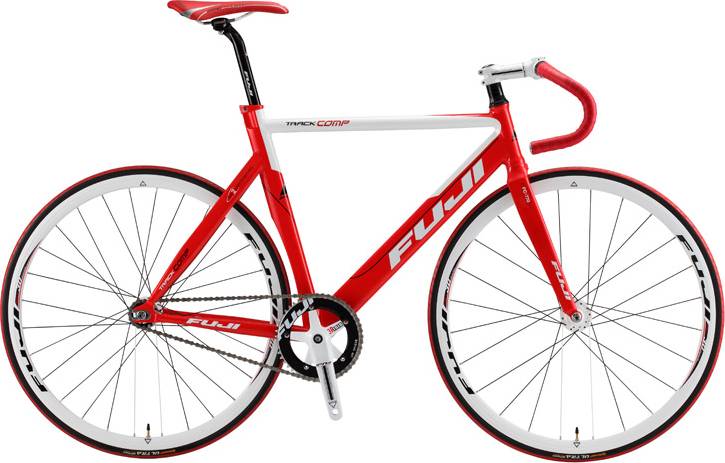

Model Overview
TRACK COMP EURO is a Fuji Track model. Fuji released 75 bikes variations of this model so far. You can get a glimpse at all models from 2010, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Track bikes average price
If you want to purchase a solid Track bike, it is important to know that the average cost is 1503$. However, even though the average price of a Track bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Track bikes
On a deeper look, we notice that the average weight of a Track bike is 7.85 kg (17.31 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Fuji TRACK COMP EURO it’s weighing 7.18 kg (15.83 lbs). At this weight, is a bit lighter than average. In short, the average Track bike weight is 9.33% higher than this one.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The wheels on TRACK COMP EURO are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Sizes
TRACK COMP EURO comes in 6 sizes, that range from 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
