Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Suspension Rigid -
Drivetrain Single Speed -
Brakes Rim
Sizing
Recommended size guide.
XS
155cm - 168cm
SM
163cm - 174cm
MD
170cm - 181cm
MD/LG
175cm - 187cm
LG
181cm - 193cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji Altair 2 alloy custom butted and aero shaped down and seat tube, Integrated Head Tube
Suspension Fork
FC-770 Fuji Straight Blade Integrated Carbon w/1 1/8" alloy steerer
Drivetrain
Rear Derailleur
none
Front Derailleur
none
Shift Levers
none
Cassette
Fuji 15T Sprocket w/Lockring
Crank
NEW Fuji CGC 3PC Isis Track 144 bolt pattern, 48T
Bottom Bracket
Fuji Sealed Cartridge Isis
Chain
KMC Z-510HX 1/2"X1/8"
Pedals
none
Wheels
Rims
NEW Fuji CGC Aero 30 Double Track
Tires
Continental Ultra Sport, 700 x 23c
Brakes
Brakes
ProMax RC-453 Alloy Rear only
Brake Levers
ProMax 249A Top Mount Alloy
Cockpit
Stem
Fuji CGC Forged Alloy 31.8mm
Handlebar
Fuji CGC Track Alloy oversize
Headset
V.P. 1 1/8" Integrated Road, with convex hollow alloy spacer
Seat
Saddle
Prolog Kapp
Seatpost
Fuji CGC Alloy, 300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.28 mm | 1.22 mm | 1.26 mm | 1.29 mm | 1.33 mm | 1.37 mm |
| Bottom Bracket Height | 290 mm | 290 mm | 290 mm | 290 mm | 290 mm | 290 mm |
| Front Center | 563 mm | 583 mm | 573 mm | 583 mm | 592 mm | 602 mm |
| Rake | 45 mm | 45 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Trail | 50.5 mm | 50.5 mm | 52.6 mm | 52.6 mm | 52.6 mm | 49.5 mm |
| Stack | 501 mm | 501 mm | 513 mm | 533 mm | 552 mm | 578 mm |
| Reach | 391 mm | 411 mm | 407 mm | 412 mm | 416 mm | 423 mm |
| Top Tube Length | 528 mm | 544.5 mm | 554.7 mm | 565 mm | 574.7 mm | 594.9 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74 ° | 74 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 74 ° | 74 ° | 74.5 ° | 74.5 ° | 74.5 ° | 75 ° |
| Head Tube Length | 109 mm | 109 mm | 119 mm | 139 mm | 159 mm | 184 mm |
| Chainstay Length | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm |
| Wheelbase | 966 mm | 986 mm | 976 mm | 986 mm | 996 mm | 1005 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 748 mm | 763 mm | 777 mm | 796 mm | 815 mm | 842 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 163 cm | 170 cm | 175 cm | 181 cm | 188 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 200 cm |
About this model

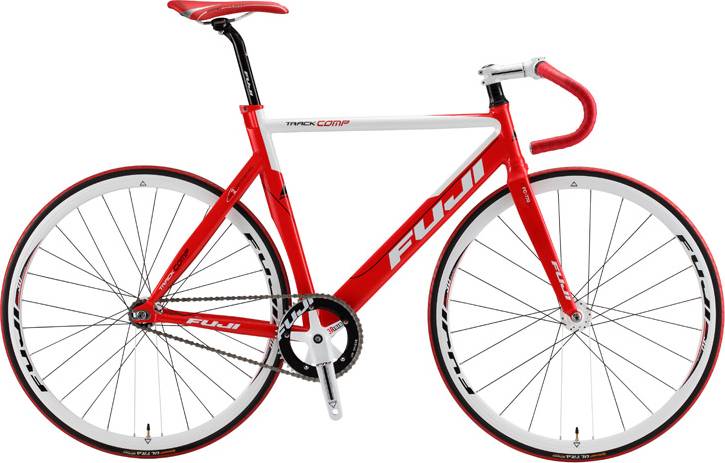

TRACK COMP USA completes the Fuji Track model. There are 75 bikes that carry this model name. You can easily view all of the Fuji Track bikes models from 2010, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Track bikes average price
If you want to purchase a solid Track bike, it is important to know that the average cost is 1503$. However, this doesn’t mean that if you spend less money on a Track bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Track bikes average weight
The average weight for Track bikes is 7.85 kg (17.31 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
slightly heavier than average, TRACK COMP USA has a weight of 7.87 kg (17.35 lbs). In other words, this model is 0.25% heavier than the average Track bike.
TRACK COMP USA components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The TRACK COMP USA 2010 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji TRACK COMP USA has Rim brakes installed. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
