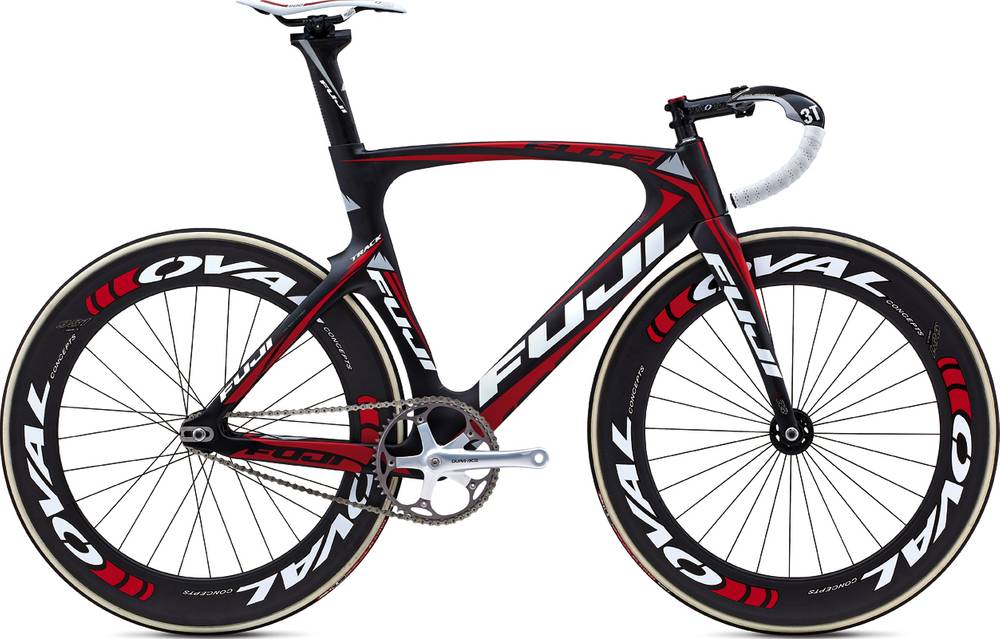

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace -
Suspension Rigid -
Drivetrain Single Speed
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C10 ultra high-modulus aero carbon tubing, integrated seat clamp, integrated head tube w/ 1 1/2" lower
Suspension Fork
FC-330 Fuji Track carbon aero monocoque w/ 1 1/8" - 1 1/2" carbon steerer
Drivetrain
Rear Derailleur
N/A
Front Derailleur
N/A
Shift Levers
N/A
Cassette
Shimano Dura Ace, 15T
Crank
Shimano Dura Ace Track, 50T
Bottom Bracket
Shimano Dura Ace Track
Chain
KMC Z510HX
Pedals
N/A
Wheels
Rims
Oval 981T tubular track wheels
Tires
Vittoria Pista Evo CS, 320 tpi, 700c x 22mm, tubular
Brakes
Brakes
N/A
Brake Levers
N/A
Cockpit
Stem
Oval 713 3D-forged 7050 alloy, 31.8mm, +/- 6 degrees
Handlebar
3T SCATTO carbon
Headset
FSA Orbit C-40, 1 1/8" upper - 1 1/2" lower, integrated w/ carbon top cover
Seat
Saddle
Oval R900 w/ carbon rails
Seatpost
Oval 931 aero carbon multi-position
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46.6cm | 48.6cm | 51.6cm | 53.6cm | 54.2cm | 58.6cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.29 mm | 1.24 mm | 1.24 mm | 1.25 mm | 1.25 mm | 1.24 mm |
| Front Center | 545 mm | 560 mm | 565 mm | 580 mm | 595 mm | 615 mm |
| Rake | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Stack | 486 mm | 486 mm | 497 mm | 512 mm | 526 mm | 541 mm |
| Reach | 377 mm | 392 mm | 400 mm | 411 mm | 422 mm | 437 mm |
| Top Tube Length | 508 mm | 523 mm | 543 mm | 558 mm | 573 mm | 593 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 466 mm | 486 mm | 516 mm | 536 mm | 542 mm | 586 mm |
| Head Tube Angle | 74 ° | 74 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 125 mm | 140 mm | 155 mm |
| Chainstay Length | 376 mm | 376 mm | 376 mm | 376 mm | 376 mm | 376 mm |
| Wheelbase | 916 mm | 931 mm | 937 mm | 952 mm | 967 mm | 987 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 764 mm | 774 mm | 794 mm | 812 mm | 826 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
Track Elite completes the Fuji Track model. Fuji launched 75 bikes of this model so far. You can easily view all of the Fuji Track bikes models from 2013, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Track bikes
If you want an acceptable Track bike you should know that the average price is 1503$. However, even though the average price of a Track bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Track Elite components
Fork material
Track Elite has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When it comes to wheels, the Track Elite bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
