Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Suspension Rigid -
Drivetrain Single Speed
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji Elios 2 custom butted Cro-Moly with outer butted seat tube, Double water bottle mounts
Suspension Fork
Fuji 1 1/8" Custom Triple Butted Cro-Moly, crown drilled for front brake
Drivetrain
Rear Derailleur
none
Front Derailleur
none
Shift Levers
none
Cassette
15T Fixed w/lockring
Crank
RPM CFM-100 Forged Alloy, 48T
Bottom Bracket
Sealed cartridge bearing ST
Chain
KMC Z-410
Pedals
Wellgo Road w/clips and straps
Wheels
Front Hub
Formula Alloy Track, 32H
Rear Hub
Formula Alloy Track, 32H Flip Flop
Rims
Alex RPD-15 Double Wall Road Rims, 32H
Spokes
14G Stainless Steel
Tires
Kenda K-152 Road Tire, 700 X 25c , 650 x 23c for 43cm
Brakes
Brakes
none
Brake Levers
none
Cockpit
Stem
Fuji Pro AL forged , +/-7 degree
Handlebar
Fuji 6061 Butted Road, 26mm Anatomical Drops
Headset
Ritchey LB 1 1/8" Threadless
Seat
Saddle
Fuji Superlight Racing
Seatpost
Fuji Micro Adjust alloy, 250mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.15 mm | 1.18 mm | 1.24 mm | 1.32 mm | 1.35 mm | 1.4 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm | 282 mm | 282 mm | 282 mm |
| Front Center | 578 mm | 572 mm | 568 mm | 580 mm | 589 mm | 594 mm |
| Rake | 45 mm | 45 mm | 40 mm | 40 mm | 40 mm | 35 mm |
| Trail | 60.4 mm | 66 mm | 60 mm | 59 mm | 59 mm | 61 mm |
| Stack | 453 mm | 462 mm | 499 mm | 532 mm | 551 mm | 578 mm |
| Reach | 392.9 mm | 392 mm | 402 mm | 404 mm | 408 mm | 414 mm |
| Top Tube Length | 525 mm | 545 mm | 555 mm | 565 mm | 575 mm | 595 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 71.5 ° | 72.5 ° | 72.5 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 90 mm | 95 mm | 105 mm | 125 mm | 145 mm | 170 mm |
| Chainstay Length | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm |
| Wheelbase | 984 mm | 977 mm | 973 mm | 985 mm | 995 mm | 1000 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 749 mm | 766 mm | 780 mm | 802 mm | 821 mm | 848 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |

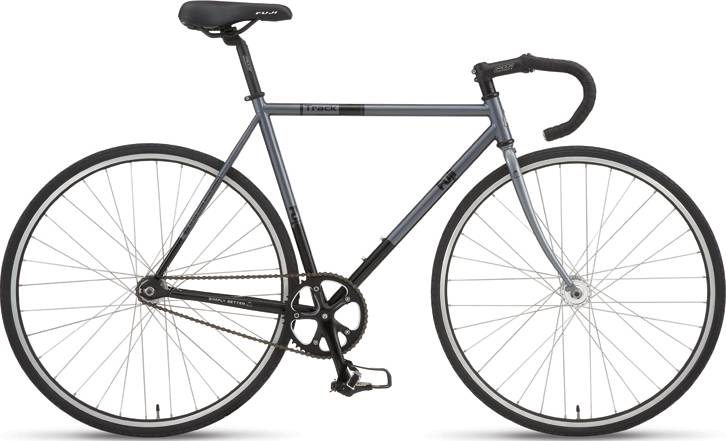

About this model
Track (Europe) completes the Fuji Track model. Fuji launched 75 bikes of this model so far. Take a sneak peek at all Fuji Track bikes models from 2009, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Track bikes
Our math shows that the average cost of a dependable Track bike is 1503$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Track bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Track (Europe) components
Fork material
The fork is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels
When it comes to wheels, the Track (Europe) bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Sizes
Fuji Track (Europe) bike has 6 sizes, in the range of 155 cm – 191 cm (5.09 ft – 6.27 ft). In short, it won’t be difficult to find the right one for you.
