Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace -
Suspension Rigid -
Drivetrain Single Speed
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High Modulus D-6 carbon w/Aero shaped tubes, IST (Integrated Seat Tube), Integrated Aluminum cupped head tube, Double water bottle mounts.
Suspension Fork
FC-440 Fuji Monocoque Straight Blade Integrated Carbon w/1 1/8" carbon steerer
Drivetrain
Rear Derailleur
none
Front Derailleur
none
Shift Levers
none
Cassette
Shimano Dura Ace 15T CNC Sprocket w/Lockring
Crank
Shimano Dura Ace Track 3pc, 144 bolt pattern, 49T
Bottom Bracket
Shimano Dura Ace
Chain
KMC K-710SL 1/2"*1/8
Wheels
Rims
Oval W-985T Carbon Rim w/ Alloy Braking Surface, w/Flip Flop Hubs
Tires
Vittoria Diamante Pro Light II, 700x23c, Kevlar Bead-Folding
Brakes
Brakes
none
Brake Levers
none
Cockpit
Stem
Oval R-900 Carbon Alloy matrix, +/-6 degrees
Handlebar
Oval R-900T Carbon Pista
Headset
Cane Creek IS-8i 1 1/8" Integrated Road, with convex interlock carbon spacer
Seat
Saddle
Oval SR-900 Sweep w/Carbon rails
Seatpost
Fuji PGC Carbon clamp for IST (Integrated Seat Tube)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.31 mm | 1.24 mm | 1.21 mm | 1.2 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm | 295 mm | 295 mm |
| Front Center | 549 mm | 554 mm | 567 mm | 583 mm | 595 mm |
| Rake | 35 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Trail | 45 mm | 50 mm | 66 mm | 58 mm | 77 mm |
| Stack | 500.5 mm | 503.8 mm | 509.9 mm | 509.6 mm | 534 mm |
| Reach | 361 mm | 383.9 mm | 412 mm | 420 mm | 443.5 mm |
| Top Tube Length | 512 mm | 527 mm | 547 mm | 562 mm | 577 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 640 mm | 660 mm | 680 mm | 700 | 720 mm |
| Head Tube Angle | 73.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Head Tube Length | 110 mm | 115 mm | 120 mm | 120 mm | 145 mm |
| Chainstay Length | 390 mm | 390 mm | 390 mm | 390 mm | 390 mm |
| Wheelbase | 935 mm | 940 mm | 953 mm | 969 mm | 981 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 769 mm | 778 mm | 785 mm | 794 mm | 799 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

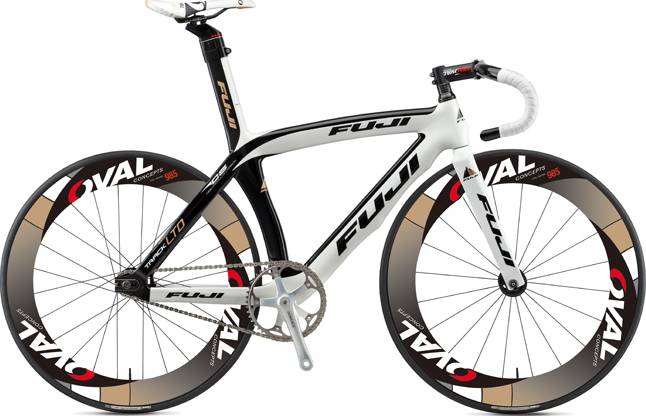

Track LTD belongs to the Fuji Track model. There are 75 bikes that carry this model name. You can easily view all of the Fuji Track bikes models from 2011, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Track bikes
If you want to purchase a solid Track bike, it is important to know that the average cost is 1503$. However, you could also get a good Track bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Track bikes average weight
The average weight for Track bikes is 7.85 kg (17.31 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Track LTD weighs 6.9 kg (15.21 lbs) and is considerably lighter than the average. In other words, this model is 13.77% lighter than the average Track bike.
Track LTD components
Fork material
Track LTD has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Fuji Track LTD 2011, has a 700c carbon model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
