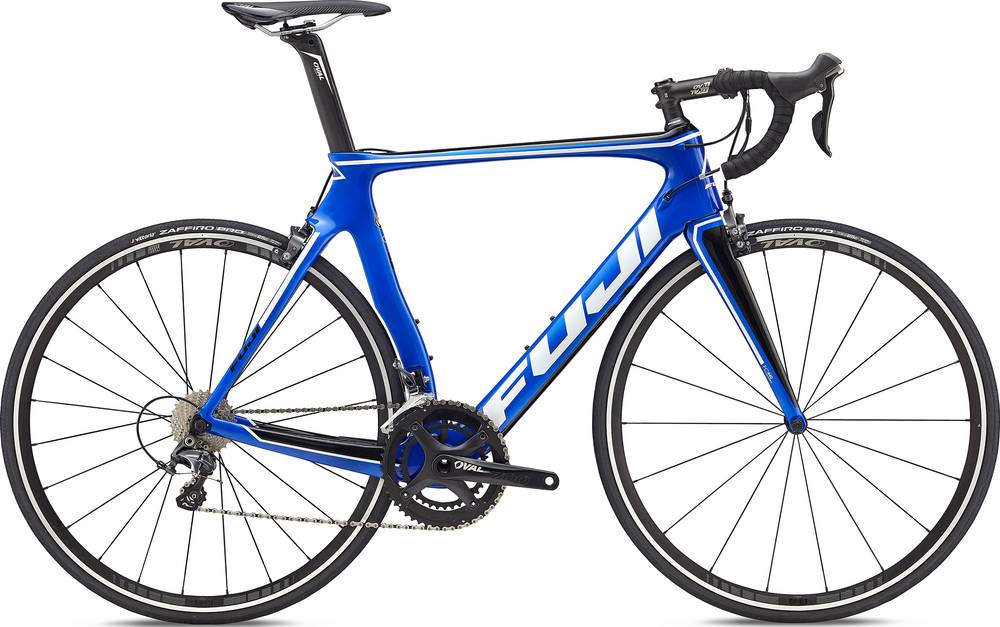

Fuji Transonic 2.3 2018
2018 Road
Estimate price |
2,499$
Weight | 7.95 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, Praxis -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
XXS
157cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
188cm - 197cm
XXL
194cm - 204cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C5 carbon, integrated head tube w/ 1 1/2" lower, PF30 BB, double water bottle mounts
Suspension Fork
FC-440 carbon w/ tapered carbon steerer
Drivetrain
Rear Derailleur
Shimano New Ultegra, 11-speed
Front Derailleur
Shimano New Ultegra, braze-on mount
Shift Levers
Shimano New Ultegra, STI, 11-speed
Cassette
Shimano New Ultegra, 11-28T, 11-speed
Crank
Oval Concepts 700, hollow forged 6066 arms, M30 spindle, forged Praxis 52/36T rings
Bottom Bracket
Praxis conversion bottom bracket
Chain
KMC X11, 11-speed w/ MissingLink
Pedals
N/A
Wheels
Rims
Oval Concepts 527, 700c 18/24H rims
Tires
Vittoria Zaffiro Pro, 700 x 25c, 60tpi, folding
Brakes
Brakes
Shimano New Ultegra direct-mount
Brake Levers
Shimano New Ultegra, STI
Cockpit
Stem
Oval Concepts 313, 3D-forged 6061 stem body, +/-7°
Handlebar
Oval Concepts 310 Ergo, 6061 alloy, 31.8mm clamp, 133mm drop, 4° sweep
Headset
FSA, 1 1/8" upper - 1 1/2" lower, integrated
Seat
Saddle
Oval Concepts 438, steel rail
Seatpost
Transonic aero carbon, 300mm (46-52cm), 350mm (54-61cm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.31 mm | 1.29 mm | 1.31 mm | 1.39 mm | 1.43 mm | 1.42 mm | 1.42 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 585 mm | 587 mm | 601 mm | 579 mm | 591 mm | 608 mm | 627 mm |
| Rake | 52 mm | 52 mm | 52 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 62.6 mm | 57.6 mm | 57.6 mm | 57.8 mm | 57.8 mm | 57.8 mm | 57.8 mm |
| Stack | 501 mm | 503 mm | 522 mm | 544 mm | 563 mm | 583 mm | 602 mm |
| Reach | 383 mm | 390 mm | 398 mm | 392 mm | 395 mm | 410 mm | 424 mm |
| Top Tube Length | 511 mm | 521 mm | 536 mm | 551 mm | 566 mm | 586 mm | 606 mm |
| Seat Tube Angle | 75.5 ° | 75.25 ° | 75 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 70.75 ° | 71.5 ° | 71.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm | 135 mm | 155 mm | 175 mm | 195 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm |
| Wheelbase | 986 mm | 988 mm | 1002 mm | 980 mm | 992 mm | 1009 mm | 1029 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 725 mm | 743 mm | 768 mm | 788 mm | 807 mm | 826 mm | 850 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 188 cm | 194 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | 204 cm |
Model Overview
Transonic 2.3 is a Fuji Transonic model. 58 bikes variations carry this model name so far. You can easily view all of the Fuji Transonic bikes models from 2018, here.
Model range prices
Fuji Transonic 2.5 2018 is the most affordable bike of this model and has a price of 1999$. On the other hand, Fuji Transonic 1.3 2018, is the most expensive and costs 5499$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Aero bikes
According to our calculations, the average cost of an Aero bike that is reliable is 4211$. However, this doesn’t mean that if you spend less money on an Aero bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2018 for 2499$. Comparing the average cost of an Aero bike to this one, you will see that Transonic 2.3 price is 68.51% lower.
Average weight for Aero bikes
Aero bikes weigh an average of 7.34 kg (16.18 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 7.95 kg (17.53 lbs), Fuji bike is a bit heavier than average. In short, the average Aero bike weight is 8.31% lower than this one.
Overview of components
Fork material
Transonic 2.3 has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the Transonic 2.3 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji Transonic 2.3 is equipped with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
Sizes
Fuji Transonic 2.3 bike has 7 sizes, in the range of 157 cm – 204 cm (5.15 ft – 6.69 ft). In conclusion, finding one for you shouldn’t be a problem.
