Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
XXS
157cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
188cm - 197cm
XXL
194cm - 204cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C5 high-modulus carbon, integrated head tube w/ 1 1/2" lower, PF30, double water bottle mounts
Suspension Fork
FC-440 carbon w/ tapered carbon steerer
Drivetrain
Rear Derailleur
Shimano Ultegra, 11-speed
Front Derailleur
Shimano Ultegra, braze-on mount
Shift Levers
Shimano Ultegra, STI, 11-speed
Cassette
Shimano 105, 11-28T, 11-speed
Crank
Oval Concepts 520, forged 6066 arms, 52/36T
Bottom Bracket
Praxis conversion bottom bracket
Chain
KMC X11L w/ Missing Link, 11-speed
Pedals
N/A
Wheels
Rims
Oval 327 aero alloy clincher, 20 / 24h
Tires
Vittoria Zaffiro Pro Slick, 700 x 25, 60tpi, folding
Brakes
Brakes
Shimano 105 direct mount
Brake Levers
Shimano Ultegra, STI
Cockpit
Stem
Oval Concepts 313, 6061 3D-forged alloy, 31.8mm, +/- 7°
Handlebar
Oval Concepts 310, butted 6061 alloy, 31.8mm
Headset
FSA, 1 1/8" upper - 1 1/2" lower, integrated
Seat
Saddle
Oval Concepts R500 w/ chromoly hollow rails
Seatpost
Transonic aero carbon, 300mm (46-52cm), 350mm (54-61cm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.31 mm | 1.29 mm | 1.31 mm | 1.39 mm | 1.43 mm | 1.42 mm | 1.42 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 585 mm | 587 mm | 601 mm | 579 mm | 591 mm | 608 mm | 627 mm |
| Rake | 52 mm | 52 mm | 52 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 62.6 mm | 57.6 mm | 57.6 mm | 57.8 mm | 57.8 mm | 57.8 mm | 57.8 mm |
| Stack | 501 mm | 503 mm | 522 mm | 544 mm | 563 mm | 583 mm | 602 mm |
| Reach | 383 mm | 390 mm | 398 mm | 392 mm | 395 mm | 410 mm | 424 mm |
| Top Tube Length | 511 mm | 521 mm | 536 mm | 551 mm | 566 mm | 586 mm | 606 mm |
| Seat Tube Angle | 75.5 ° | 75.3 ° | 75 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 70.75 ° | 71.5 ° | 71.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm | 135 mm | 155 mm | 175 mm | 195 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm |
| Wheelbase | 986 mm | 988 mm | 1002 mm | 980 mm | 992 mm | 1009 mm | 1029 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 725 mm | 743 mm | 768 mm | 788 mm | 807 mm | 826 mm | 850 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 188 cm | 194 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | 204 cm |
About this model

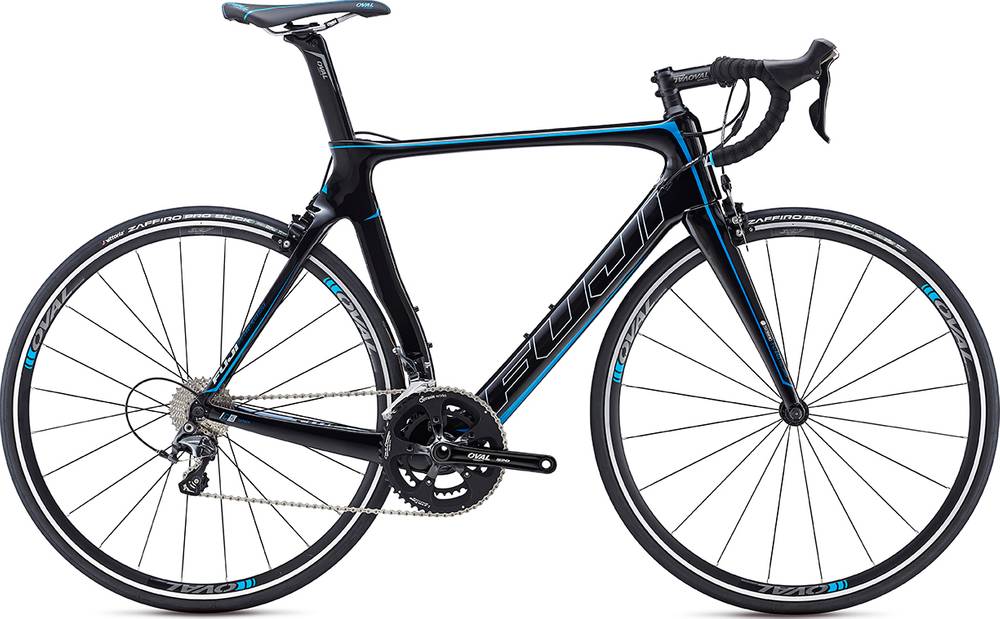

Transonic 2.5 is a Fuji Transonic model. 58 bikes variations carry this model name so far. Check out the entire range from 2016 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Aero bikes
If you want an acceptable Aero bike you should know that the average price is 4211$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Aero bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Aero bikes
If we make a quick analysis of the average weight of an Aero bike, we get 7.34 kg (16.18 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Fuji Transonic 2.5 it’s weighing 8.33 kg (18.36 lbs). At this weight, is considerably heavier than average. In short, the average Aero bike weight is 13.49% lower than this one.
Transonic 2.5 components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
As for the wheels, Fuji Transonic 2.5 2016, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Transonic 2.5 has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
Sizes
There are 7 sizes available for this model. Rider height can be anywhere between 157 cm – 204 cm (5.15 ft – 6.69 ft). In conclusion, you won’t have a problem finding one that suits you.
