Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Deore, Acera -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
150cm - 156cm
SM
154cm - 160cm
MD
157cm - 163cm
LG
160cm - 167cm
XL
164cm - 171cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy
Suspension Fork
SR NEX suspension w/ remote hydraulic lockout, 63mm travel
Drivetrain
Rear Derailleur
Shimano Deore
Front Derailleur
Shimano Acera
Shift Levers
Shimano Altus M2010, EZ Fire, 3 x 9-speed
Cassette
Shimano Alivio, 11-32T
Crank
Shimano Alivio, 48/36/26T w/ chainguard
Bottom Bracket
Shimano, external, sealed bearing
Chain
KMC X9
Pedals
Alloy platform
Wheels
Rims
WTB SX19 double wall, 32h, 14g stainless spokes
Tires
Kenda Drumlin, 700 x 40c, w/ K-Shield flat protection
Brakes
Brakes
Shimano M200 hydraulic disc, 160mm rotors
Brake Levers
Shimano M200
Cockpit
Stem
Oval Concepts 313, 3D-forged alloy, +/-7°
Handlebar
Oval Concepts 200 alloy, 15mm rise
Grips
Velo comfort sport, lock on
Headset
FSA, 1-1/8" semi-integrated
Seat
Saddle
Selle Royale Milo+
Seatpost
Oval Concepts 300 alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.63 mm | 1.59 mm | 1.65 mm | 1.64 mm | 1.65 mm |
| Front Center | 609 mm | 628 mm | 629 mm | 646 mm | 661 mm |
| Rake | 43.8 mm | 43.8 mm | 43.8 mm | 43.8 mm | 43.8 mm |
| Trail | 80 mm | 81 mm | 77 mm | 77 mm | 77 mm |
| Stack | 591 mm | 601 mm | 621 mm | 636 mm | 654 mm |
| Reach | 362 mm | 378 mm | 377 mm | 388 mm | 397 mm |
| Top Tube Length | 549 mm | 568 mm | 586 mm | 602 mm | 617 mm |
| Seat Tube Angle | 72.5 ° | 73 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Seat Tube Length | 380 mm | 440 mm | 482 mm | 533 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 155 mm | 175 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1059 mm | 1078 mm | 1079 mm | 1096 mm | 1111 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 754 mm | 798 mm | 830 mm | 848 mm | 881 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 154 cm | 157 cm | 160 cm | 164 cm |
| Rider Max Height | 156 cm | 160 cm | 163 cm | 167 cm | 171 cm |
Model Overview

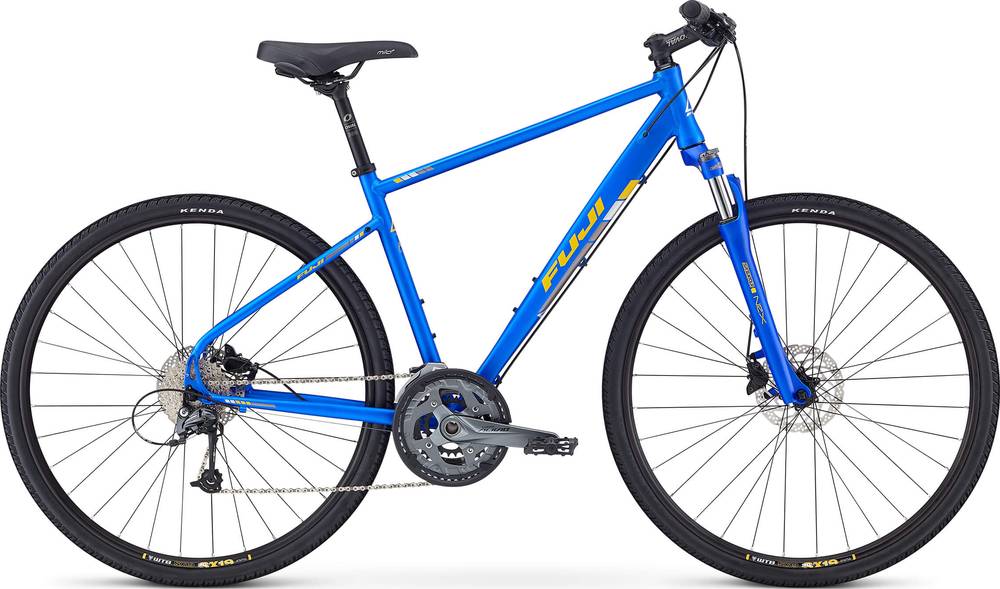

Traverse 1.1 completes the Fuji Traverse model. Fuji released 83 bikes variations of this model so far. You can easily view all of the Fuji Traverse bikes models from 2019, here.
Model range prices
Fuji Traverse 1.7 2019 is the most economical model, with a starting price of 429$. Fuji Traverse 1.3 ST 2019 on the other hand costs 799$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Hybrid bikes
According to our calculations, the average cost of a Hybrid bike that is reliable is 562$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 699$. Doing a quick comparison, we notice that Traverse 1.1 price is 24.38% higher than the average cost of a Hybrid bike.
Overview of components
Fork
Fuji Traverse 1.1 2019 bike is equipped with the SunTour NEX fork, and has 63mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When leaving the production line, the Traverse 1.1 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji Traverse 1.1 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 150 cm – 171 cm (4.92 ft – 5.61 ft). In short, you can easily find one that suits you.
