Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset XT, Shimano -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy w/ PowerCurve down tube, 1 1/8" semi-integrated headtube
Suspension Fork
SR NEX suspension w/ hydrualic lockout, 63mm travel
Drivetrain
Rear Derailleur
Shimano Deore XT, 10-speed
Front Derailleur
Shimano LX
Shift Levers
Shimano Deore, Rapid Fire w/ optical gear display, 10-speed
Cassette
Shimano Deore, 11-34T, 10-speed
Crank
Shimano T551 LX, 48/36/26T w/ chainguard
Bottom Bracket
Shimano, external, sealed bearing
Chain
KMC X10 w/ MissingLink, 10-speed
Pedals
Alloy platform
Wheels
Rims
Vera Terra DPD22 rims 32h, stainless eyelets, Shimano M435 front / M435 rear CL hubs, stainless spokes
Tires
Vera EOS, 700 x 38c, 30 tpi w/ Phalanx flat protection
Brakes
Brakes
Shimano M447, Centerlock hydrualic disc brakes, 160mm rotor
Brake Levers
Shimano BL505, hydrualic disc
Cockpit
Stem
Oval Concepts 313, 6061 3D-forged alloy, 31.8mm, +/- 7°
Handlebar
Oval Concepts 200, 6061 alloy, 31.8mm, 9° sweep, 30mm rise
Headset
FSA, 1 1/8" semi-integrated, caged bearings
Seat
Saddle
Oval Concepts P300 w/ steel rails
Seatpost
Oval Concepts 300, 3D-forged 6061 alloy, 31.6mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Bottom Bracket Height | 298 mm | 298 mm | 298 mm | 298 mm | 298 mm | 298 mm |
| Top Tube Length | 549 mm | 568 mm | 587 mm | 597 mm | 607 mm | 627 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Seat Tube Length | 380 mm | 440 mm | 482 mm | 520 mm | 560 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1044 mm | 1063 mm | 1065 mm | 1077 mm | 1086 mm | 1107 mm |
| Standover Height | 721 mm | 739 mm | 759 mm | 793 mm | 827 mm | 857 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

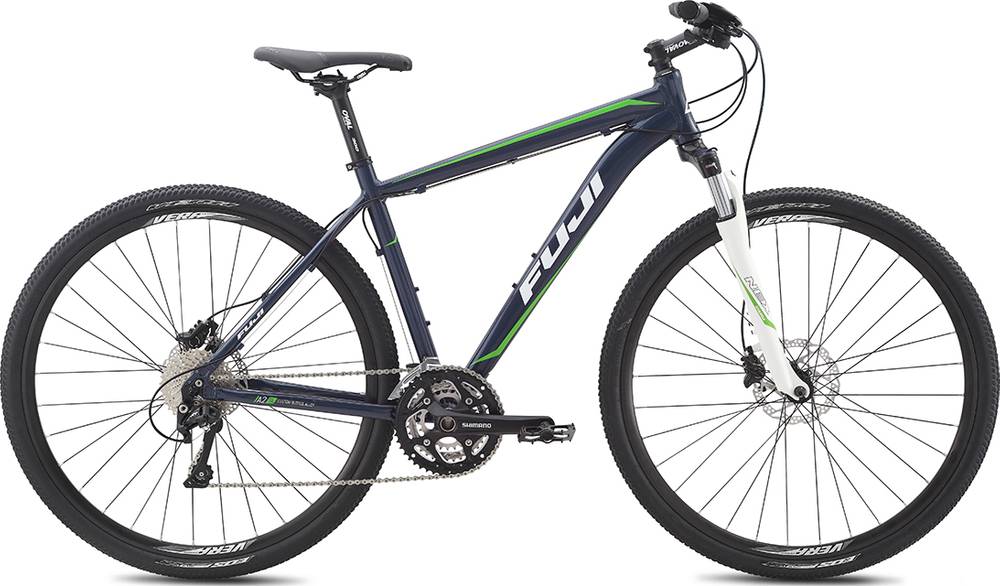

Traverse 1.1 Disc is part of the Fuji Traverse model. Fuji launched 83 bikes of this model so far. You can easily view all of the Fuji Traverse bikes models from 2015, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Hybrid bikes average price
Our math shows that the average cost of a dependable Hybrid bike is 562$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Hybrid bikes
If we make a quick analysis of the average weight of a Hybrid bike, we get 13.85 kg (30.53 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 13.84 kg (30.51 lbs), Fuji bike is slightly lighter than average. In other words, this model is 0.07% lighter than the average Hybrid bike.
Overview of components
Fork
The Traverse 1.1 Disc comes factory-installed with the SunTour NEX fork. This has a travel range of 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the Traverse 1.1 Disc model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji Traverse 1.1 Disc has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
