Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Deore, Acera -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy w/ PowerCurve down tube, 1 1/8" semi-integrated headtube
Suspension Fork
SR NEX suspension w/ hydrualic lockout, 63mm travel
Drivetrain
Rear Derailleur
Shimano Deore, 9-speed
Front Derailleur
Shimano Acera
Shift Levers
Shimano Acera, Rapid Fire w/ optical gear display, 9-speed
Cassette
Shimano Acera, 11-32T, 9-speed
Crank
Shimano Acera, Octalink, 48/36/26T w/ chainguard
Bottom Bracket
Shimano Octalink, sealed cartridge
Chain
KMC X9 w/ MissingLink, 9-speed
Pedals
Alloy platform
Wheels
Rims
Vera Terra DPD22 rims 32h, stainless eyelets, Shimano RM66 front / RM66 rear CL hubs, stainless spokes
Tires
Vera EOS, 700 x 38c, 30 tpi w/ Phalanx flat protection
Brakes
Brakes
Shimano M355, Centerlock hydrualic disc brakes, 160mm rotor
Brake Levers
Shimano M355, hydrualic disc
Cockpit
Stem
Oval Concepts 313, 6061 3D-forged alloy, 31.8mm, +/- 9°
Handlebar
Oval Concepts 200, 6061 alloy, 31.8mm, 9° sweep, 30mm rise
Headset
FSA, 1 1/8" semi-integrated, caged bearings
Seat
Saddle
Oval Concepts P300 w/ steel rails
Seatpost
Oval Concepts 300, 3D-forged 6061 alloy, 31.6mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Bottom Bracket Height | 298 mm | 298 mm | 298 mm | 298 mm | 298 mm | 298 mm |
| Top Tube Length | 549 mm | 568 mm | 587 mm | 597 mm | 607 mm | 627 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Seat Tube Length | 380 mm | 440 mm | 482 mm | 520 mm | 560 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1044 mm | 1063 mm | 1065 mm | 1077 mm | 1086 mm | 1107 mm |
| Standover Height | 721 mm | 739 mm | 759 mm | 793 mm | 827 mm | 857 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

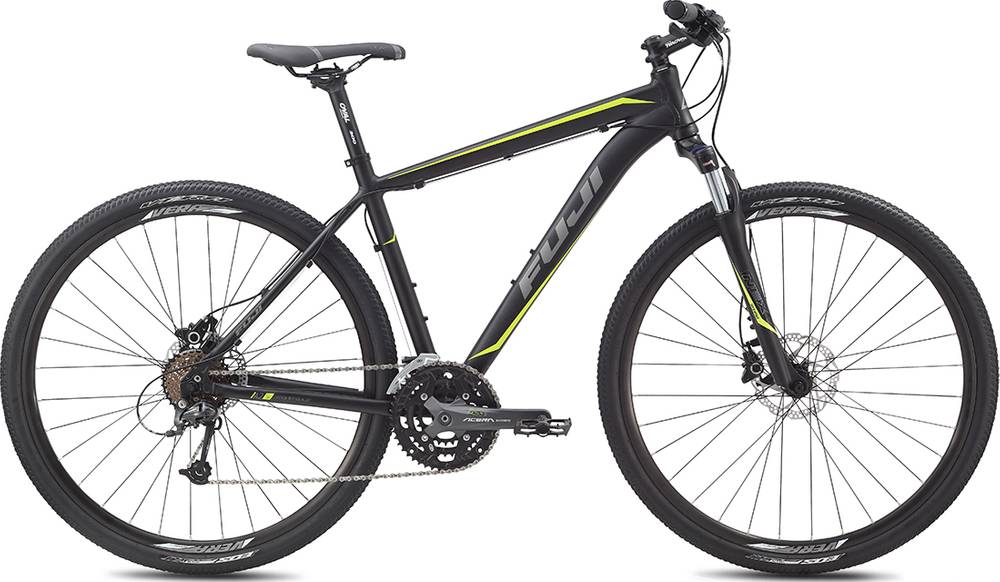

Traverse 1.3 Disc belongs to the Fuji Traverse model. Fuji released 83 bikes variations of this model so far. Take a sneak peek at all Fuji Traverse bikes models from 2015, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Hybrid bikes
Our math shows that the average cost of a dependable Hybrid bike is 562$. However, even though the average price of a Hybrid bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
The SunTour NEX is included from the factory. It has a travel distance of 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The Traverse 1.3 Disc 2015 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Traverse 1.3 Disc comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
