Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
152cm - 165cm
MD
163cm - 179cm
LG
173cm - 180cm
XL
175cm - 183cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy
Suspension Fork
SR NEX suspension, 63mm travel
Drivetrain
Rear Derailleur
Shimano Tourney
Front Derailleur
Shimano Tourney
Shift Levers
Shimano Tourney EF41, EZ Fire, 3 x 7-speed
Cassette
Shimano Tourney HG200, 14-32T
Crank
Shimano Tourney, 48/38/28T w/ chainguard
Bottom Bracket
Sealed cartridge
Chain
KMC HV500
Pedals
Resin platform
Wheels
Rims
Weinmann double wall, 32h, 14g spokes
Tires
Kenda Drumlin, 700 x 40c
Brakes
Brakes
Tektro M280 mechanical disc, 160mm/140mm rotors
Brake Levers
Shimano EF41
Cockpit
Stem
Oval Concepts, forged aluminum, 20°
Handlebar
Steel, 30mm rise
Grips
Velo comfort sport
Headset
1-1/8" semi-integrated
Seat
Saddle
Comfort sport
Seatpost
Oval Concepts alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.77 mm | 1.71 mm | 1.76 mm | 1.75 mm |
| Front Center | 612 mm | 624 mm | 607 mm | 617 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 79 mm | 78 mm | 73 mm | 73 mm |
| Stack | 624 mm | 624 mm | 629 mm | 638 mm |
| Reach | 353 mm | 364 mm | 358 mm | 365 mm |
| Top Tube Length | 545 mm | 556 mm | 563 mm | 573 mm |
| Seat Tube Angle | 73 ° | 73 ° | 72 ° | 72 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 71 ° |
| Head Tube Length | 145 mm | 145 mm | 145 mm | 155 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1048 mm | 1060 mm | 1043 mm | 1053 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 703 mm | 713 mm | 723 mm | 737 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 163 cm | 173 cm | 175 cm |
| Rider Max Height | 165 cm | 179 cm | 180 cm | 183 cm |
About this model

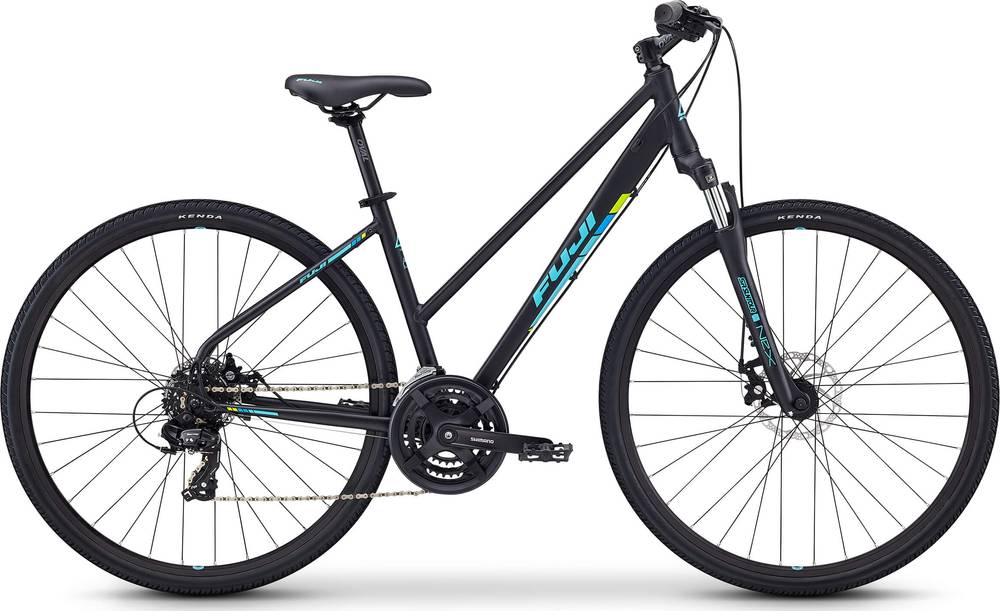

Traverse 1.7 ST belongs to the Fuji Traverse model. 83 bikes variations carry this model name so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
The most economical model, the Fuji Traverse 1.7 ST 2020 has a starting price of 429$. Fuji Traverse 1.1 2020 on the other hand is the most expensive at 699$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid bikes
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, you could also get a good Hybrid bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 429$. Doing a quick comparison, we notice that Traverse 1.7 ST price is 31% lower than the average cost of a Hybrid bike.
Overview of components
Fork
Fuji Traverse 1.7 ST 2020 bike is equipped with the SunTour NEX fork, and has 63mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the Traverse 1.7 ST model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
Fuji Traverse 1.7 ST bike has 4 sizes, in the range of 152 cm – 183 cm (4.99 ft – 6 ft). In conclusion, finding one for you shouldn’t be a problem.
