Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy w/ PowerCurve down tube, 1-1/8" semi-integrated headtube
Suspension Fork
HL 189 suspension, adjustable, 63mm travel
Drivetrain
Rear Derailleur
Shimano Tourney TX35, 7-speed
Front Derailleur
Shimano Tourney
Shift Levers
Shimano EF41, EZ Fire, 7-speed
Cassette
14-34T freewheel, 7-speed
Crank
Alloy, 48/38/28T w/ chainguard
Bottom Bracket
Sealed cartridge
Chain
KMC HV500, 7-speed
Pedals
Resin platform
Wheels
Rims
Vera Terra DPM18 double wall rims 32h, alloy hubs, 14g spokes
Tires
Vera EOS, 700 x 38c, 30 tpi
Brakes
Brakes
Tektro, linear pull, alloy
Brake Levers
Shimano EF41, 2-finger
Cockpit
Stem
Oval Concepts, alloy, 20° rise, 25.4mm
Handlebar
Oval Concepts, 6061 alloy, 18mm rise, 6° sweep, 25.4mm
Headset
FSA, 1-1/8" semi-integrated threadless
Seat
Saddle
Oval Concepts w/ steel rails
Seatpost
Oval Concepts, alloy, 31.6mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.63 mm | 1.55 mm | 1.57 mm | 1.6 mm | 1.62 mm | 1.59 mm |
| Front Center | 594 mm | 613 mm | 615 mm | 626 mm | 636 mm | 656 mm |
| Rake | 43.8 mm | 43.8 mm | 43.8 mm | 43.8 mm | 43.8 mm | 43.8 mm |
| Trail | 95 mm | 95 mm | 92 mm | 92 mm | 92 mm | 92 mm |
| Stack | 591 mm | 591 mm | 602 mm | 621 mm | 635 mm | 649 mm |
| Reach | 362 mm | 381 mm | 384 mm | 388 mm | 393 mm | 408 mm |
| Top Tube Length | 549 mm | 568 mm | 586 mm | 597 mm | 607 mm | 627 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Seat Tube Length | 380 mm | 440 mm | 482 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1044 mm | 1063 mm | 1065 mm | 1076 mm | 1086 mm | 1106 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 732 mm | 772 mm | 789 mm | 817 mm | 842 mm | 875 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

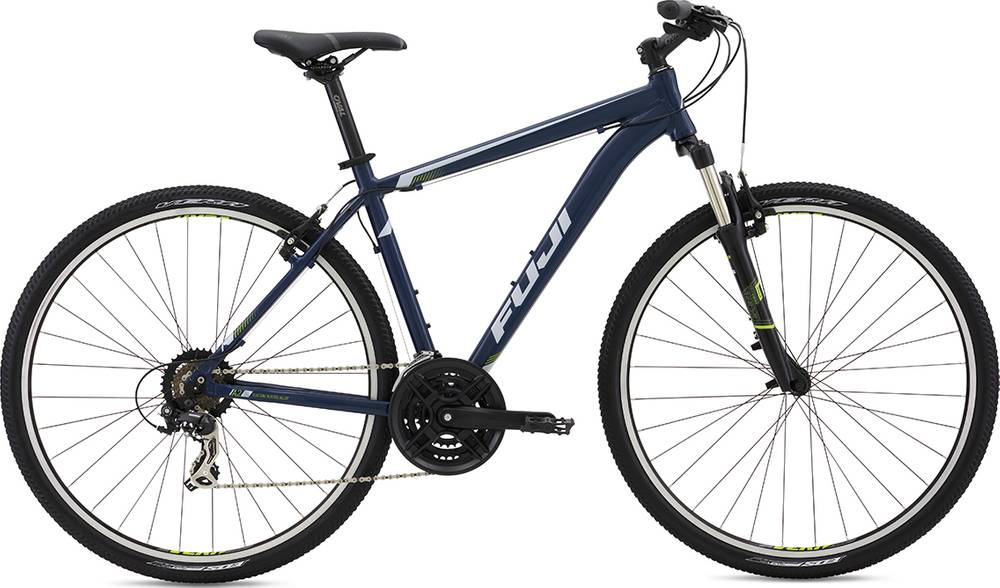

Traverse 1.9 is part of the Fuji Traverse model. 83 bikes variations carry this model name so far. You can easily view all of the Fuji Traverse bikes models from 2016, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Hybrid bikes average price
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Hybrid bikes
On a deeper look, we notice that the average weight of a Hybrid bike is 13.85 kg (30.53 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Fuji Traverse 1.9 it’s weighing 13.95 kg (30.75 lbs). At this weight, is slightly heavier than average. In short, the average Hybrid bike weight is 0.72% lower than this one.
Overview of components
Wheels
The wheels on Traverse 1.9 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Traverse 1.9 has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
