Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A6-SL custom-butted alloy w/ integrated 1 1/8" - 1 1/2" lower tapered head tube, oversized 34.9mm seat tube, PIIS BB86 shell, double water bottle mounts
Suspension Fork
FC-770 carbon blade, alloy crown w/ tapered alloy steerer & alloy dropouts
Drivetrain
Rear Derailleur
Shimano Tiagra, 10-speed
Front Derailleur
Shimano Tiagra
Shift Levers
Shimano Tiagra, STI, 10-speed
Cassette
Shimano Tiagra, 12-30T, 10-speed
Crank
Oval Concepts 520, forged 6066 arms, 50/34T
Bottom Bracket
Oval, external, sealed bearing
Chain
KMC X10 w/ MissingLink, 10-speed
Pedals
N/A
Wheels
Rims
Vera Terra DPD22 rims, 32h, stainless eyelets, alloy disc hubs, aero spokes
Tires
Vera CityWide, 700 x 32c, 30tpi w/ Phalanx flat protection
Brakes
Brakes
TRP STYRE, mechanical disc, 160mm/140mm rotors
Brake Levers
Shimano Tiagra STI
Cockpit
Stem
Oval Concepts 313, 6061 3D-forged alloy, 31.8mm, +/- 7°
Handlebar
Oval Concepts 310, 6061 alloy, 31.8mm
Headset
FSA, 1 1/8" upper - 1 1/2" lower, integrated cartridge
Seat
Saddle
Oval Concepts P300 w/ steel rails
Seatpost
Oval Concepts 300, 3D-forged 6061 alloy, 27.2mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM/MD | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|---|
| Front Center | 583 mm | 599 mm | 600 mm | 590 mm | 605 mm | 621 mm | 636 mm |
| Top Tube Length | 505 mm | 520 mm | 530 mm | 540 mm | 555 mm | 570 mm | 585 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm | 580 mm | 600 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 105 mm | 110 mm | 130 mm | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 998 mm | 1014 mm | 1015 mm | 1006 mm | 1021 mm | 1038 mm | 1053 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 67 mm | 67 mm | 65 mm | 65 mm |
| Standover Height | 744 mm | 756 mm | 774 mm | 787 mm | 808 mm | 825 mm | 845 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

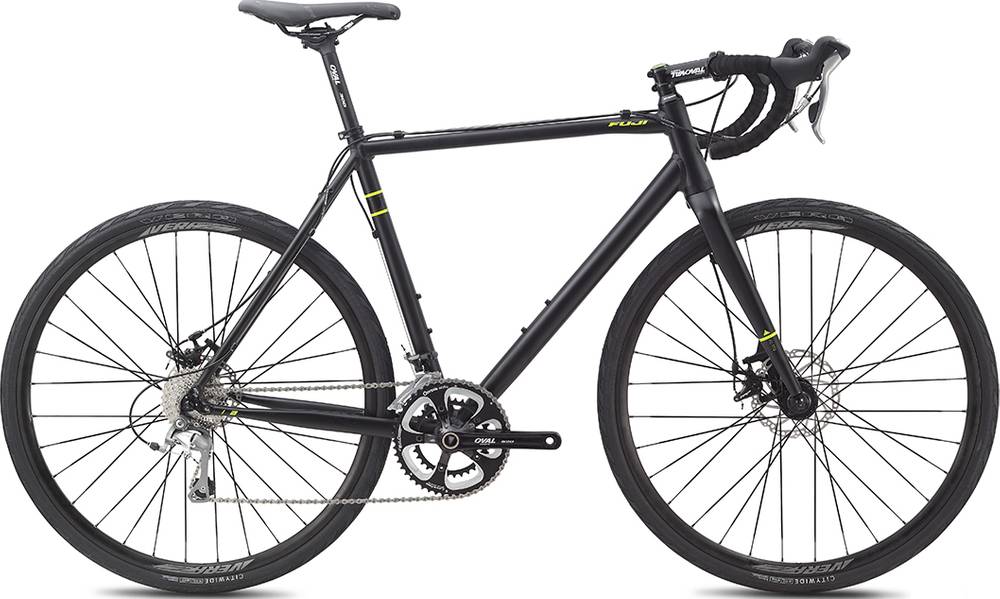

Tread 1.1 Disc is part of the Fuji Tread model. There are 9 bikes that carry this model name. You can easily view all of the Fuji Tread bikes models from 2015, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for General Urban bikes
According to our calculations, the average cost of a General Urban bike that is reliable is 499$. However, this doesn’t mean that if you spend less money on a General Urban bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for General Urban bikes
On a deeper look, we notice that the average weight of a General Urban bike is 13.11 kg (28.9 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
much lighter than average, Tread 1.1 Disc has a weight of 11.35 kg (25.02 lbs). In other words, this model is 15.51% lighter than the average General Urban bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The wheels on Tread 1.1 Disc are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Tread 1.1 Disc comes with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
