Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset XT, Alivio -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy w/ PowerCurve down tube, oversized seat tube
Suspension Fork
SR Suntour SF15-XCM-RL-DS-27.5 w/ remote lockout, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore XT, 9-speed
Front Derailleur
Shimano Alivio, 34.9mm
Shift Levers
Shimano Alivio, Rapid Fire, 9-speed
Cassette
Shimano HG200-9, 11-34T, 9-speed
Crank
Shimano Alivio Octalink, 44/32/22T
Bottom Bracket
Shimano Octalink, sealed bearing
Chain
KMC X9, 9-speed
Pedals
Resin platform
Wheels
Rims
Vera Terra DPD22 rims 32h, Formula DC-20LW front, Formula DC-22LW rear disc hubs, 14g stainless black spokes
Tires
Schwalbe Rapid Rob, 27.5" x 2.25", 50tpi
Brakes
Brakes
Tektro HD-M290, hydraulic disc, 180/160mm rotors
Brake Levers
Tektro HD-M290, hydraulic disc
Cockpit
Stem
Oval Concepts 313, 6061 3D-forged alloy, 31.8mm, 7° rise
Handlebar
Oval Concepts, 6061 alloy, riser, 31.8mm, 9° sweep, 15mm rise
Headset
FSA NO. 10, 1 1/8" semi-integrated, caged bearings
Seat
Saddle
Oval Concepts 200 w/ steel rails
Seatpost
Oval Concepts 300, 6061 alloy, 31.6mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.68 mm | 1.58 mm | 1.54 mm | 1.48 mm | 1.44 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 606 mm | 641 mm | 661 mm | 692 mm | 712 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 81 mm | 81 mm | 81 mm | 81 mm | 81 mm |
| Stack | 601.9 mm | 616.2 mm | 625.6 mm | 639.8 mm | 649.2 mm |
| Reach | 358.8 mm | 389.4 mm | 406.6 mm | 432.2 mm | 449.3 mm |
| Top Tube Length | 543.4 mm | 578.4 mm | 598.4 mm | 628.4 mm | 648.4 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 431.8 mm | 482.6 mm | 533.4 mm | 584.2 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 110 mm | 125 mm | 135 mm | 150 mm | 160 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1034 mm | 1070 mm | 1090 mm | 1121 mm | 1141 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Standover Height | 771 mm | 800 mm | 830 mm | 867 mm | 889 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |

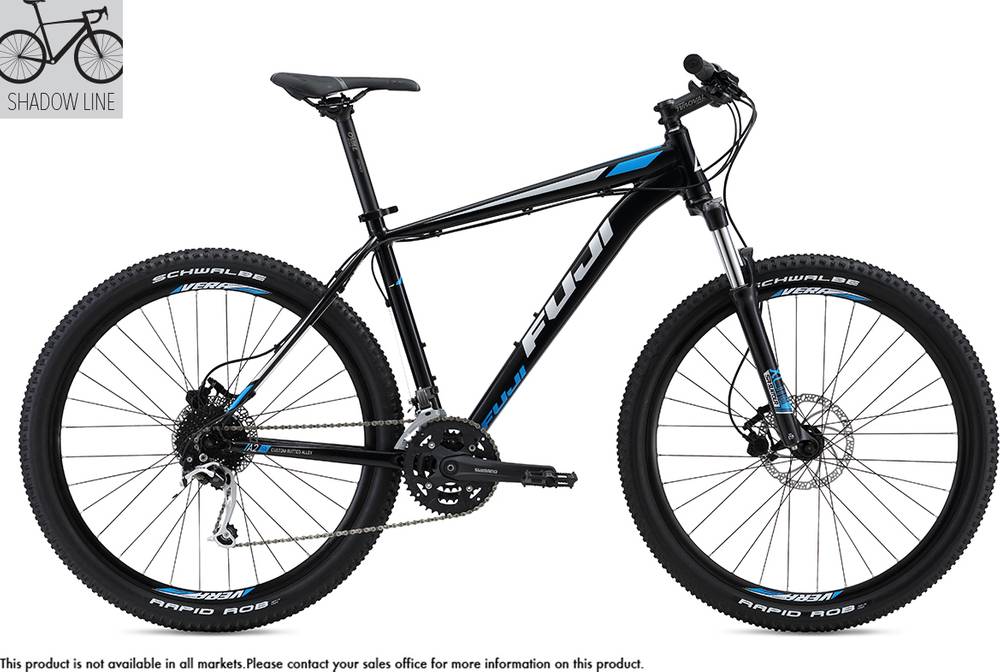

Model Overview
Wasatch 27.5 1.3 completes the Fuji Wasatch model. 18 bikes variations carry this model name so far. You can get a glimpse at all models from 2016, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Crosscountry bikes average weight
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
much heavier than average, Wasatch 27.5 1.3 has a weight of 14.41 kg (31.77 lbs). In conclusion, the average Crosscountry bike weighs 16.21% less than Wasatch 27.5 1.3.
Wasatch 27.5 1.3 components
Fork
The Wasatch 27.5 1.3 comes factory-installed with the SunTour XCM fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When it comes to wheels, the Wasatch 27.5 1.3 bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
