Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy w/ PowerCurve down tube, hydroformed top tube, tapered head tube
Suspension Fork
SR Suntour SF15-XCT-HLO,100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Acera, 8-speed
Front Derailleur
Shimano Altus, 34.9 clamp
Shift Levers
Shimano Altus, 8-speed
Cassette
Shimano HG31, 11-34T, 8-speed
Crank
Shimano M311, 42/32/22T
Bottom Bracket
FSA, sealed cartridge bearing
Chain
KMC, 8-speed
Pedals
Resin platform
Wheels
Rims
Vera Terra DPD18 32h, Shimano RM33 centerlock disc hubs, 14g black spokes
Tires
Vera Eos 27.5" x 2.2", 30 tpi"
Brakes
Brakes
Shimano M355, hydraulic disc, 180/160mm rotor
Brake Levers
Shimano M355, hydraulic disc
Cockpit
Stem
Oval Concepts, melt-forged alloy, 31.8mm, 10° rise
Handlebar
Oval Concepts, 6061 alloy, riser, 31.8mm, 9° sweep, 15mm rise, 710mm wide
Headset
FSA NO.42, 1 1/8" - 1.5", caged bearings
Seat
Saddle
Oval Concepts Mens w/ steel rails
Seatpost
Oval Concepts, 6061 alloy, 31.6mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM/MD | MD | MD/LG | LG |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.64 mm | 1.51 mm | 1.46 mm | 1.36 mm | 1.3 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 637 mm | 605 mm | 637 mm | 660 mm | 690 mm | 710 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 39 mm | 81 mm | 81 mm | 81 mm | 81 mm | 81 mm |
| Stack | 590.3 mm | 599.7 mm | 599.7 mm | 609.1 mm | 609.1 mm | 609.1 mm |
| Reach | 359.1 mm | 366.2 mm | 398.3 mm | 418.3 mm | 448.3 mm | 468.3 mm |
| Top Tube Length | 538.6 mm | 548.6 mm | 580.6 mm | 603.6 mm | 633.5 mm | 653.6 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 335.2 mm | 381 mm | 431.8 mm | 483 mm | 533.4 mm | 584.2 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm | 120 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1071 mm | 1039 mm | 1071 mm | 1094 mm | 1124 mm | 1144 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Standover Height | 740 mm | 780 mm | 796 mm | 823 mm | 846 mm | 871 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" |
About this model

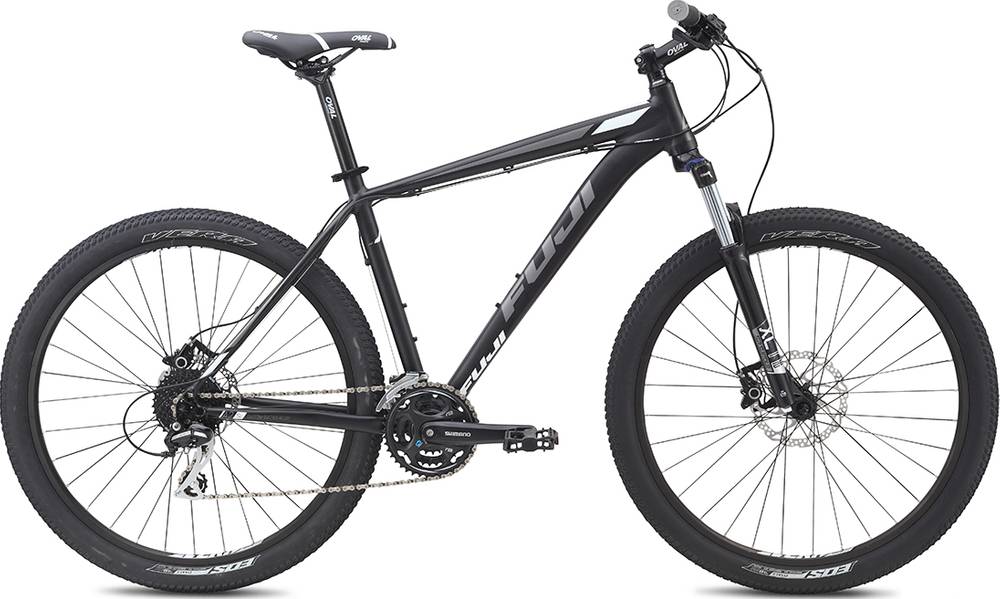

Wasatch 27-5 1.7 belongs to the Fuji Wasatch model. Fuji launched 18 bikes of this model so far. You can easily view all of the Fuji Wasatch bikes models from 2015, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Crosscountry bikes
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Fuji Wasatch 27-5 1.7 it’s weighing 15.02 kg (33.11 lbs). At this weight, is much heavier than average. In conclusion, the average Crosscountry bike weighs 21.13% less than Wasatch 27-5 1.7.
Overview of components
Fork
The Wasatch 27-5 1.7 comes factory-installed with the SunTour XCT fork. This has a travel range of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The wheels on Wasatch 27-5 1.7 are the 27.5″ aluminum type. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
