Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy w/ PowerCurve down tube, oversized seat tube
Suspension Fork
SR Suntour SF16-XCT-DS-27.5 w/ 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Tourney, 7-speed
Front Derailleur
Shimano Tourney, 34.9mm
Shift Levers
Shimano EF41, EZ Fire, 7-speed
Cassette
Shimano TZ31 freewheel, 14-34T, 7-speed
Crank
Vuelta, alloy, 42/34/24T
Bottom Bracket
VP-BC73, sealed cartridge bearing
Chain
KMC HV500, 7-speed
Pedals
Resin platform
Wheels
Rims
Vera Terra SPD16 rims 36h, Formula DC-20 front, DC-31 rear disc hubs, 14g black spokes
Tires
Vera Eos, 27.5" x 2.2", 30tpi
Brakes
Brakes
Tektro M280, mechanical disc, 160mm rotors
Brake Levers
Shimano EF41, 2-finger brake/shifter combo
Cockpit
Stem
Oval Concepts, melt-forged alloy, 31.8mm, 10° rise
Handlebar
Oval Concepts, 6061 alloy, riser, 31.8mm, 9° sweep, 15mm rise
Headset
FSA NO. 10, 1 1/8" semi-integrated, caged bearings
Seat
Saddle
Oval Concepts Mens w/ steel rails
Seatpost
Oval Concepts, 6061 alloy, 31.6mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.68 mm | 1.58 mm | 1.54 mm | 1.48 mm | 1.44 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 606 mm | 641 mm | 661 mm | 692 mm | 712 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 81 mm | 81 mm | 81 mm | 81 mm | 81 mm |
| Stack | 601.9 mm | 616.2 mm | 625.6 mm | 639.8 mm | 649.2 mm |
| Reach | 358.8 mm | 389.4 mm | 406.6 mm | 432.2 mm | 449.3 mm |
| Top Tube Length | 543.4 mm | 578.4 mm | 598.4 mm | 628.4 mm | 648.4 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 431.8 mm | 482.6 mm | 533.4 mm | 584.2 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 110 mm | 125 mm | 135 mm | 150 mm | 160 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1034 mm | 1070 mm | 1090 mm | 1121 mm | 1141 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Standover Height | 771 mm | 800 mm | 830 mm | 867 mm | 889 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
About this model

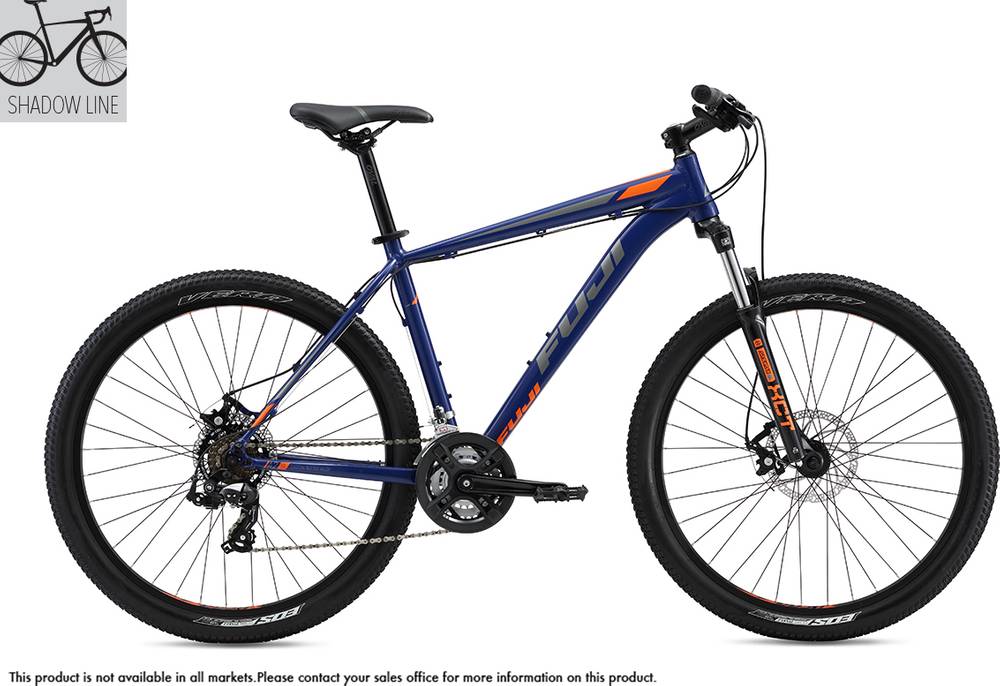

Wasatch 27.5 1.9 completes the Fuji Wasatch model. There are 18 bikes that carry this model name. Take a sneak peek at all Fuji Wasatch bikes models from 2016, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Fuji Wasatch 27.5 1.9 it’s weighing 14.94 kg (32.94 lbs). At this weight, is much heavier than average. In conclusion, the average Crosscountry bike weighs 20.48% less than Wasatch 27.5 1.9.
Wasatch 27.5 1.9 components
Fork
The Wasatch 27.5 1.9 comes factory-installed with the SunTour XCT fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the Wasatch 27.5 1.9 model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
