Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy w/ PowerCurve down tube, hydroformed top tube, tapered head tube
Suspension Fork
Rock Shox XC28, remote lockout, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore XT shadow, 10-speed
Front Derailleur
Shimano Deore XT, 34.9mm
Shift Levers
Shimano Deore Ispec, Rapid Fire, 10-speed
Cassette
Sunrace 11-36T, 10-speed
Crank
Shimano Deore XT, 38/24T
Bottom Bracket
Shimano external cup sealed bearing
Chain
KMC X10 10-speed
Pedals
N/A
Wheels
Rims
Vera Terra DPD22 32h, Shimano RM66 centerlock disc hubs, stainless 15g spokes
Tires
Schwalbe Racing Ralph 29" x 2.25", 67 tpi, folding
Brakes
Brakes
Shimano M447 hydraulic disc, 180/160mm rotor
Brake Levers
Shimano M506 hydraulic
Cockpit
Stem
Oval Concepts 313, 6061 3D-forged alloy, 31.8mm, 7° rise
Handlebar
Oval Concepts flat bar, 6061 alloy, 31.8mm, 9° sweep, 0mm rise, 710mm wide
Headset
FSA NO.42, 1 1/8" - 1.5", caged bearings
Seat
Saddle
Oval Concepts 200 w/ steel rails
Seatpost
Oval Concepts 300, 6061 alloy, 31.6, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.69 mm | 1.66 mm | 1.58 mm | 1.52 mm | 1.53 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 630 mm | 646 mm | 666 mm | 681 mm | 696 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Stack | 636.8 mm | 646.3 mm | 646.2 mm | 646.3 mm | 665.2 mm |
| Reach | 377.6 mm | 389.7 mm | 409.8 mm | 424.7 mm | 434 mm |
| Top Tube Length | 573 mm | 588 mm | 608 mm | 623 mm | 638 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 431.8 mm | 482.6 mm | 533.4 mm | 584.2 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 120 mm | 130 mm | 130 mm | 130 mm | 150 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1066 mm | 1081 mm | 1101 mm | 1116 mm | 1132 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 800 mm | 829 mm | 852 mm | 867 mm | 898 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model

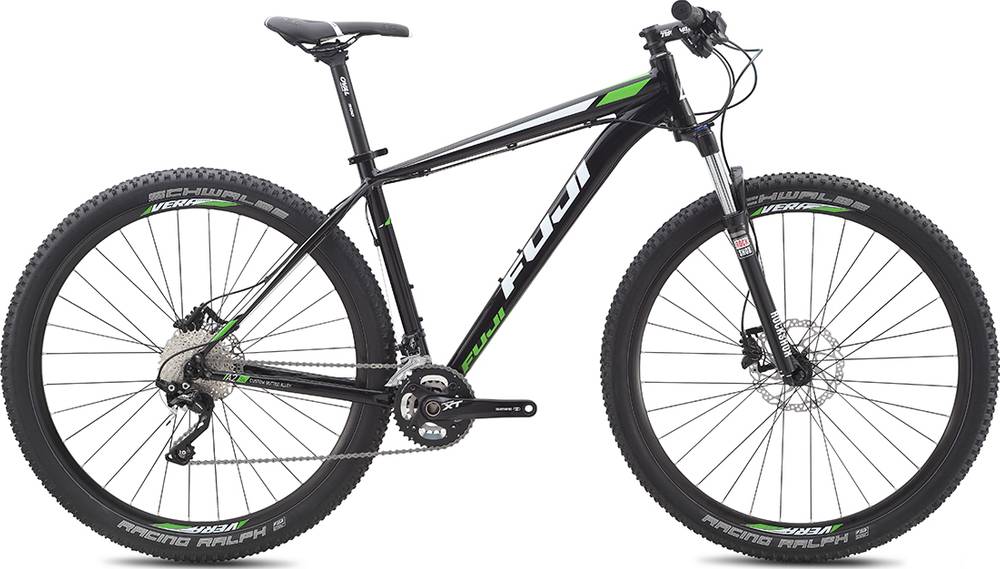

Wasatch 29 1.1 is a Fuji Wasatch model. 18 bikes variations carry this model name so far. You can get a glimpse at all models from 2015, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
slightly heavier than average, Wasatch 29 1.1 has a weight of 12.64 kg (27.87 lbs). To sum up, it’s 1.94% heavier than the average weight of Crosscountry bikes.
Wasatch 29 1.1 components
Wheels
When it comes to wheels, the Wasatch 29 1.1 bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Wasatch 29 1.1 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
