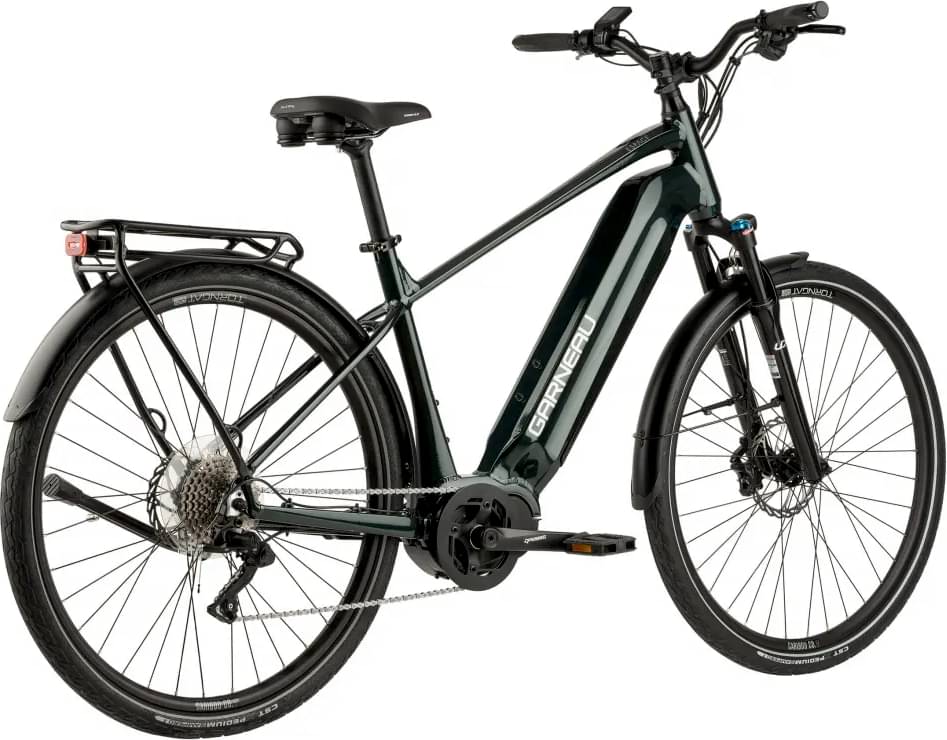

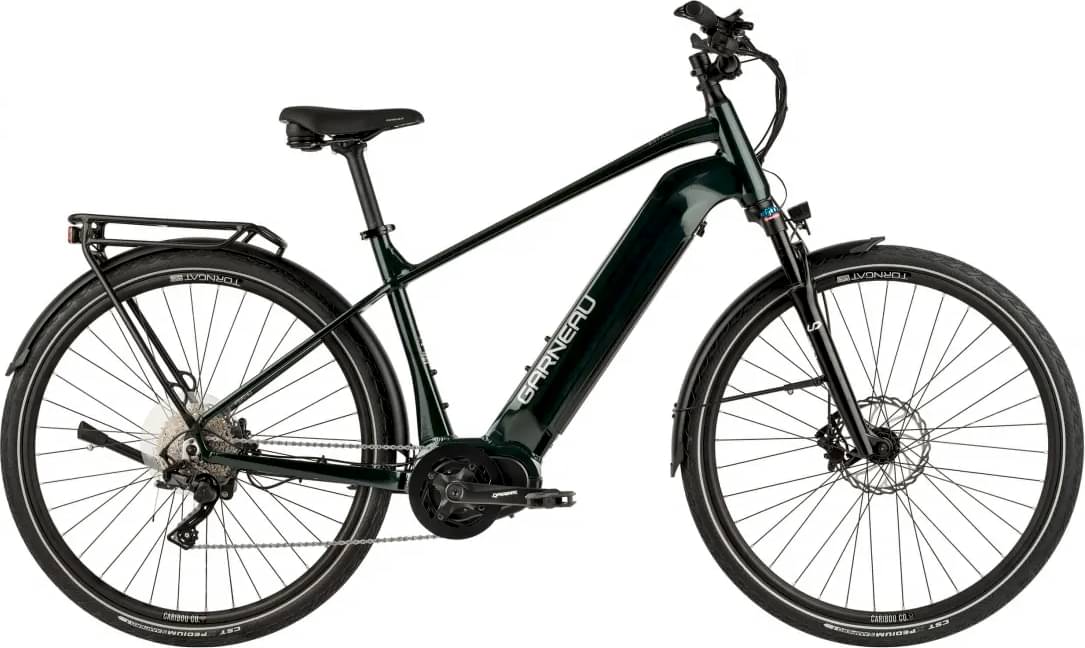

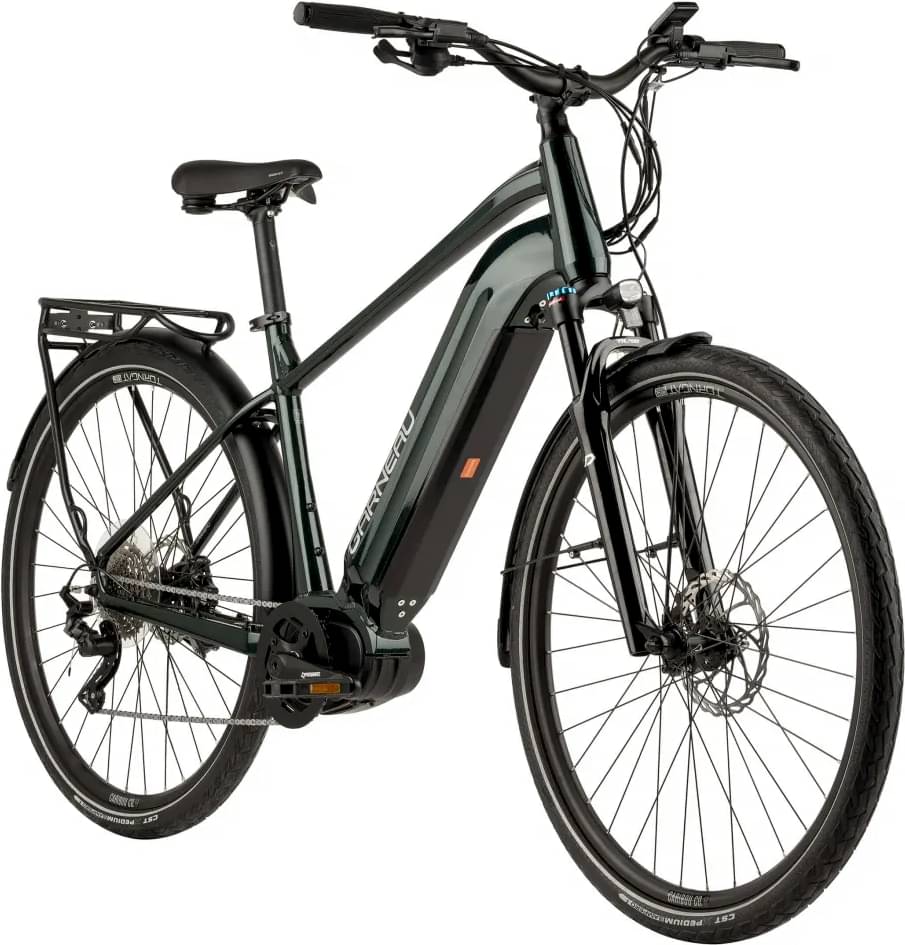

garneau E-Espace P Max 2023
2023 E-bike
Estimate price |
3,498$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 100mm -
Groupset microSHIFT Advent -
Suspension Hardtail -
Motor Bafang 350W 80Nm mid-drive -
Battery Bafang 36V/ 17.8Ah (640Wh) integrated, smart BMS, 32km/h -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-Espace mid-drive, hydroform S-6 LT aluminum, integrated battery, disc

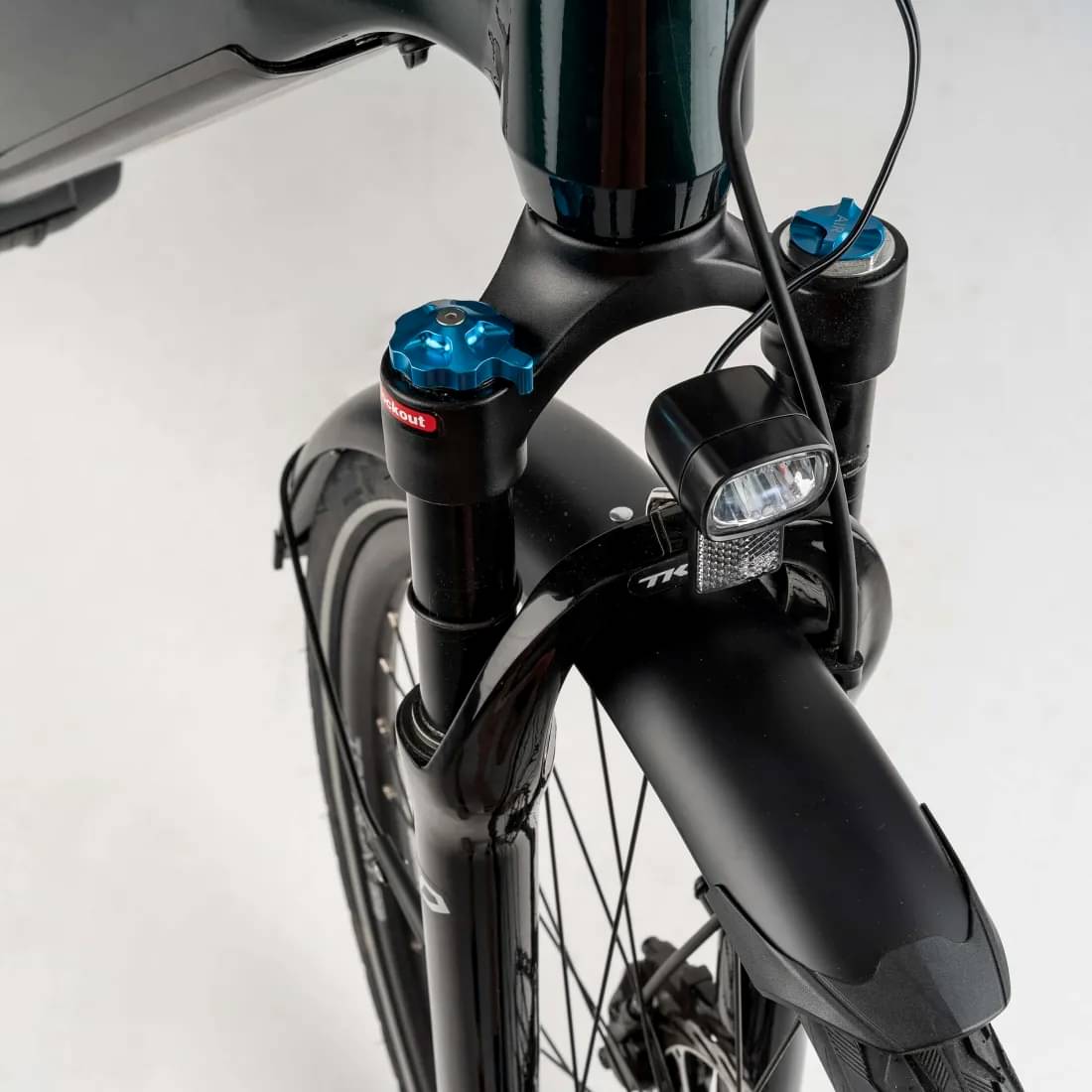

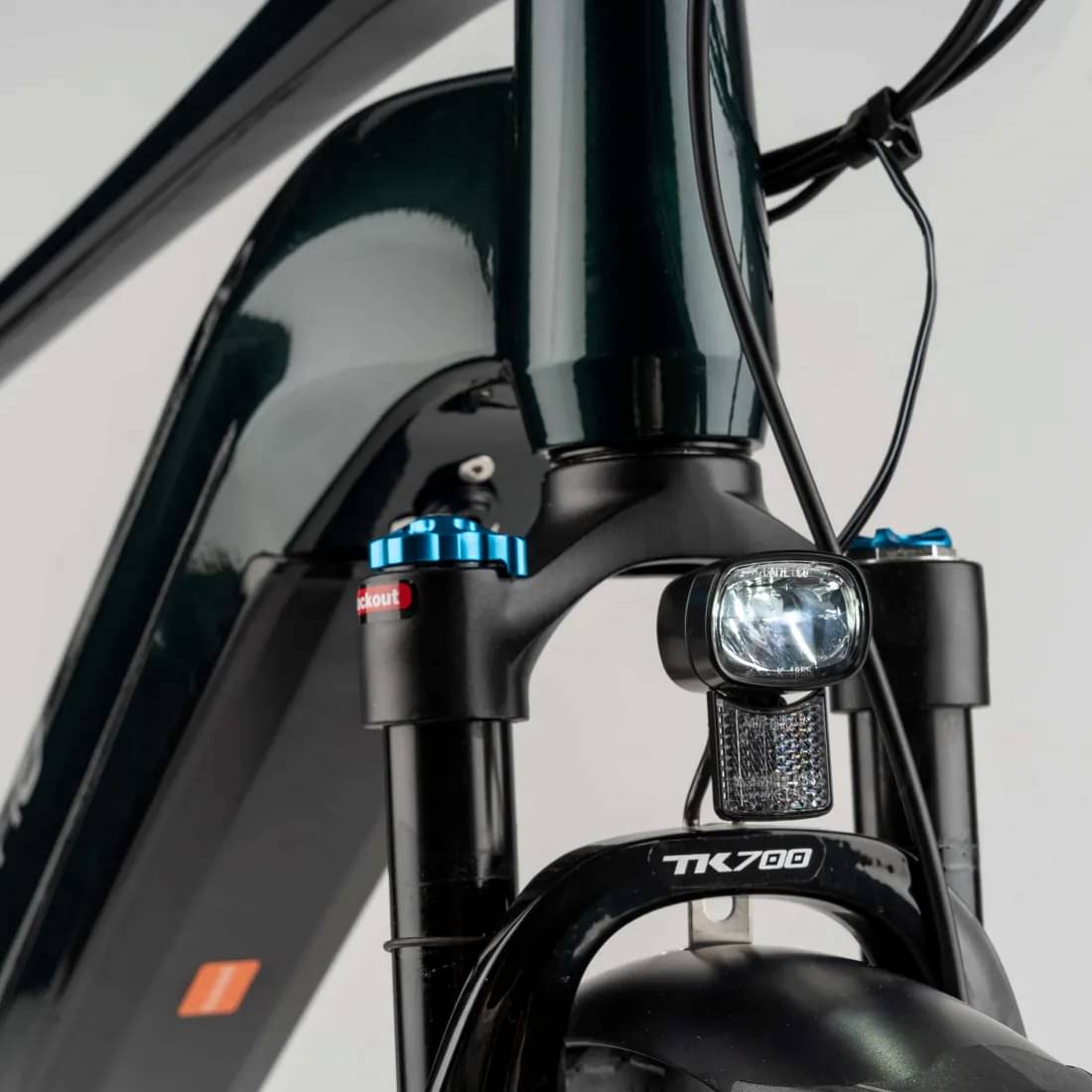

Suspension Fork
UD TK700 Pro air, travel 100 mm
Drivetrain
Rear Derailleur
Microshift Advent, w/clutch, 9-speed
Shift Levers
Microshift xpress plus
Cassette
Sugek, 11-36T, 9-speed
Crank
Prowheel, Narrow Wide 38T
Bottom Bracket
Incorporated with motor
Chain
KMC X9ES EPT, Anti-rust
Pedals
Platform
Wheels
Front Hub
Formula, disc, QR 9 x 100 mm
Rear Hub
Formula, disc, cassette, QR 10 x 135 mm
Rims
Torngat D21-700, 36h
Spokes
14g, stainless steel
Tires
CST Xpedium ampero, reflective, 700 x 45c
Brakes
Brakes
Jieke Y-5, hydraulic disc
Brake Levers
jieke Y-5, w/sensor control
Cockpit
Stem
Caribou co. alloy, 45mm, 17?
Handlebar
Caribou Panache 2, 75 mm riser, Ø31.8 mm
Grips
Velo Ergo, lock-on
Headset
ZS44/28.6 | ZS44/30.0, 1 1/8''
Seat
Saddle
Selle Royal Essenza Relaxed
Seatpost
Caribou Panache 2, Ø30,9 mm
Motor & Battery

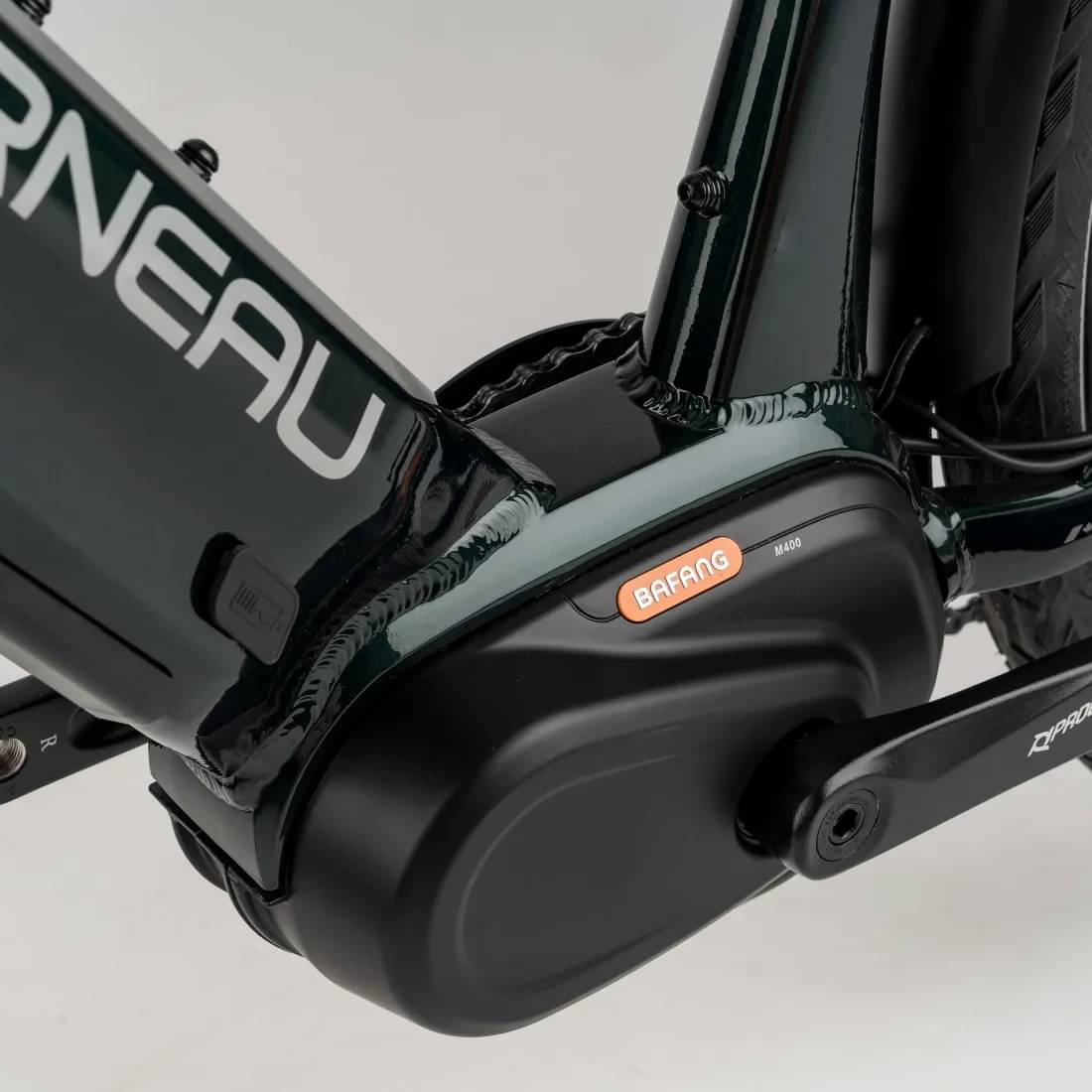

Motor
Bafang M400 mid-drive, 36V/350W, 80Nm, 32 km/h
Battery
Bafang 36V/ 17.8Ah (640Wh) integrated, smart BMS, 32km/h
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM/MD | MD/LG |
|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.57 mm |
| Front Center | 621 mm | 638 mm |
| Rake | 50 mm | 50 mm |
| Trail | 78 mm | 71 mm |
| Stack | 569 mm | 611 mm |
| Reach | 378 mm | 390 mm |
| Top Tube Length | 537 mm | 572 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 430 mm |
| Head Tube Angle | 70 ° | 71 ° |
| Head Tube Length | 150 mm | 190 mm |
| Chainstay Length | 447 mm | 447 mm |
| Wheelbase | 1059 mm | 1076 mm |
| Bottom Bracket Drop | 70 mm | 70 mm |
| Standover Height | 600 mm | 625 mm |
| Wheels | 700 | 700 |
About this model
E-Espace P Max is part of the Garneau E E Espace model. 8 e-bikes variations carry this model name so far. You can easily view all of the Garneau E E Espace e-bikes models from 2023, here.
Model range prices
Garneau E-Espace R + Step 2023 is the most economical model, with a starting price of 2621$. Garneau E-Espace P Max 2023 on the other hand costs 3492$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Hybrid e-bikes average price
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Garneau E-Espace P Max price was 3492$. Doing a quick comparison, we notice that E-Espace P Max price is 40.81% higher than the average cost of a Hybrid e-bike.
E-Espace P Max components
Wheels size
The E-Espace P Max 2023 e-bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Espace P Max has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
