Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 26" -
Travel Front 100mm -
Fork Manitou
-
Groupset XT, Shimano -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AC/DC - (Aluminum / Carbon Damping / Composite) - ZR9000 internally and externally butted aluminum main frame, Carbon composite seat and chain stays | Genesis Geometry
Suspension Fork
Manitou Skareb Super, 100mm travel, TPC Lock-Out
Drivetrain
Rear Derailleur
Shimano XT SGS
Front Derailleur
Shimano LX
Shift Levers
Shimano XT
Cassette
SRAM PG970 11-34T, 9SPD
Crank
Bontrager Race 44/32/22
Pedals
Shimano M505 clipless
Wheels
Tires
Bontrager ACX 26x2.2 , folding
Brakes
Brakes
Avid SD-5 w/ Avid FR5
Cockpit
Stem
Bontrager Select OS, 31.8mm clamp, 7 degree rise
Handlebar
Bontrager Select OS, 31.8mm clamp, 630mm width, 25mm rise
Headset
Aheadset, semi-cartridge, sealed
Seat
Saddle
Bontrager Race Luxe
Seatpost
Bontrager Select
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

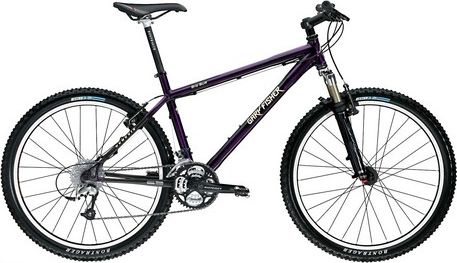

Big Sur is part of the Garyfisher Big Sur model. 21 bikes variations carry this model name so far. Check out the entire range from 2005 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
Gary Fisher Big Sur 2005 bike is equipped with the Manitou fork, and has 100mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When it comes to wheels, the Big Sur bike is equipped with the 26″ model. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Nothing is more important on a bike than its ability to brake properly. Gary Fisher Big Sur is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
