Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 T6 aluminum main/carbon seatstays & chainstays, E2 integrated headtube, BB86 integrated bottom bracket
Suspension Fork
Bontrager carbon FCC, carbon E2 1-1/8" - 1-1/2" steerer, wide stance carbon legs, accepts 25mm hub endcaps w/integrated SpeedTrap computer mount
Drivetrain
Rear Derailleur
Shimano Tiagra
Front Derailleur
Shimano Tiagra
Shift Levers
Shimano Tiagra 9spd
Cassette
SRAM PG950 11-26T
Bottom Bracket
BB86/BB92, press-fit
Pedals
N/A
Wheels
Rims
Bontrager SSR
Tires
Bontrager Race Lite 700x23, 60 TPI
Brakes
Brakes
Promax RC466A, cartridge pads
Cockpit
Stem
Bontrager SSR OS, 10d rise
Handlebar
Bontrager VR WSD
Headset
Cane Creek IS 2 for E2 Integrated
Seat
Saddle
Bontrager R1 WSD, 150mm width
Seatpost
Bontrager Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 47cm | 50cm | 52cm | 54cm |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

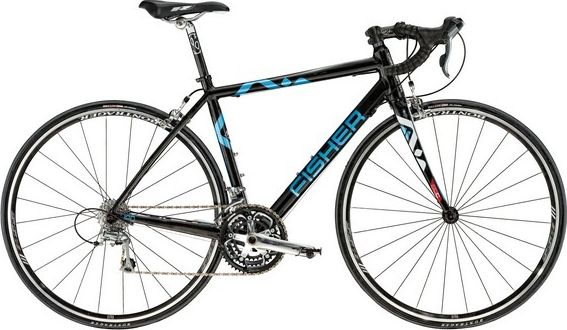

Ion Super GS completes the Garyfisher Ion model. There are 2 bikes that carry this model name. You can easily view all of the Garyfisher Ion bikes models from 2010, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Race bikes
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The wheels on Ion Super GS are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Gary Fisher Ion Super GS is equipped with Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
