Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Groupset Deore -
Brakes Rim
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Gold Series 6061 T6 aluminum, G2 Geometry, butted DT, cold-forged dropouts & BB
Drivetrain
Rear Derailleur
Shimano M531 Deore
Front Derailleur
Shimano M531 Deore
Shift Levers
Shimano Deore M530
Cassette
SRAM PG950 11-32T, 9spd
Pedals
Wellgo ATB, boron axle, alloy cage
Wheels
Rims
Shimano M65 CenterLock disc hubs, Bontrager Camino rims, 32h
Tires
Bontrager Jones XR, 2.2 rear/2.25 front, wire bead
Brakes
Brakes
Avid SD-3, linear pull spring
Cockpit
Stem
Bontrager SSR, 10d rise
Handlebar
Bontrager SSR riser, 25mm rise, 620mm width, 6d backsweep
Headset
1-1/8" threadless, semi-integrated, semi-cartridge bearings
Seat
Saddle
Bontrager Race Lux
Seatpost
Bontrager SSR, micro adjust, 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

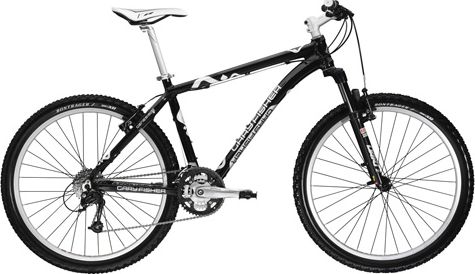

Marlin belongs to the Garyfisher Marlin model. There are 19 bikes that carry this model name. You can easily view all of the Garyfisher Marlin bikes models from 2009, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Marlin components
Wheels size
The Marlin 2009 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
Sizes
Marlin comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
