Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Groupset Deore, Acera -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Gold Series 6061 T6 aluminum, G2 Geometry, butted DT, cold-forged dropouts & BB
Drivetrain
Rear Derailleur
Shimano Deore
Front Derailleur
Shimano Acera FD-M3103
Shift Levers
Shimano Acera ST-EF50-L
Cassette
SRAM PG830 11-32T, 8spd
Pedals
Wellgo ATB, boron axle, steel cage
Wheels
Rims
Shimano M65 CenterLock disc hubs, Bontrager Ranger rims, 32h
Tires
Bontrager Jones XR, 2.2 rear/2.25 front, wire bead
Brakes
Brakes
Shimano M416, mechanical disc, 160mm CenterLock rotors
Cockpit
Stem
Bontrager SSR, 10d rise
Handlebar
Bontrager SSR riser, 25mm rise, 620mm width, 6d backsweep
Headset
1-1/8" threadless, semi-integrated, semi-cartridge bearings
Seat
Saddle
Bontrager Race Lux
Seatpost
Bontrager SSR, micro adjust, 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

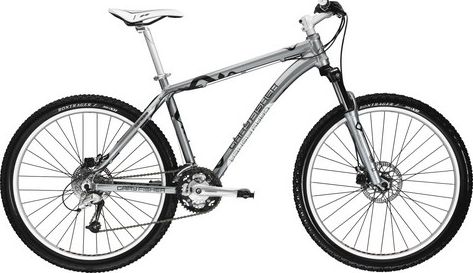

Wahoo Disc is part of the Garyfisher Wahoo model. Gary Fisher released 13 bikes variations of this model so far. You can get a glimpse at all models from 2009, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Wahoo Disc components
Wheels
When leaving the production line, the Wahoo Disc model has 26″ aluminum wheels. These wheels give you great handling over your bike. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
When you want to stop the bike in time, the brakes are vital. The Wahoo Disc has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
