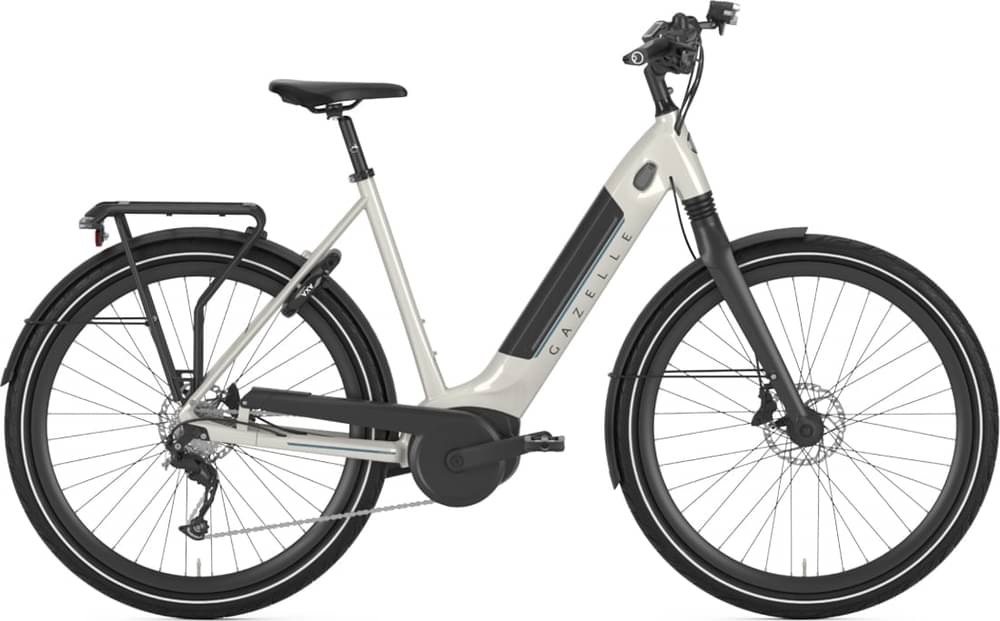

Gazelle Ultimate T10 HMB 2020
2020 E-bike
Estimate price |
3,799$
Weight | 25.99 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset XT -
Suspension Rigid -
Motor Bosch 250W 63Nm mid-drive -
Battery Weight: 6.6 lbs (2.99 kg) (Including Plastic Cover), Brand: Bosch PowerTube 500, Voltage: 36 volts, Amp Hours: 13.4 ah, Watt Hours: 482.4 wh, Chemistry: Lithium-ion -
Drivetrain 1 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Aluminum Alloy
Suspension Fork
Aluminum Alloy with Monoshock Spring Suspension, 30mm Travel, Preload Adjust, 100mm Hub Spacing, 9mm Axle with Quick Release Skewer
Drivetrain
Shift Levers
Shimano Deore XT Trigger Shifter on Right
Cassette
10 Speed 1x10 Shimano Deore XT, 11-36T Steel Cassette
Crank
Miranda Delta Forged Alloy, 170mm Length Crank Arms, 38 Tooth Chainring with Fully Enclosed Plastic Cover
Pedals
Gazelle Linea Alloy Platform with Rubber Tread
Wheels
Rims
Ryde Dutch Aluminum Alloy, Double Wall, 36 Hole, 19mm Outer Width
Spokes
Stainless Steel, 12 Gauge, Black with Silver Spoke Nuts
Tires
Schwalbe Energizer Plus, 28" x 1.75" (47-622)
Cockpit
Stem
Tool Adjustable Angle, 80mm Length, 60mm Height, 32mm Clamp Diameter
Handlebar
Aluminum Alloy, Swept Back, 640mm Length
Grips
Ergon GP1, Ergonomic Rubber, Black with Grey Accents, Locking
Headset
Integrated, Sealed Cartridge, Straight 1-1/8"
Seat
Saddle
Selle Royal Essenza, Large Comfort, Black
Seatpost
Gazelle Aluminum Alloy
Motor & Battery
Motor
Weight: 7.1 lbs (3.22 kg), Brand: Bosch Performance Line 3.0, Type: Mid-Mounted Geared Motor, Nominal Output: 250 watts, Peak Output: 450 watts, Torque: 65 Newton meters
Battery
Weight: 6.6 lbs (2.99 kg) (Including Plastic Cover), Brand: Bosch PowerTube 500, Voltage: 36 volts, Amp Hours: 13.4 ah, Watt Hours: 482.4 wh, Chemistry: Lithium-ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 97cm |
|---|---|
| Wheels | 700 |
About this model
Ultimate T10 HMB is a Gazelle E Ultimate model. Gazelle launched 37 e-bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Gazelle Ultimate T10 HMB 2020 is the most affordable e-bike of this model and has a price of 3799$. On the other hand, Gazelle Ultimate T10+ HMB 2020, is the most expensive and costs 3999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Touring e-bikes
According to our calculations, the average cost of a Touring e-bike that is reliable is 2429$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Touring e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2020 and its price was 3799$. Comparing this to the average Touring e-bike price, we see that the price is 56.4% more expensive.
Touring e-bikes average weight
If we make a quick analysis of the average weight of a Touring e-bike, we get 25.55 kg (56.33 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
slightly heavier than average, Ultimate T10 HMB has a weight of 25.99 kg (57.3 lbs). In conclusion, the average Touring e-bike weighs 1.72% less than Ultimate T10 HMB.
Overview of components
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels
When it comes to wheels, the Ultimate T10 HMB e-bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Ultimate T10 HMB has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
