Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset GRX 400, Tiagra -
Suspension Rigid -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Steel
Suspension Fork
Chromoly Disc Fork With Anything Cage Mounts
Drivetrain
Rear Derailleur
Shimano GRX RD-RX400 10 Speed
Front Derailleur
Shimano GRX FD-RX400
Shift Levers
Shimano Tiagra ST-4700 10 Speed
Cassette
Shimano CS-HG500-10 11-34T
Bottom Bracket
Shimano BB-RS500
Chain
KMC X10
Pedals
NW-91K With Cage
Wheels
Front Hub
KT-K08 / 6 Bolt
Rear Hub
KT-K08 / 6 Bolt
Rims
Jalco XCD21
Spokes
Steel 14 g
Tires
Kenda Booster 700 x 40c Tubeless Ready
Brakes
Brakes
TRP Spyre-C Mechanical Disc
Brake Levers
Shimano Tiagra ST-4700 10 Speed
Cockpit
Stem
Genesis Alloy 31.8mm -6 deg 100 mm
Headset
PT-1770 EC34 Upper / EC34 Lower
Seat
Saddle
Genesis
Seatpost
Genesis Alloy 27.2 x 350 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.52 mm | 1.54 mm | 1.55 mm | 1.56 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 276 mm | 276 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 555 mm | 574 mm | 595 mm | 614 mm | 635 mm |
| Reach | 367 mm | 377 mm | 387 mm | 397 mm | 407 mm |
| Top Tube Length | 526 mm | 546 mm | 563 mm | 584 mm | 607 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 550 mm | 580 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° |
| Head Tube Length | 115 mm | 135 mm | 155 mm | 175 mm | 195 mm |
| Wheelbase | 1009 mm | 1025 mm | 1037 mm | 1054 mm | 1065 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 763 mm | 786 mm | 810 mm | 828 mm | 852 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

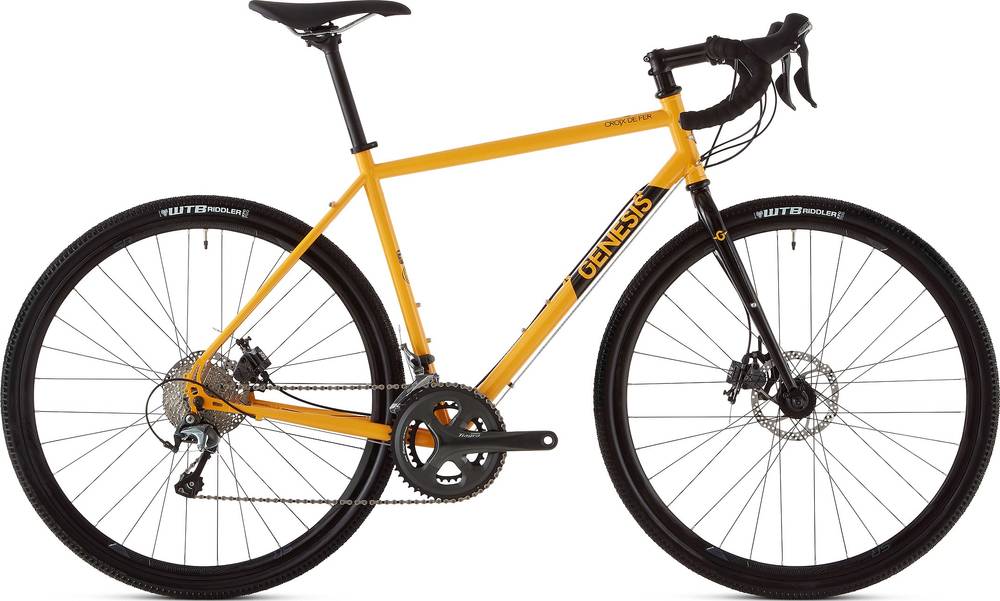

Croix De Fer 20 alt is a Genesis Croix model. Genesis launched 58 bikes of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Genesis Croix De Fer 10 2019 is the most economical model, with a starting price of 1337$. Genesis Croix De Fer Ti 2019 on the other hand costs 4499$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Gravel bikes average price
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Genesis released this model in 2019, its price was 1641$. In conclusion, this bike price is 50.03% smaller than the price of the average Gravel bike.
Croix De Fer 20 alt components
Fork material
Croix De Fer 20 alt has a steel fork, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels size
As for the wheels, Genesis Croix De Fer 20 alt 2019, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Croix De Fer 20 alt comes with Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
