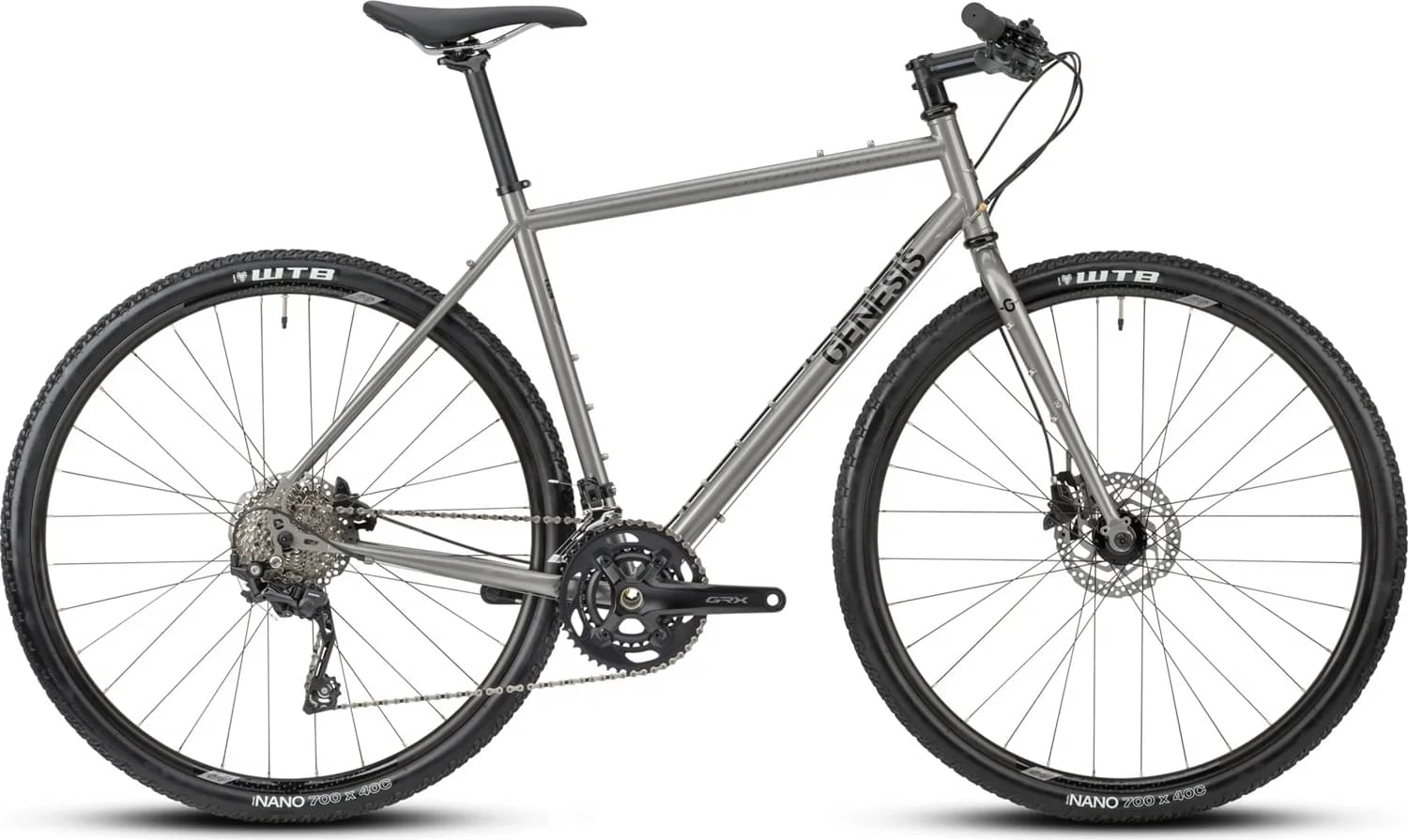

Genesis Croix De Fer 20 Flat Bar 2022
2022 Road
Estimate price |
2,031$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset GRX 400, Tiagra -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Steel
Suspension Fork
Chromoly Disc Fork With Anything Cage Mounts
Drivetrain
Rear Derailleur
Shimano GRX RD-RX400 10 Speed
Front Derailleur
Shimano GRX FD-RX400
Shift Levers
Shimano Tiagra SL-4700 10 Speed
Cassette
Shimano CS-HG500-10 11-34T
Bottom Bracket
Shimano BB-RS500
Chain
KMC X10
Pedals
NW-91K With Cage
Wheels
Front Hub
KT-K68 / 6 Bolt
Rear Hub
KT-K68 / 6 Bolt
Rims
Jalco XCD23
Spokes
Steel 14 g
Tires
WTB Nano 700 x 40c
Brakes
Brakes
Shimano BR-MT200 Hydraulic Disc
Brake Levers
Shimano BL-MT200 hydraulic brakes
Cockpit
Stem
Genesis Alloy 31.8mm -6 deg 100 mm
Headset
PT-1606 EC34 Upper / EC34 Lower
Seat
Saddle
Genesis
Seatpost
Genesis Alloy 27.2 x 350 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.52 mm | 1.54 mm | 1.55 mm | 1.56 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 276 mm | 276 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 555 mm | 574 mm | 595 mm | 614 mm | 635 mm |
| Reach | 367 mm | 377 mm | 387 mm | 397 mm | 407 mm |
| Top Tube Length | 526 mm | 546 mm | 563 mm | 584 mm | 607 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 550 mm | 580 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° |
| Head Tube Length | 115 mm | 135 mm | 155 mm | 175 mm | 195 mm |
| Wheelbase | 1009 mm | 1025 mm | 1037 mm | 1054 mm | 1065 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 763 mm | 786 mm | 810 mm | 828 mm | 852 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Croix De Fer 20 Flat Bar is a Genesis Croix model. Genesis launched 58 bikes of this model so far. You can easily view all of the Genesis Croix bikes models from 2022, here.
Model range prices
Genesis Croix De Fer 10 Flat Bar 2022 is the most affordable bike of this model and has a price of 1519$. On the other hand, Genesis Croix De Fer Ti 2022, is the most expensive and costs 6081$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel bikes average price
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Genesis released this model in 2022, its price was 1823$. Doing a quick comparison, we notice that Croix De Fer 20 Flat Bar price is 35.05% smaller than the average cost of a Gravel bike.
Croix De Fer 20 Flat Bar components
Fork material
Croix De Fer 20 Flat Bar has a steel fork, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels
The wheels on Croix De Fer 20 Flat Bar are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Genesis Croix De Fer 20 Flat Bar has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
