Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c -
Groupset GRX 800 -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titainium
Drivetrain
Rear Derailleur
Shimano GRX RD-RX810 Medium Cage
Front Derailleur
Shimano GRX FD-RX810
Shift Levers
Shimano GRX ST-R810 11 Speed
Cassette
Shimano CS-HG800-11 11-34T
Bottom Bracket
Shimano BB-RS500
Chain
KMX X11
Pedals
NW-91K With Cage
Wheels
Front Hub
Formula Front - CL-712 / Rear - RXC-142S
Rear Hub
Formula Front - CL-712 / Rear - RXC-142S
Rims
WTB ST Light i23 TCS 2.0
Spokes
Steel 14 g
Tires
Kenda Booster 700 x 40c Tubeless Ready
Brakes
Brakes
Shimano GRX BR-RX810 Hydraulic Disc
Brake Levers
Shimano GRX ST-R810 11 Speed
Cockpit
Stem
Genesis Alloy 31.8mm -6 deg 100 mm
Headset
PT-1860BC IS42 Upper / IS52 Lower
Seat
Saddle
Genesis
Seatpost
Genesis Alloy 27.2 x 350 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.52 mm | 1.54 mm | 1.55 mm | 1.56 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 276 mm | 276 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 555 mm | 574 mm | 595 mm | 614 mm | 635 mm |
| Reach | 367 mm | 377 mm | 387 mm | 397 mm | 407 mm |
| Top Tube Length | 526 mm | 546 mm | 563 mm | 584 mm | 607 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 550 mm | 580 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° |
| Head Tube Length | 115 mm | 135 mm | 155 mm | 175 mm | 195 mm |
| Wheelbase | 1009 mm | 1025 mm | 1037 mm | 1054 mm | 1065 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 763 mm | 786 mm | 810 mm | 828 mm | 852 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

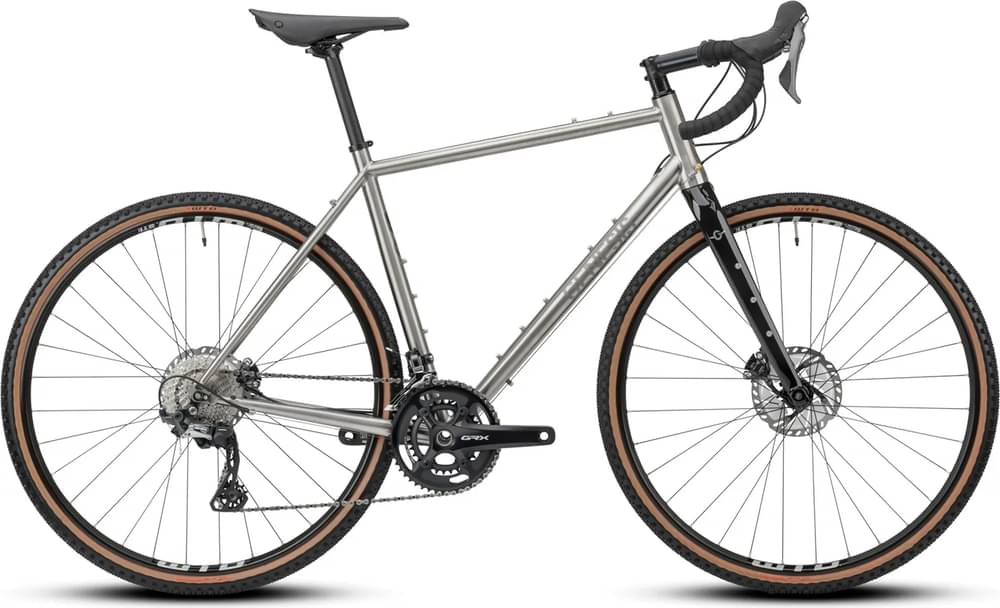

Croix De Fer Ti is a Genesis Croix model. Genesis released 58 bikes variations of this model so far. Take a sneak peek at all Genesis Croix bikes models from 2021, by clicking here.
Model range prices
The most economical model, the Genesis Croix De Fer 10 Flat Bar 2021 has a starting price of 1398$. Genesis Croix De Fer Ti 2021 on the other hand is the most expensive at 5594$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel bikes average price
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Genesis Croix De Fer Ti price was 5594$. Doing a quick comparison, we notice that Croix De Fer Ti price is 127.21% higher than the average cost of a Gravel bike.
Croix De Fer Ti components
Wheels
When it comes to wheels, the Croix De Fer Ti bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Genesis Croix De Fer Ti is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
