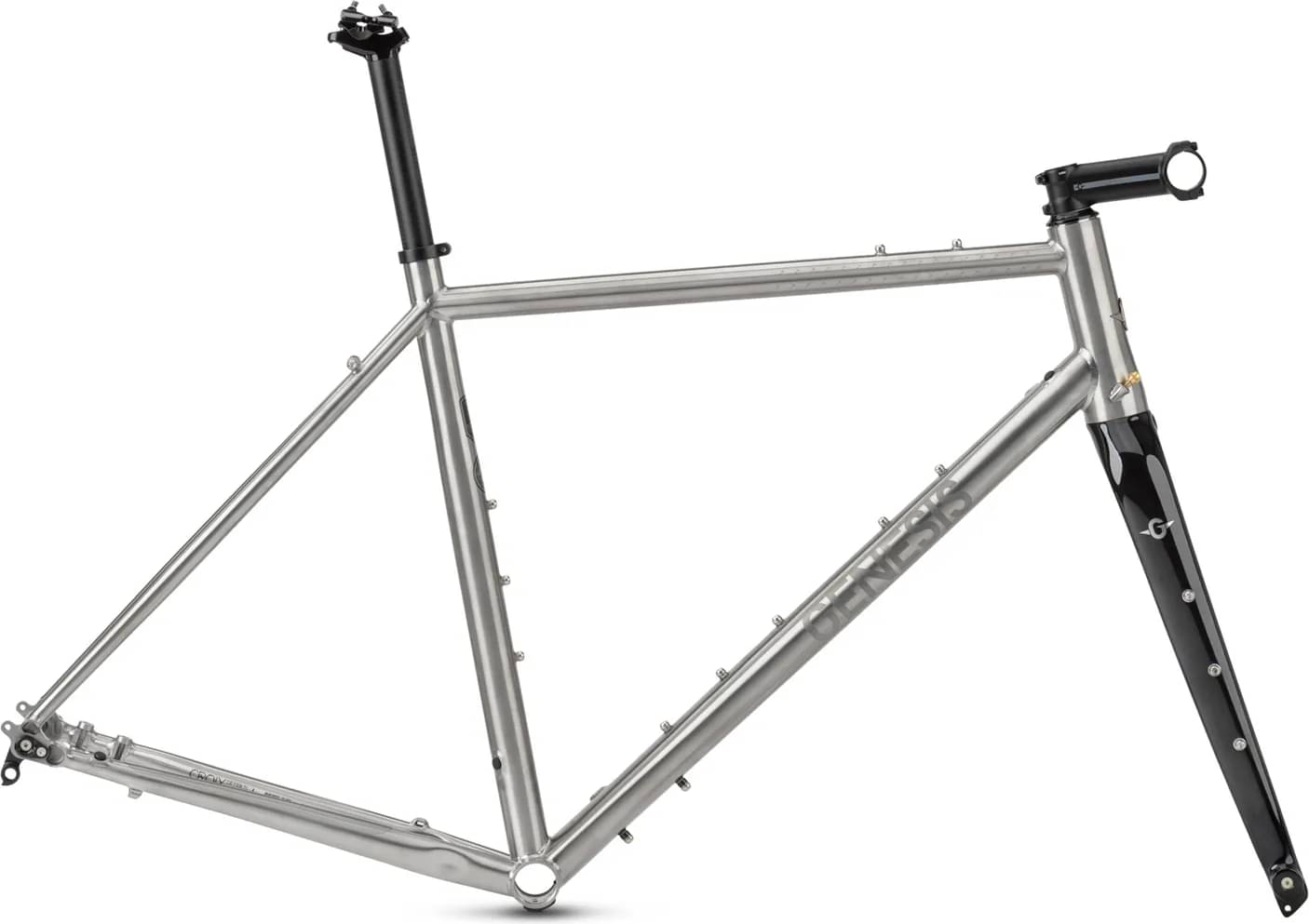

Genesis Croix De Fer Ti Frameset 2022
2022 Road
Estimate price |
3,657$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Titanium -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titainium
Cockpit
Headset
PT-1860BC IS42 Upper / IS52 Lower
Seat
Seatpost
27.2 mm Not Included
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.52 mm | 1.54 mm | 1.55 mm | 1.56 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 276 mm | 276 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 555 mm | 574 mm | 595 mm | 614 mm | 635 mm |
| Reach | 367 mm | 377 mm | 387 mm | 397 mm | 407 mm |
| Top Tube Length | 526 mm | 546 mm | 563 mm | 584 mm | 607 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 550 mm | 580 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° |
| Head Tube Length | 115 mm | 135 mm | 155 mm | 175 mm | 195 mm |
| Wheelbase | 1009 mm | 1025 mm | 1037 mm | 1054 mm | 1065 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 763 mm | 786 mm | 810 mm | 828 mm | 852 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Croix De Fer Ti Frameset is part of the Genesis Croix model. Genesis released 58 frames variations of this model so far. Take a sneak peek at all Genesis Croix frames models from 2022, by clicking here.
Model range prices
The most economical model, the Genesis Croix De Fer 725 Frameset 2022 has a starting price of 729$. Genesis Croix De Fer Ti Frameset 2022 on the other hand is the most expensive at 3283$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel frames
If you want an acceptable Gravel frame you should know that the average price is 1505$. However, even though the average price of a Gravel frame is lower, you might still be able to get a top-quality frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3283$. Doing a quick comparison, we notice that Croix De Fer Ti Frameset price is 118.14% higher than the average cost of a Gravel frame.
Croix De Fer Ti Frameset components
Sizes
Croix De Fer Ti Frameset comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
