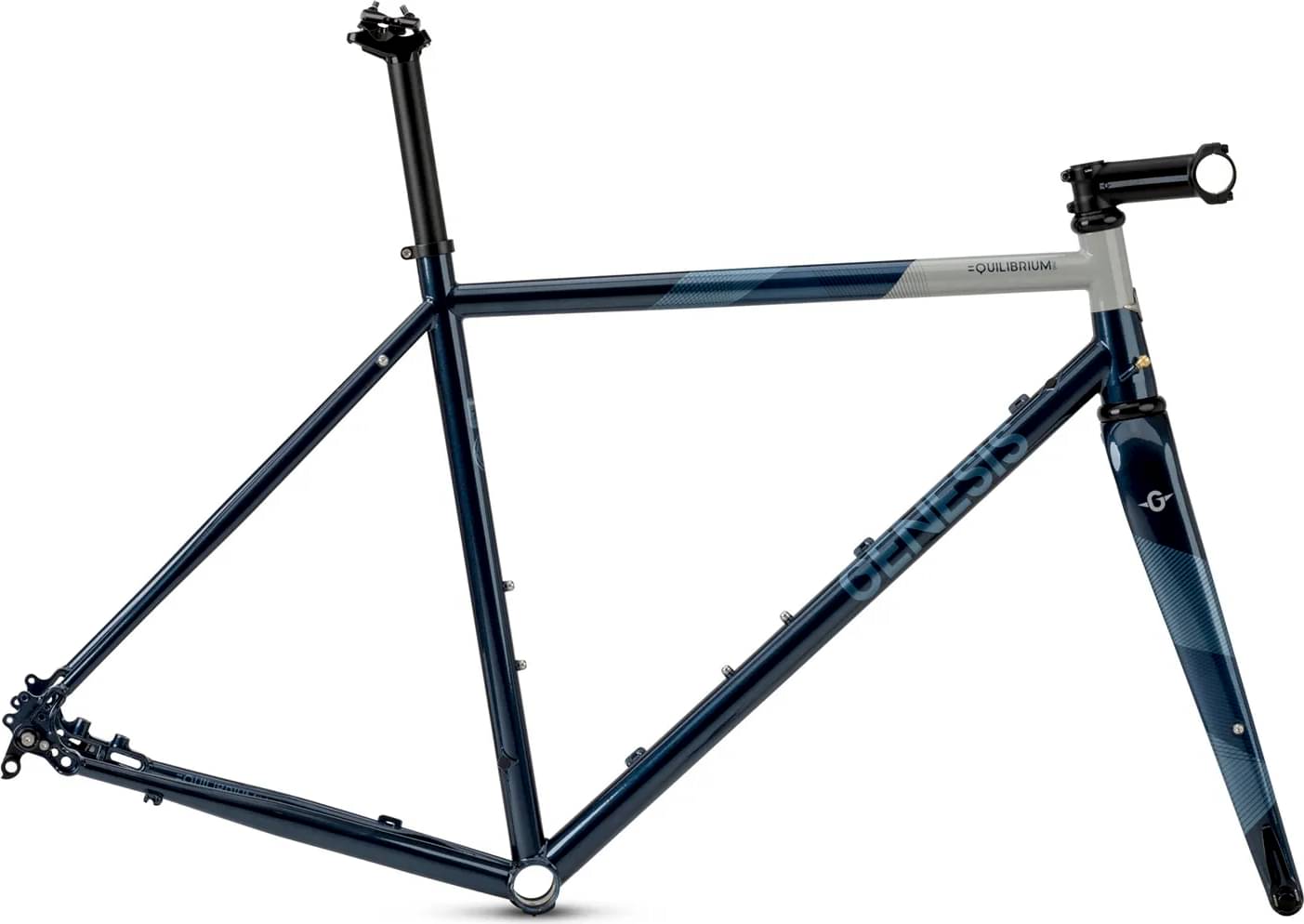

Genesis Equilibrium Disc Frameset 2023
2023 Road
Estimate price |
1,337$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Steel -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Steel
Suspension Fork
Genesis Carbon Road Disc
Cockpit
Headset
F17A Tapered 1 1/8 inch - 1 1/5 inch
Seat
Seatpost
27.2 mm Not Included
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.5 mm | 1.52 mm | 1.53 mm | 1.54 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 537 mm | 551 mm | 576 mm | 591 mm | 610 mm |
| Reach | 357 mm | 367 mm | 378 mm | 387 mm | 397 mm |
| Top Tube Length | 514 mm | 532 mm | 551 mm | 570 mm | 592 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 490 mm | 530 mm | 550 mm | 580 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 73 ° | 72 ° | 72 ° |
| Head Tube Length | 105 mm | 120 mm | 140 mm | 160 mm | 180 mm |
| Wheelbase | 982 mm | 992 mm | 995 mm | 1011 mm | 1027 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 741 mm | 765 mm | 807 mm | 818 mm | 891 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Equilibrium Disc Frameset is a Genesis Equilibrium model. Genesis launched 29 frames of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Genesis Equilibrium 725 Frameset 2023 is the cheapest frame model and costs 789$. Genesis Equilibrium Disc Frameset 2023 is the most expensive one and costs 1215$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Endurance frames average price
Our math shows that the average cost of a dependable Endurance frame is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1215$. If we compare this with the average Endurance frame cost we notice that the price is 56.79% lower.
Overview of components
Fork material
The fork on this frame is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
