Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Apex -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy
Drivetrain
Rear Derailleur
SRAM Apex 1 Long Cage 11 Speed
Shift Levers
SRAM Apex 11 Speed
Cassette
SRAM CS PG-1130 11-42T
Bottom Bracket
SRAM BB GXP
Chain
KMC X11
Wheels
Front Hub
KT Front - QL-SL2F / Rear QL-X2DR
Rear Hub
KT Front - QL-SL2F / Rear QL-X2DR
Rims
WTB ST I25 TCS 2.0
Spokes
Steel 14 g
Tires
WTB Venture 650 x 47c
Brakes
Brakes
TRP Spyre-C FM Mechanical Disc
Brake Levers
SRAM Apex 11 Speed
Cockpit
Stem
Genesis Alloy 31.8mm -6 deg 100 mm
Headset
F23A-2 Taper 1 1/8 inch - 1 1/5 inch
Seat
Saddle
Genesis
Seatpost
Genesis Alloy 27.2 x 350 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.53 mm | 1.54 mm | 1.55 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 558 mm | 577 mm | 596 mm | 615 mm |
| Reach | 367 mm | 377 mm | 387 mm | 397 mm |
| Top Tube Length | 537 mm | 553 mm | 569 mm | 585 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 125 mm | 145 mm | 165 mm | 185 mm |
| Wheelbase | 1014 mm | 1031 mm | 1047 mm | 1064 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 758 mm | 781 mm | 803 mm | 822 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model

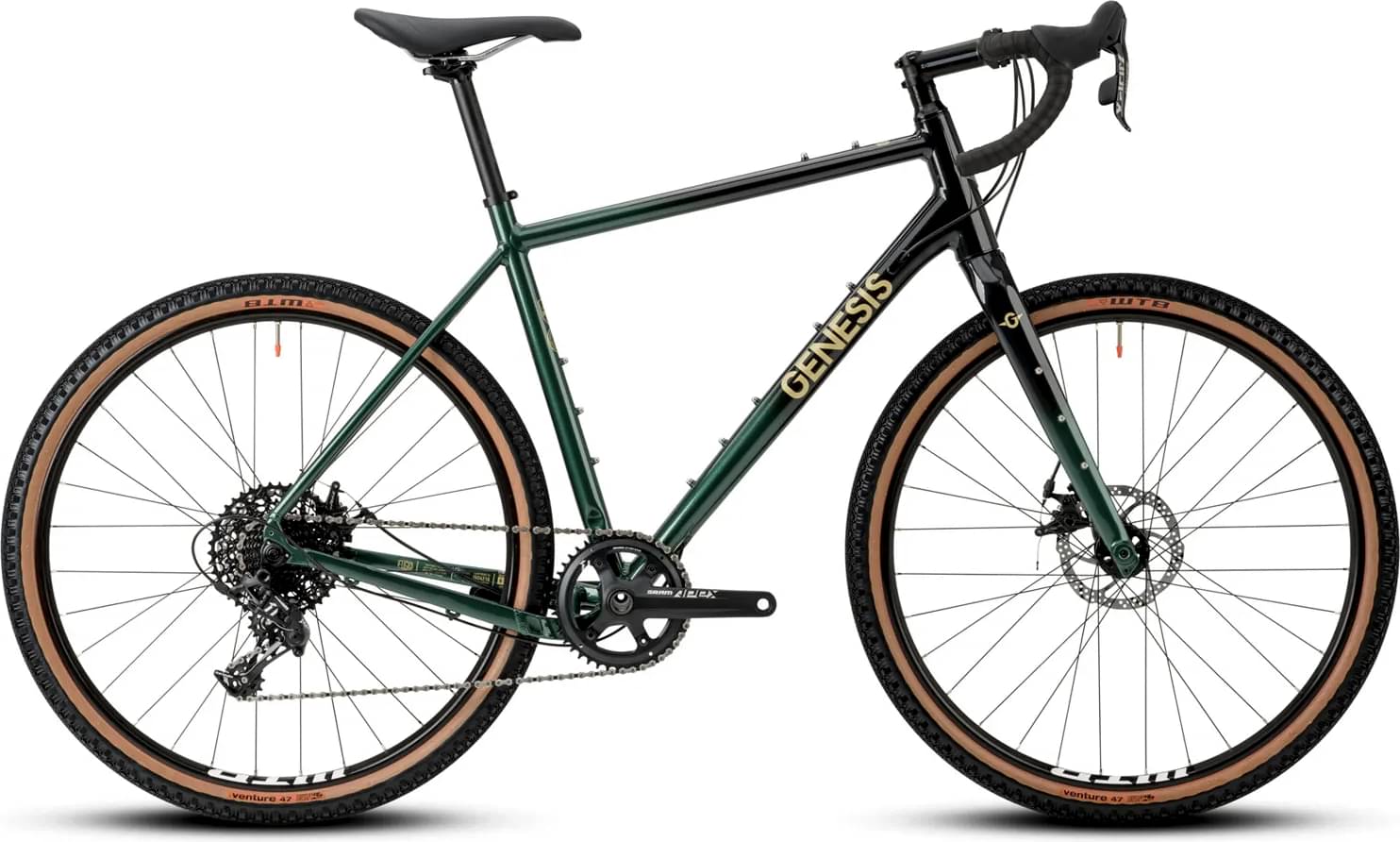

Fugio 10 belongs to the Genesis Fugio model. Genesis launched 21 bikes of this model so far. You can easily view all of the Genesis Fugio bikes models from 2023, here.
Model range prices
Genesis Fugio 10 2023 is the most affordable bike of this model and has a price of 2067$. On the other hand, Genesis Fugio 30 2023, is the most expensive and costs 3891$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Genesis Fugio 10 price was 2067$. In conclusion, this bike price is 19.11% smaller than the price of the average Gravel bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The wheels on Fugio 10 are the aluminum type. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Genesis Fugio 10 is equipped with Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, it won’t be difficult to find the right one for you.
