Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Steel -
Wheels 650b -
Suspension Rigid
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Steel
Cockpit
Headset
F17A Taper 1 1/8 inch - 1 1/5 inch
Seat
Seatpost
27.2 mm Not Included
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.53 mm | 1.54 mm | 1.55 mm | 1.56 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 558 mm | 577 mm | 596 mm | 615 mm | 633 mm |
| Reach | 367 mm | 377 mm | 387 mm | 397 mm | 407 mm |
| Top Tube Length | 537 mm | 553 mm | 569 mm | 585 mm | 600 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 550 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 125 mm | 145 mm | 165 mm | 185 mm | 205 mm |
| Wheelbase | 1014 mm | 1031 mm | 1047 mm | 1064 mm | 1079 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 758 mm | 781 mm | 803 mm | 822 mm | 845 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

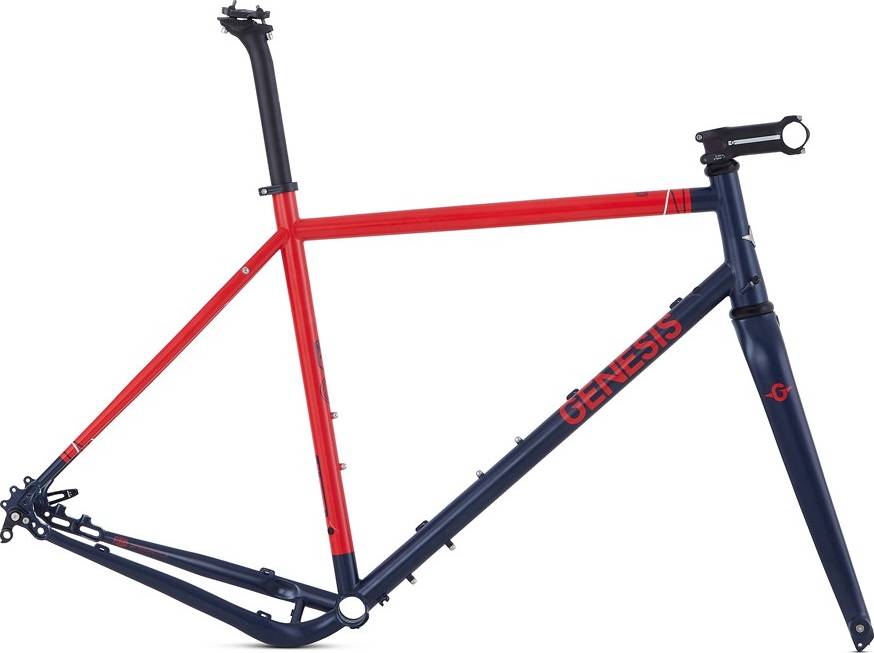

Fugio Frameset completes the Genesis Fugio model. Genesis released 21 frames variations of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel frames average price
According to our calculations, the average cost of a Gravel frame that is reliable is 1505$. However, even though the average price of a Gravel frame is lower, you might still be able to get a top-quality frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
This frame was released in 2019 and its price was 972$. Comparing the average cost of a Gravel frame to this one, you will see that Fugio Frameset price is 54.84% lower.
Overview of components
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
