Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Suspension Rigid
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.53 mm | 1.54 mm | 1.55 mm | 1.56 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 558 mm | 577 mm | 596 mm | 615 mm | 633 mm |
| Reach | 367 mm | 377 mm | 387 mm | 397 mm | 407 mm |
| Top Tube Length | 537 mm | 553 mm | 569 mm | 585 mm | 600 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 550 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 125 mm | 145 mm | 165 mm | 185 mm | 205 mm |
| Wheelbase | 1014 mm | 1031 mm | 1047 mm | 1064 mm | 1079 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 758 mm | 781 mm | 803 mm | 822 mm | 845 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

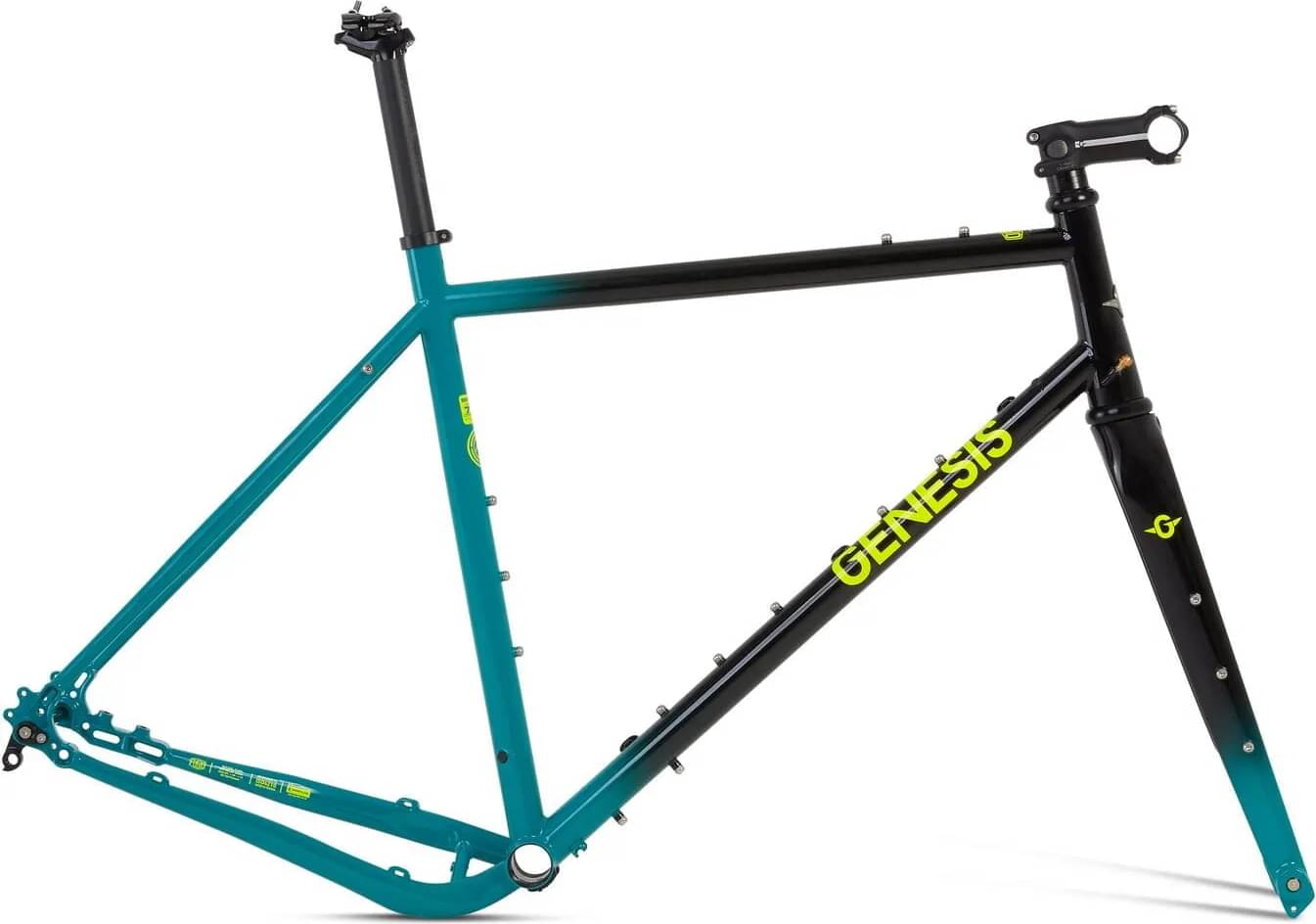

Fugio Frameset is part of the Genesis Fugio model. Genesis launched 21 frames of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel frames average price
If you want to purchase a solid Gravel frame, it is important to know that the average cost is 1505$. However, you could also get a good Gravel frame even if you pay a lower amount than the average price. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1458$. If we compare this with the average Gravel frame cost we notice that the price is 3.22% smaller.
Overview of components
Fork material
The fork on this frame is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Sizes
This frame is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
