Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Steel -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Genesis MjÖlnir Seamless Double-Butted Cromoly
Suspension Fork
Carbon Road Plus w/ 1-1/2"-1-1/8" Tapered Alloy Steerer
Drivetrain
Front Derailleur
28.6mm Band-on (not incl.)
Bottom Bracket
BSA 68mm (not incl.)
Cockpit
Headset
Prestine F-17-A 1-1/8" - 1-1/2" tapered
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.53 mm | 0.87 mm | 1.55 mm | 1.56 mm |
| Bottom Bracket Height | 284 mm | 284 mm | 284 mm | 284 mm | 284 mm |
| Front Center | 596 mm | 612 mm | 628 mm | 645 mm | 660 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Stack | 558 mm | 577 mm | 596 mm | 615 mm | 633 mm |
| Reach | 367 mm | 377 mm | 687 mm | 397 mm | 407 mm |
| Top Tube Length | 537 mm | 553 mm | 569 mm | 585 mm | 600 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 550 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 125 mm | 145 mm | 165 mm | 185 mm | 205 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1014 mm | 1031 mm | 1047 mm | 1064 mm | 1079 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 758 mm | 781 mm | 803 mm | 822 mm | 845 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |

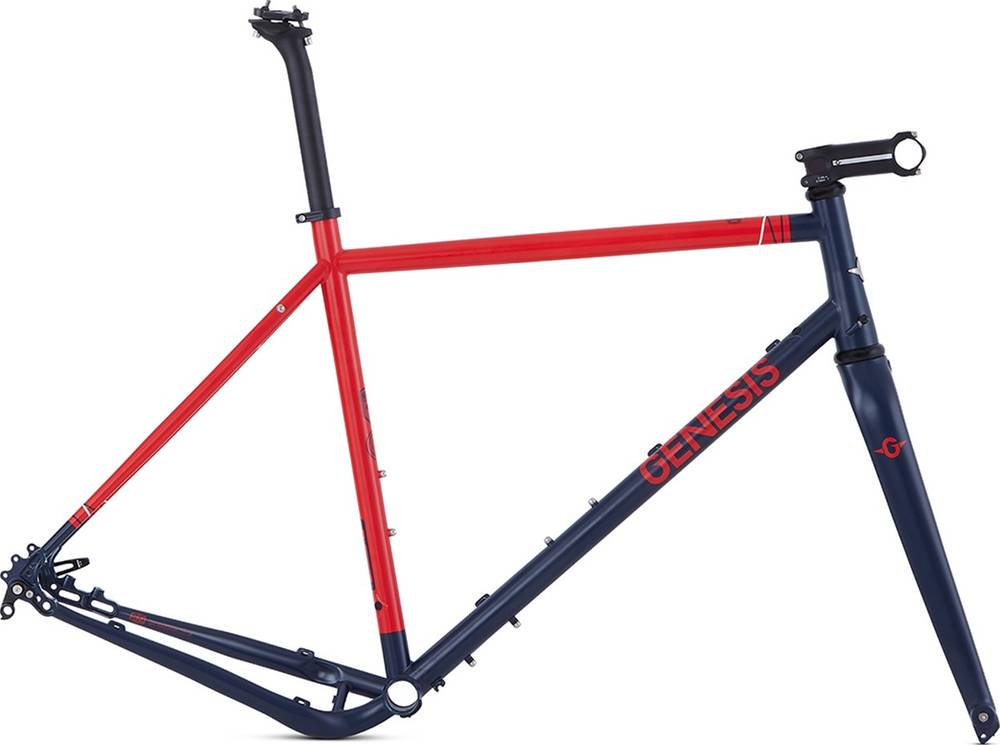

About this model
Fugio FS is a Genesis Fugio model. There are 21 frames that carry this model name. Check out the entire range from 2018 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel frames average price
According to our math, the average price for a trustworthy Gravel frame is 1505$. However, even though the average price of a Gravel frame is lower, you might still be able to get a top-quality frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 972$. Doing a quick comparison, we notice that Fugio FS price is 54.84% smaller than the average cost of a Gravel frame.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
