Bike details
Overview
Key information split into simple groups.

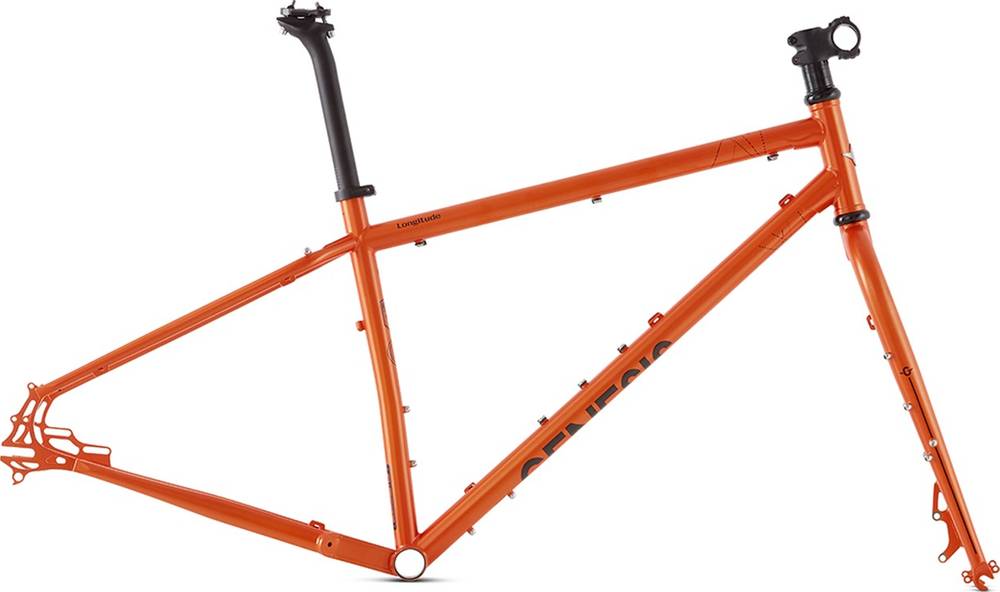

Frame summary
-
Category -
Frame Steel -
Wheels 27.5" -
Suspension Rigid
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Genesis MjÖlnir Seamless Double-Butted Cromoly w / mudguard & rack eyelets
Suspension Fork
DB Cr-Mo unicrown w / triple bottle boss & mudguard / rack eyelets
Drivetrain
Front Derailleur
34.9mm Band-on (not incl.)
Bottom Bracket
BSA 73mm Boost (not incl.)
Cockpit
Headset
PRESTINE PT-1767F
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.43 mm | 1.38 mm | 1.35 mm |
| Bottom Bracket Height | 278 mm | 278 mm | 278 mm | 278 mm |
| Front Center | 678 mm | 707 mm | 735 mm | 760 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 80 mm | 80 mm | 80 mm | 80 mm |
| Stack | 602 mm | 611 mm | 621 mm | 635 mm |
| Reach | 401 mm | 426 mm | 451 mm | 471 mm |
| Top Tube Length | 597 mm | 622 mm | 650 | 673 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 406 mm | 445 mm | 480 mm | 520 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 115 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1111 mm | 1140 mm | 1168 mm | 1193 mm |
| Bottom Bracket Drop | 77 mm | 77 mm | 77 mm | 77 mm |
| Standover Height | 772 mm | 793 mm | 812 mm | 843 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Longitude FS is a Genesis Longitude model. Genesis released 8 frames variations of this model so far. Take a sneak peek at all Genesis Longitude frames models from 2018, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry frames
If you want to purchase a solid Crosscountry frame, it is important to know that the average cost is 1689$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 546$. If we compare this with the average Crosscountry frame cost we notice that the price is 209.34% lower.
Overview of components
Fork material
The fork on this frame is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Sizes
Longitude FS comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
