Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Steel -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Reynolds 725 Heat-Treated Chromoly
Suspension Fork
Cr-Mo Unicrown Disc
Cockpit
Headset
Prestine PT-1606 1-1/8" semi cartridge
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.55 mm | 1.52 mm | 1.49 mm | 1.47 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 597 mm | 612 mm | 639 mm | 664 mm | 691 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 61 mm | 61 mm | 61 mm | 61 mm | 61 mm |
| Stack | 565 mm | 579 mm | 598 mm | 617 mm | 636 mm |
| Reach | 364 mm | 374 mm | 394 mm | 414 mm | 434 mm |
| Top Tube Length | 532 mm | 546 mm | 577 mm | 603 mm | 635 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 530 mm | 570 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 125 mm | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1040 mm | 1055 mm | 1082 mm | 1108 mm | 1135 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 757 mm | 777 mm | 798 mm | 806 mm | 842 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

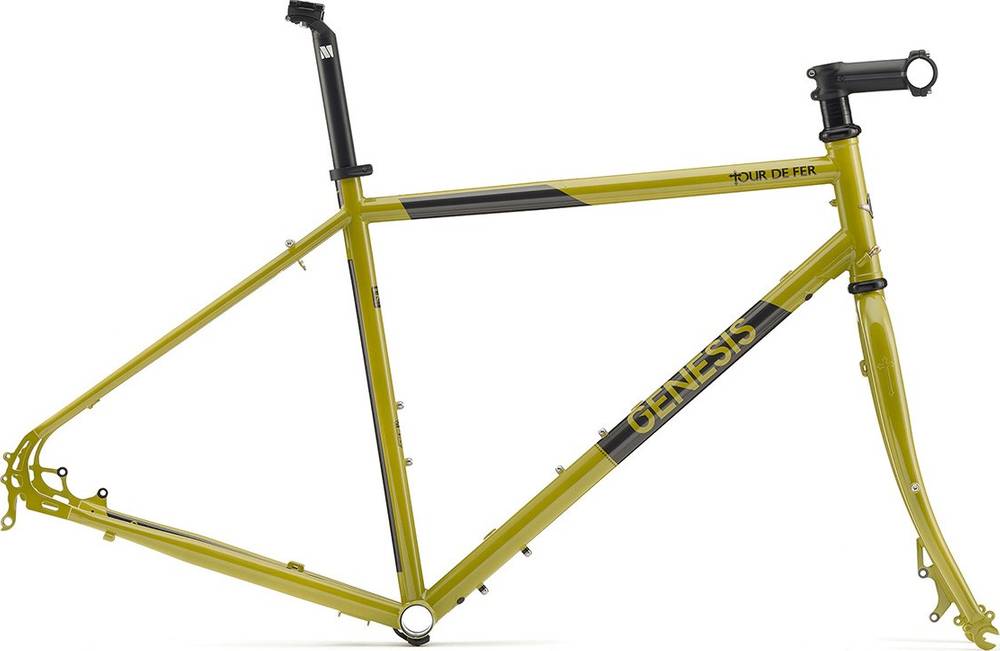

Tour De Fer FS is a Genesis Tour model. Genesis launched 25 frames of this model so far. You can easily view all of the Genesis Tour frames models from 2018, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel frames
If you want an acceptable Gravel frame you should know that the average price is 1505$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
When Genesis released this model in 2018, its price was 607$. Comparing the average cost of a Gravel frame to this one, you will see that Tour De Fer FS price is 147.94% lower.
Overview of components
Fork material
The fork is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
