Bike details
Overview
Key information split into simple groups.

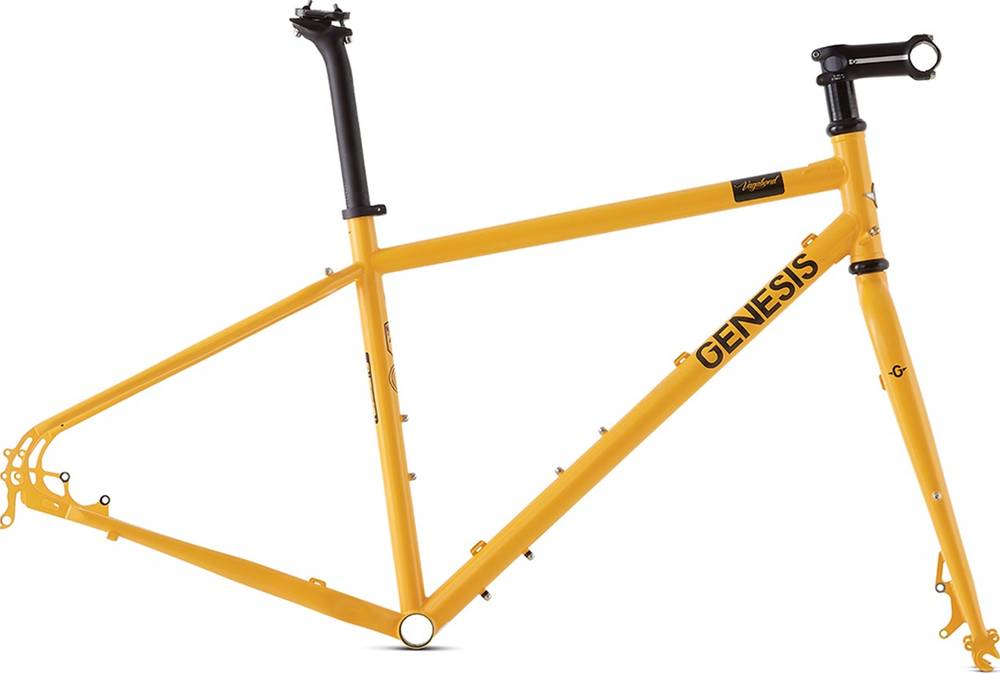

Frame summary
-
-
Frame Steel -
Wheels 29" -
Suspension Rigid
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Genesis MjÖlnir Seamless Double-Butted Cromoly
Suspension Fork
Cr-Mo Unicrown Disc
Drivetrain
Front Derailleur
28.6mm Band-on (not incl.)
Bottom Bracket
BSA 68mm (not incl.)
Cockpit
Headset
Prestine PT-1770 1-1/8" semi cartridge
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.67 mm | 1.63 mm | 1.59 mm | 1.58 mm |
| Front Center | 596 mm | 621 mm | 648 mm | 669 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 67 mm | 67 mm | 67 mm | 67 mm |
| Stack | 585 mm | 604 mm | 623 mm | 642 mm |
| Reach | 351 mm | 371 mm | 391 mm | 406 mm |
| Top Tube Length | 537 mm | 562 mm | 589 mm | 610 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 430 mm | 460 mm | 490 mm | 520 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 120 mm | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1026 mm | 1052 mm | 1079 mm | 1100 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 771 mm | 792 mm | 826 mm | 835 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Vagabond FS belongs to the Genesis Vagabond model. There are 12 frames that carry this model name. Take a sneak peek at all Genesis Vagabond frames models from 2018, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel frames
If you want to purchase a solid Gravel frame, it is important to know that the average cost is 1505$. However, this doesn’t mean that if you spend less money on a Gravel frame, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
This frame was released in 2018 and its price was 546$. In conclusion, this frame price is 175.64% lower than the price of the average Gravel frame.
Vagabond FS components
Fork material
The fork is made out of steel, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the frame.
Sizes
Vagabond FS comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
