Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
145cm - 159cm
XS
157cm - 168cm
SM
165cm - 176cm
MD
174cm - 183cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
24/30T Modulus Carbon Road Disc w/ Tapered Headtube & Fully Internal Cable Routing
Suspension Fork
Carbon Road w/ 1-1/2"-1-1/8" Tapered Alloy Steerer
Drivetrain
Rear Derailleur
Shimano Tiagra RD-4700 / SS cage
Front Derailleur
Shimano Tiagra FD-4700
Shift Levers
Shimano Tiagra ST-4700 / 2x10 speed
Cassette
Shimano CS-HG500-10 / 12-28T
Crank
Shimano Tiagra FC-4700 / 50-34T / XXS-XS, 165mm / S-M, 170mm
Bottom Bracket
Shimano BB-RS500
Chain
KMC x10
Pedals
NW-91K w/ Toeclip
Wheels
Front Hub
KT-G15F/G1ER 28h / front / rear
Rear Hub
KT-G15F/G1ER 28h / front / rear
Rims
Jalco MRX-24 / 28h
Spokes
Steel 14g
Tires
CST Compressor 700x25c 60TPI
Brakes
Brakes
Shimano Tiagra BR-4700
Brake Levers
Shimano Tiagra ST-4700
Cockpit
Stem
Genesis AS-007 / + - 7deg / XXS-XS, 80mm / S-M, 90mm
Handlebar
Genesis alloy / 125mm drop x 70mm reach / XXS-XS, 360mm / S-M, 380mm
Headset
Prestine PT-1860E 1-1/8" - 1-1/2" tapered
Seat
Saddle
Genesis Road Comfort WS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD |
|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.44 mm | 1.47 mm | 1.49 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 265 mm | 265 mm |
| Front Center | 594 mm | 601 mm | 600 mm | 606 mm |
| Rake | 52 mm | 52 mm | 52 mm | 52 mm |
| Trail | 59 mm | 59 mm | 59 mm | 56 mm |
| Stack | 525 mm | 539 mm | 557 mm | 573 mm |
| Reach | 383 mm | 374 mm | 380 mm | 384 mm |
| Top Tube Length | 514 mm | 529 mm | 545 mm | 557 mm |
| Seat Tube Angle | 76 ° | 74 ° | 73.5 ° | 73.3 ° |
| Seat Tube Length | 450 mm | 475 mm | 495 mm | 510 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 71.5 ° | 72 ° |
| Head Tube Length | 125 mm | 140 mm | 160 mm | 176 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 997 mm | 1004 mm | 1004 mm | 1010 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 71 mm | 71 mm |
| Standover Height | 733 mm | 754 mm | 768 mm | 783 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 145 cm | 157 cm | 165 cm | 174 cm |
| Rider Max Height | 159 cm | 168 cm | 176 cm | 183 cm |
About this model

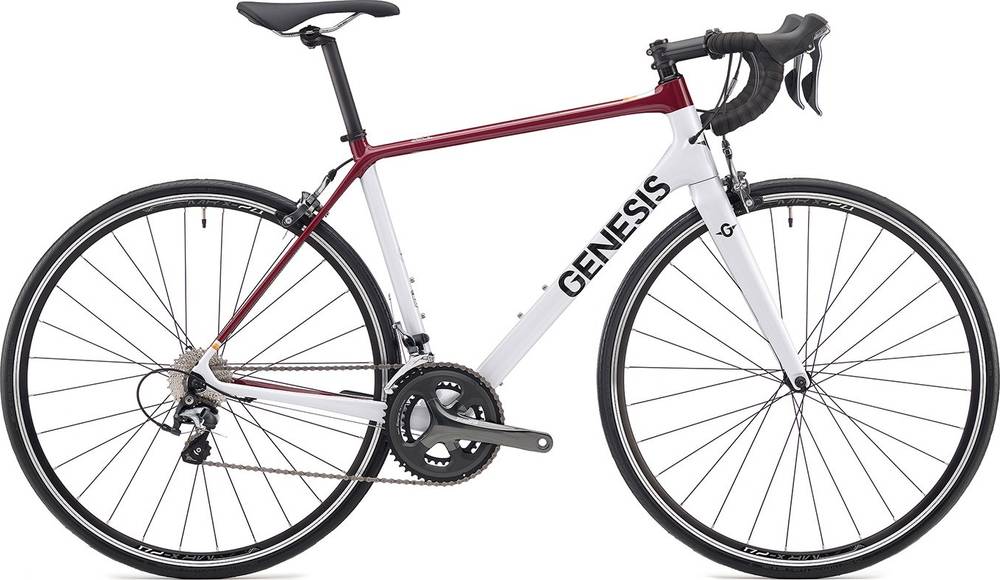

Zeal 10 W completes the Genesis Zeal model. Genesis released 7 bikes variations of this model so far. You can easily view all of the Genesis Zeal bikes models from 2018, here.
Model range prices
Genesis Zeal 10 W 2018 is the most economical model, with a starting price of 1611$. Genesis Zeal 20 MGT 2018 on the other hand costs 1823$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Endurance bikes average price
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Genesis Zeal 10 W price was 1611$. Comparing the average cost of an Endurance bike to this one, you will see that Zeal 10 W price is 45.62% lower.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Zeal 10 W components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the Zeal 10 W model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Genesis Zeal 10 W has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 145 cm – 183 cm (4.76 ft – 6 ft). In conclusion, it won’t take much to find one that’s right for you.
