Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 162mm -
Fork Formula Selva R
-
Groupset XX1 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

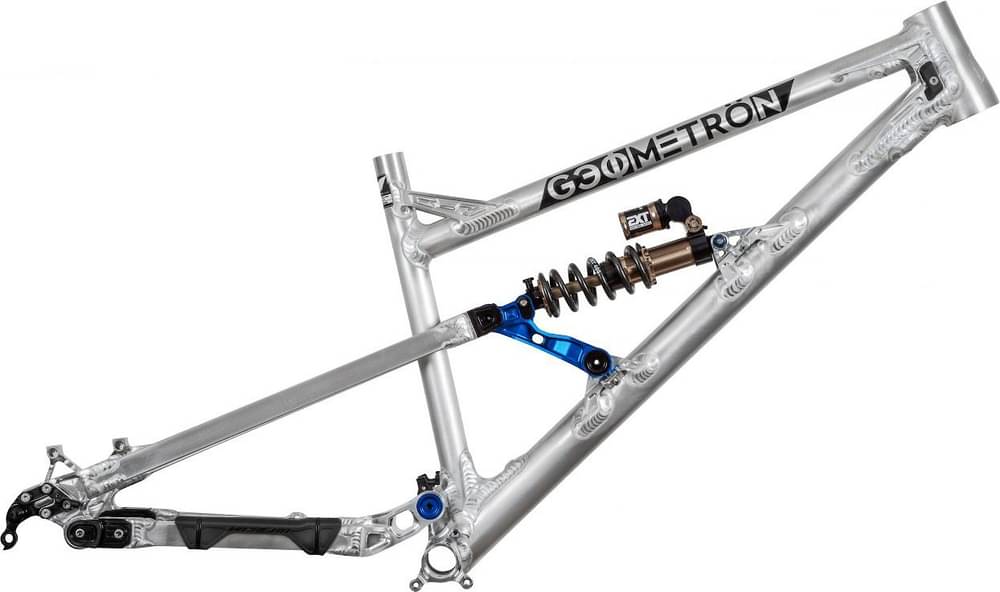

Frame
Frame
Aluminum
Suspension Fork
Formula Selva R or S, Mojo custom valved damper
Rear Shock
EXT Storia V3 Custom, negative spring, hydraulic bottom out, hydraulic top out, spherical eyelet bearings, 230mm x 65mm
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS, 12-speed, electronic wireless
Front Derailleur
None
Shift Levers
SRAM XX1 Eagle AXS Controller, 12-speed, electronic wireless
Cassette
SRAM XX1 Eagle XG-1299, 12-speed, 10-52 tooth, Rainbow finish
Crank
SRAM XX1 Eagle Carbon DUB, 170mm length
Bottom Bracket
SRAM DUB, 73mm English/BSA threaded
Chain
SRAM XX1 Eagle, 12-speed, Rainbow finish
Chain Guide
Hope Tech Slick Shorty
Pedals
None
Wheels
Front Hub
Hope Tech Pro4, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rear Hub
Hope Tech Pro4, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rims
Hope Tech Fortus
Spokes
Hope Tech wheelset
Tires
Front: Schwalbe Magic Mary, Super Gravity, Addix Ultra Soft, 2.4", Rear: Schwalbe Big Betty, Super Gravity, Addix Soft, 2.4"
Brakes
Brakes
Formula Cura 4 or Hope Tech 3 E4, 203mm front rotor, 180mm rear rotor
Brake Levers
Formula Cura 4 or Hope Tech 3 E4
Cockpit
Stem
Hope Tech AM, 0° rise, 35mm bar clamp
Handlebar
Renthal Fatbar, 800mm width, 20mm rise, 35mm clamp diameter
Grips
ODI Elite Pro MTB, lock-on, 130mm length
Headset
Hope Tech, ZS44 upper, ZS56 (29" or Hybrid) or EC56 (27.5") lower
Seat
Saddle
WTB Volt, 142mm width, titanium rails
Seatpost
BikeYoke Revive dropper, Triggy remote lever, Drop options: 160mm, 185mm, 213mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.31 mm | 1.26 mm | 1.23 mm | 1.2 mm | 1.17 mm |
| Stack | 613 mm | 622 mm | 631 mm | 640 mm | 647 mm |
| Reach | 468 mm | 493 mm | 513 mm | 533 mm | 553 mm |
| Top Tube Length | 598 mm | 620 mm | 640 mm | 657 mm | 679 mm |
| Seat Tube Angle | 78 ° | 78.5 ° | 78.75 ° | 79 ° | 79 ° |
| Seat Tube Length | 415 mm | 438 mm | 455 mm | 475 mm | 500 mm |
| Head Tube Angle | 62.5 ° | 62.5 ° | 62.5 ° | 62.5 ° | 62.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 444 mm | 444 mm | 451 mm | 451 mm | 456 mm |
| Wheelbase | 1269 mm | 1298 mm | 1322 mm | 1345 mm | 1369 mm |
| Standover Height | 726 mm | 726 mm | 726 mm | 746 mm | 768 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
Model Overview
G1 SRAM XX1 Eagle AXS belongs to the Geometron G1 model. GeoMetron released 4 frames variations of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro frames
Our math shows that the average cost of a dependable Enduro frame is 1895$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Overview of components
Fork
This frame has the Formula Selva R fork installed. The fork’s travel is 170mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this frame is EXT Storia V3 Custom, with a travel distance of 162mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When leaving the production line, the G1 SRAM XX1 Eagle AXS model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This frame has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Dropper post
A dropper post is included with the G1 SRAM XX1 Eagle AXS. Therefore, climbing or descending will be a breeze.
