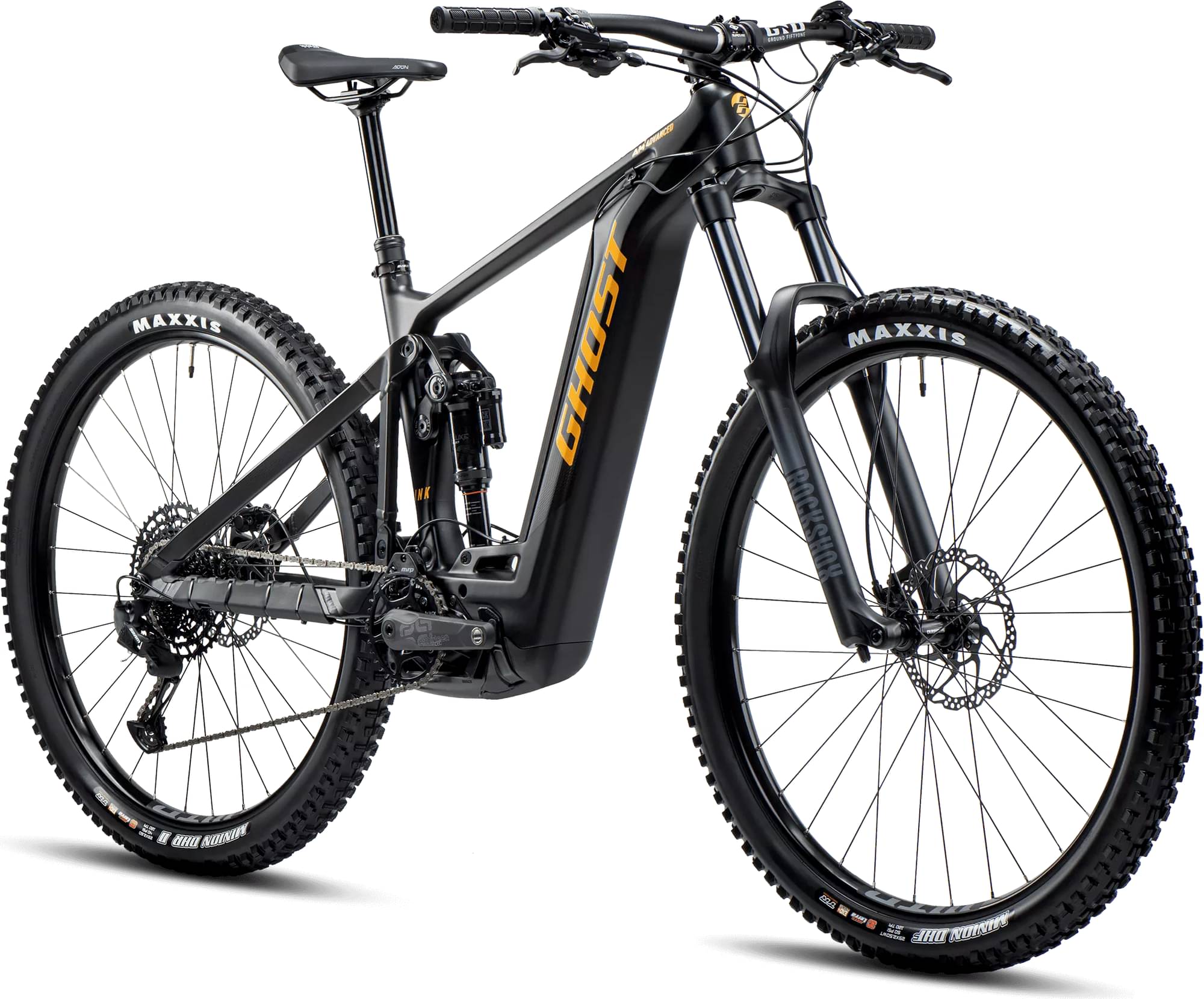

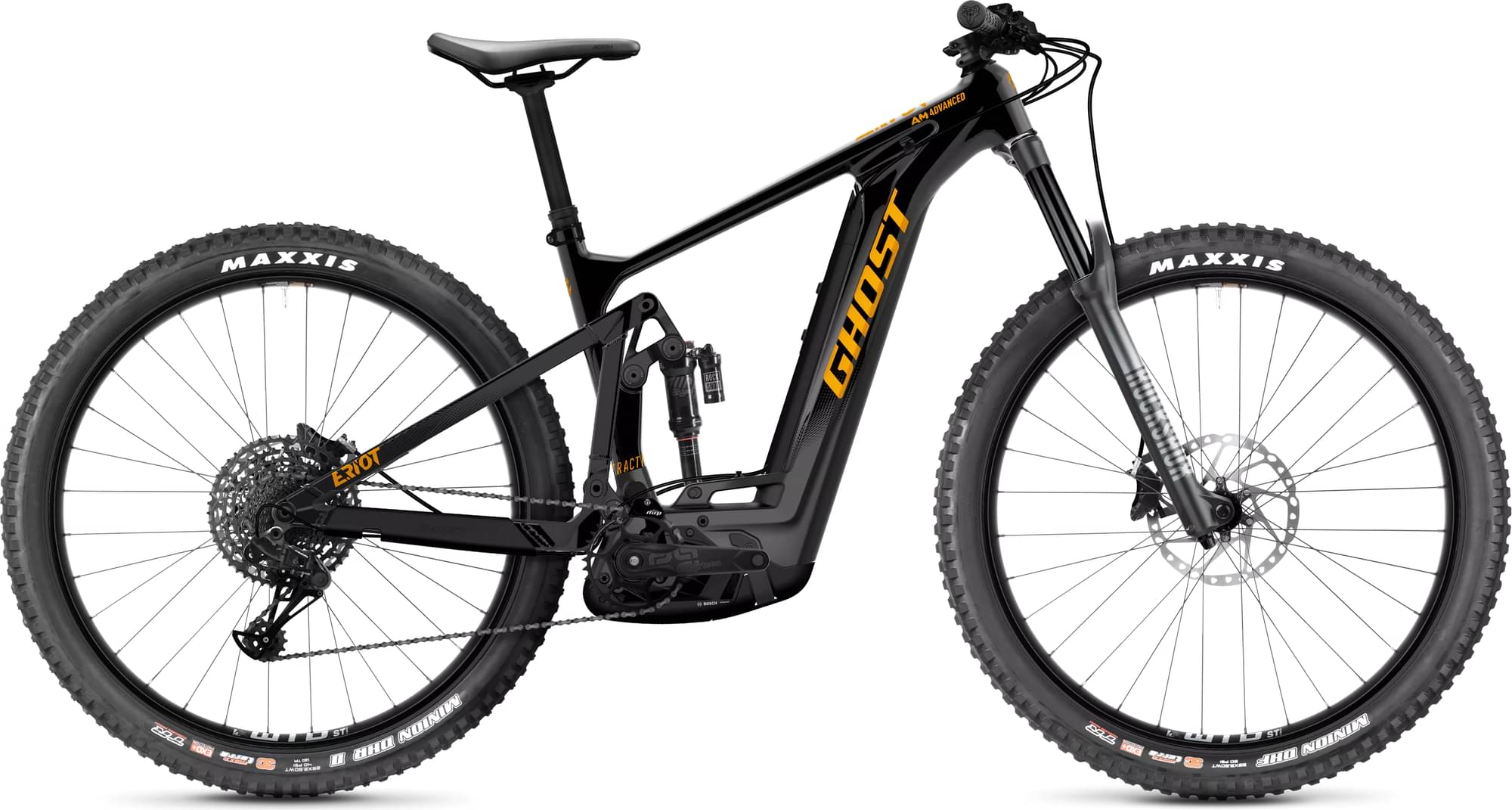

Ghost E-Riot AM CF Advanced 2023
2023 E-bike
Estimate price |
7,454$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox 35 Silver
-
Groupset SX Eagle, e*thirteen -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Power Tube 750 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
164cm - 173cm
MD
171cm - 181cm
LG
179cm - 189cm
XL
187cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components

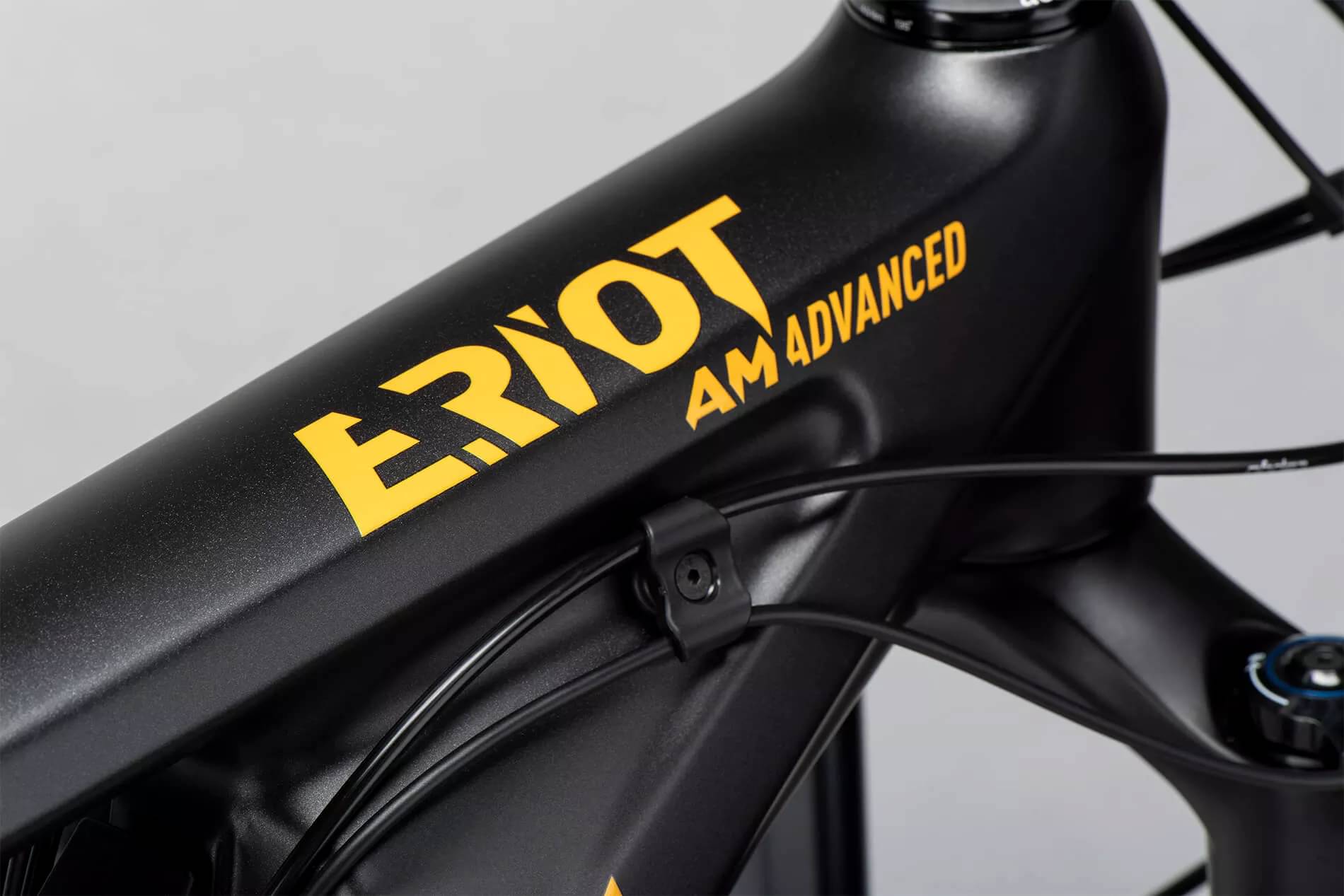

Frame
Frame
E-RIOT CF (S:27.5 M-XL:29)
Suspension Fork
Rock Shox 35 Silver TK Solo Air 160 mm
Rear Shock
Rock Shox Super Deluxe Select R 160 mm

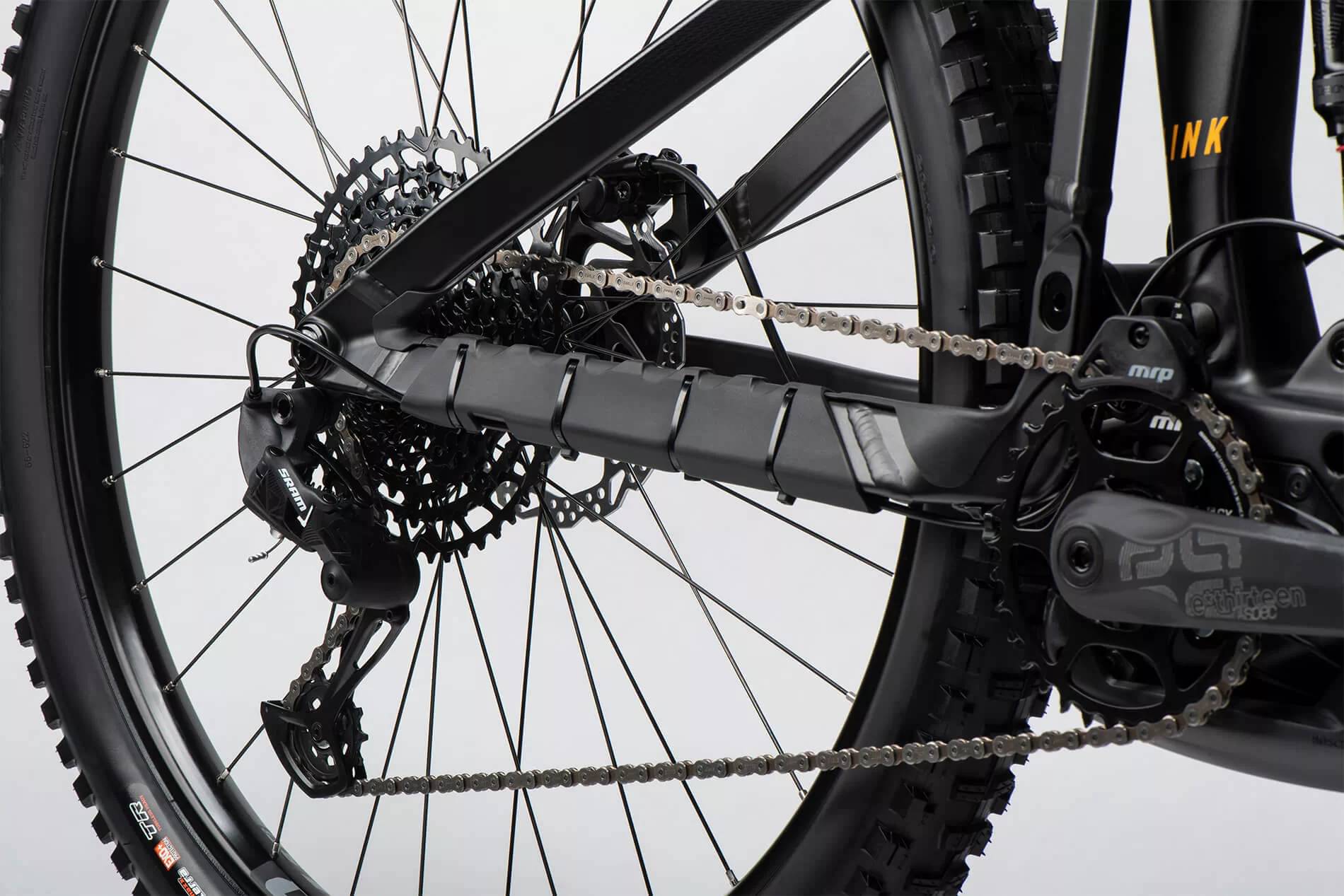

Drivetrain
Rear Derailleur
SRAM SX Eagle 12-S
Cassette
SRAM PG-1210 11-50
Crank
e*thirteen e*spec Plus 34T
Chain
SRAM SX Eagle
Chain Guide
MRP 1x
Pedals
VPE-527
Wheels
Rims
WTB ST i30
Tires
Front: Maxxis Minion DHF 3C MaxxTerra Exo+ 2.5 (S 27,5"; M-XL 29"), Rear: Maxxis Minion DHF 3C MaxxTerra Exo+ 2.5 (S 27,5"; M-XL 29")

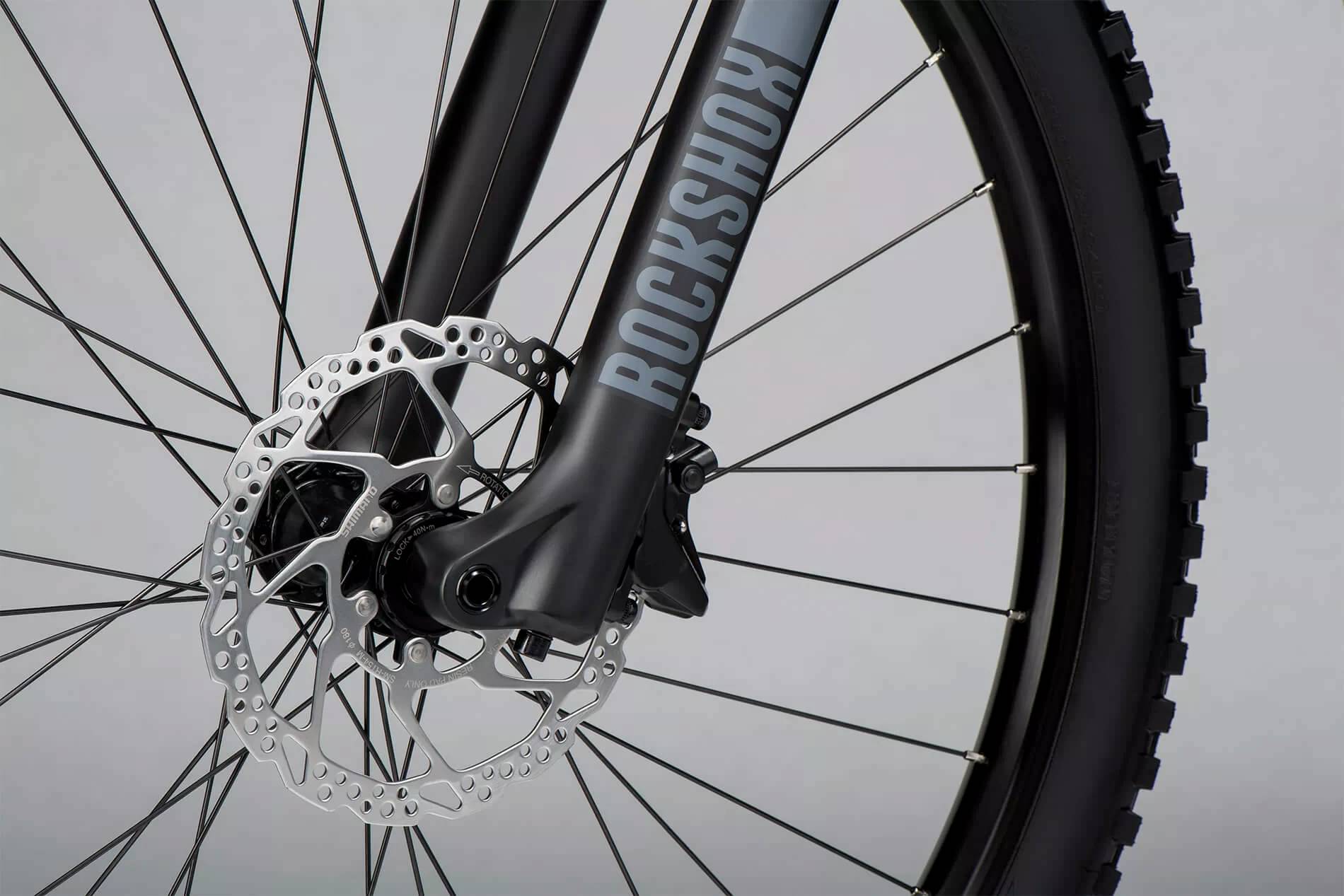

Brakes
Brakes
Shimano BR-MT420 203 mm Disc
Brake Levers
Shimano BL-MT401

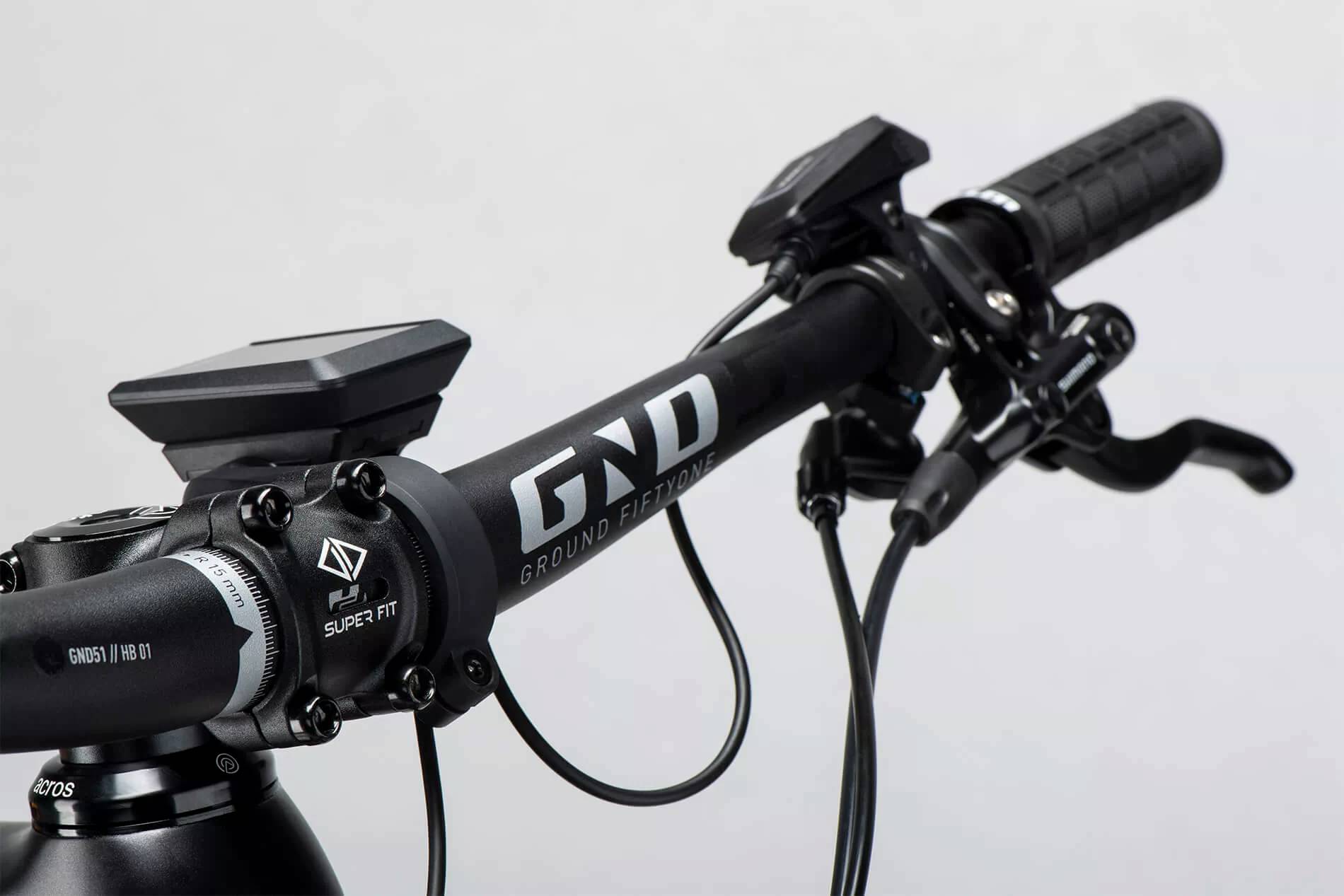

Cockpit
Stem
Ground Fiftyone Dia. 31.8 mm
Handlebar
Ground Fiftyone Dia. 31.8 mm 760/15 (S) 780/15 (M-L) 780/40 (XL)
Grips
WTB Wafel
Seat
Saddle
Fizik Terra Aidon
Seatpost
Ghost Alpha 1 34.9 mm 125 (S) 150 (M) 170 (L/XL)

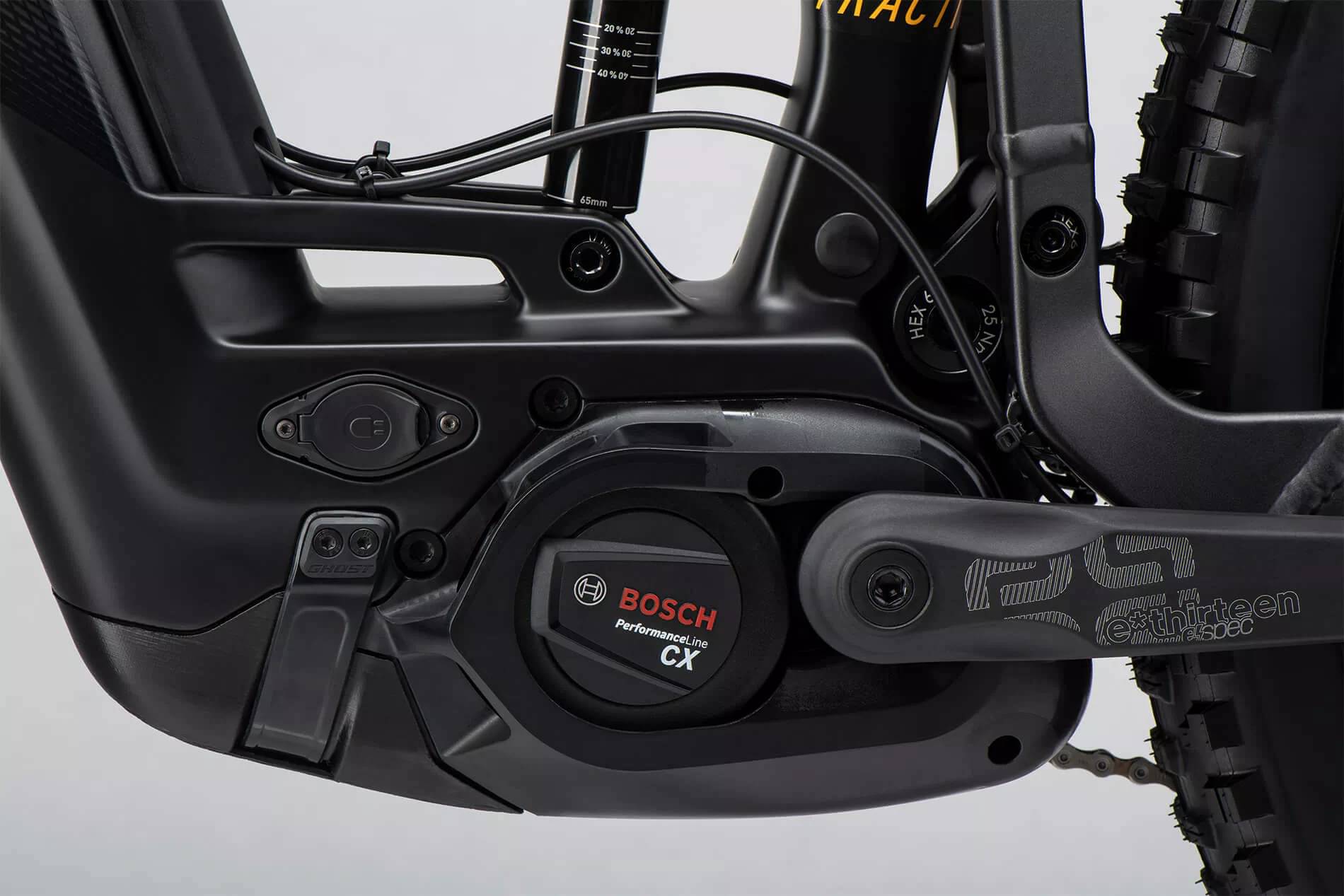

Motor & Battery
Motor
Bosch Performance Line CX
Battery
Bosch Power Tube 750 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.396 mm | 1.34 mm | 1.356 mm | 1.314 mm |
| Bottom Bracket Height | 331 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 763 mm | 795 mm | 832 mm | 870 mm |
| Rake | 46 mm | 53 mm | 53 mm | 52 mm |
| Trail | 111 mm | 112 mm | 112 mm | 114 mm |
| Stack | 617 mm | 627 mm | 663 mm | 682 mm |
| Reach | 442 mm | 468 mm | 489 mm | 519 mm |
| Top Tube Length | 588 mm | 618 mm | 648 mm | 682 mm |
| Seat Tube Angle | 76 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 417 mm | 441 mm | 465 mm | 489 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 120 mm | 100 mm | 140 mm | 160 mm |
| Chainstay Length | 435 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1197 mm | 1248 mm | 1285 mm | 1323 mm |
| Bottom Bracket Drop | 24 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 746 mm | 740 mm | 748 mm | 751 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 164 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 173 cm | 181 cm | 189 cm | 198 cm |
Model Overview
E-Riot AM CF Advanced belongs to the Ghost E E Riot model. There are 26 e-bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Ghost E-Riot Trail AL Essential 2023 has a starting price of 5202$. Ghost E-Riot AM Full Party 2023 on the other hand is the most expensive at 9555$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro e-bikes
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6901$. If we compare this with the average Enduro e-bike cost we notice that the price is 44.22% higher.
E-Riot AM CF Advanced components

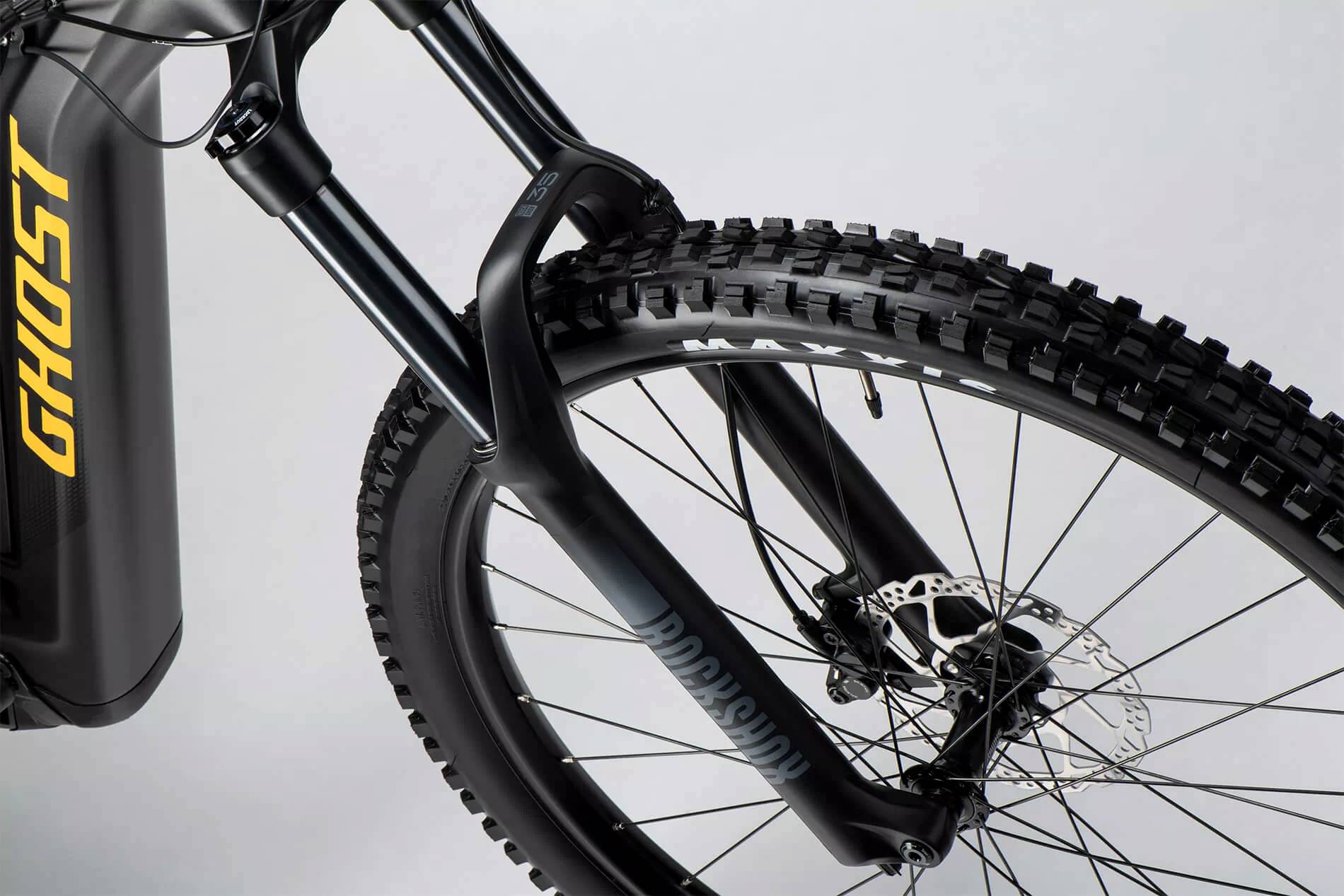

Fork
The E-Riot AM CF Advanced comes factory-installed with the RockShox 35 Silver fork. This has a travel range of 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.

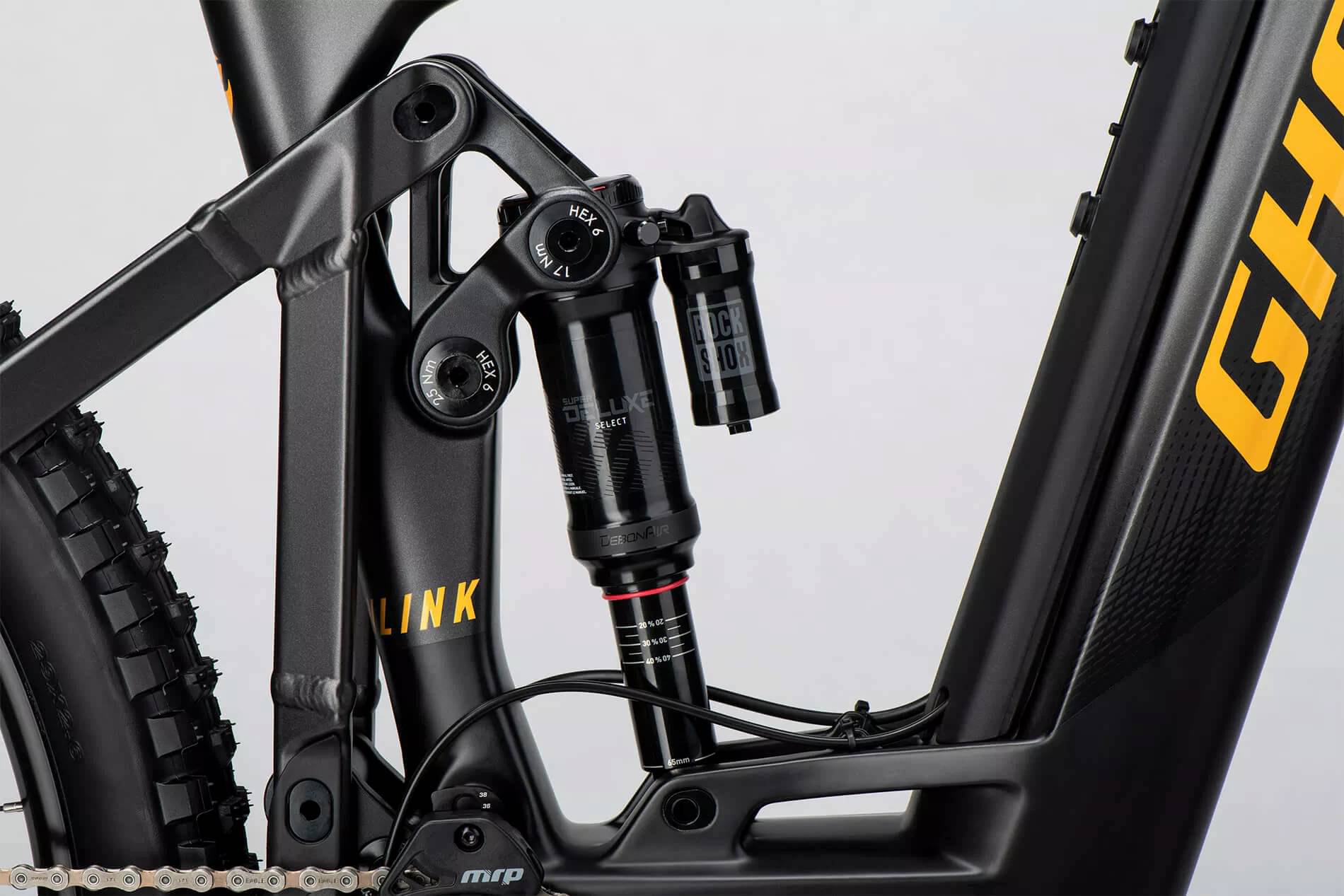

Rear Shock
From the factory, it comes with the Rock Shox Super Deluxe Select R 160 mm rear shock model, which has a travel of 160mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
As for the wheels, Ghost E-Riot AM CF Advanced 2023, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Ghost E-Riot AM CF Advanced is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
E-Riot AM CF Advanced comes in 4 sizes, that range from 164 cm – 198 cm (5.38 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Ghost model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
