Ghost E-Riot AM Pro 2023
2023 E-bike
Estimate price |
8,372$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox ZEB Select
-
Groupset GX Eagle, e*thirteen -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Power Tube 750 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
164cm - 173cm
MD
171cm - 181cm
LG
179cm - 189cm
XL
187cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-RIOT CF (S:27.5 M-XL:29)
Suspension Fork
Rock Shox ZEB Select 160 mm
Rear Shock
Rock Shox Super Deluxe Select R 160 mm
Drivetrain
Rear Derailleur
SRAM GX Eagle 12-S
Cassette
SRAM PG-1230 11-50
Crank
e*thirteen e*spec Plus 34T
Chain
SRAM SX Eagle
Chain Guide
MRP 1x
Pedals
VPE-527
Wheels
Front Hub
Shimano HB-MT400-B 15x110 mm
Rear Hub
Shimano FH-MT400-B 12x148 mm
Rims
WTB ST i30
Tires
Front: Maxxis Minion DHF 3C MaxxTerra Exo+ 2.5 (S 27,5"; M-XL 29"), Rear: Maxxis Minion DHF 3C MaxxTerra Exo+ 2.5 (S 27,5"; M-XL 29")
Brakes
Brakes
Shimano BR-MT520 203 mm Disc
Brake Levers
Shimano BL-MT501
Cockpit
Stem
Ground Fiftyone Dia. 31.8 mm
Handlebar
Ground Fiftyone Dia. 31.8 mm 760/15 (S) 780/25 (M-XL)
Grips
WTB Wafel
Headset
Acros Blocklock 135° AZX-582
Seat
Saddle
Fizik Terra Aidon
Seatpost
Ghost Alpha 1 34.9 mm 125 (S) 150 (M) 170 (L/XL)
Motor & Battery
Motor

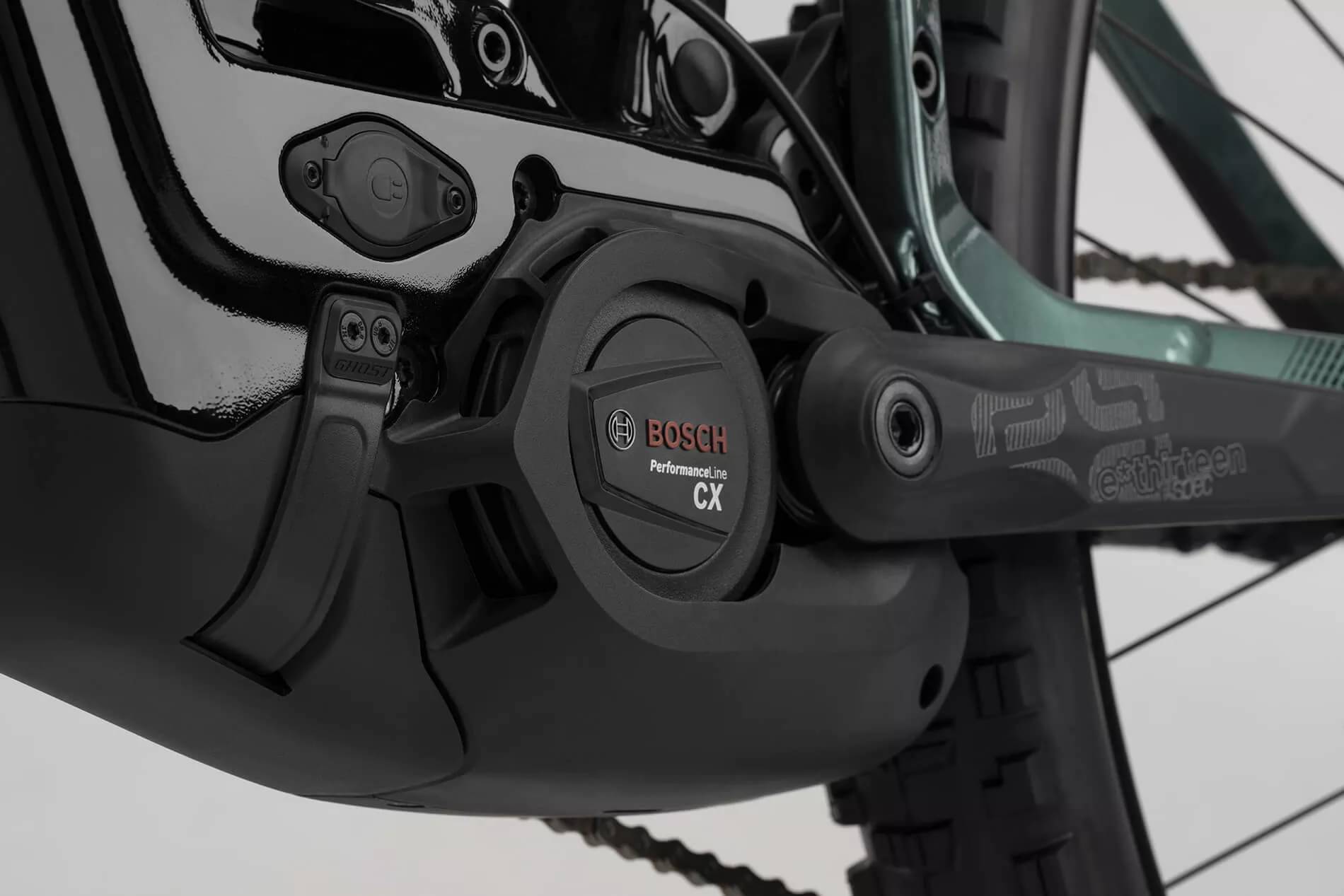

Bosch Performance Line CX
Battery
Bosch Power Tube 750 Wh
Charger
Bosch Charger 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.396 mm | 1.34 mm | 1.356 mm | 1.314 mm |
| Bottom Bracket Height | 331 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 763 mm | 795 mm | 832 mm | 870 mm |
| Rake | 46 mm | 53 mm | 53 mm | 52 mm |
| Trail | 111 mm | 112 mm | 112 mm | 114 mm |
| Stack | 617 mm | 627 mm | 663 mm | 682 mm |
| Reach | 442 mm | 468 mm | 489 mm | 519 mm |
| Top Tube Length | 588 mm | 618 mm | 648 mm | 682 mm |
| Seat Tube Angle | 76 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 417 mm | 441 mm | 465 mm | 489 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 120 mm | 100 mm | 140 mm | 160 mm |
| Chainstay Length | 435 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1197 mm | 1248 mm | 1285 mm | 1323 mm |
| Bottom Bracket Drop | 24 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 746 mm | 740 mm | 748 mm | 751 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 164 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 173 cm | 181 cm | 189 cm | 198 cm |
About this model
E-Riot AM Pro completes the Ghost E E Riot model. Ghost launched 26 e-bikes of this model so far. Take a sneak peek at all Ghost E E Riot e-bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Ghost E-Riot Trail AL Essential 2023 has a starting price of 5202$. Ghost E-Riot AM Full Party 2023 on the other hand is the most expensive at 9555$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro e-bikes average price
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2023 for 7750$. Doing a quick comparison, we notice that E-Riot AM Pro price is 61.96% higher than the average cost of an Enduro e-bike.
E-Riot AM Pro components
Fork
The RockShox ZEB Select is included from the factory. It has a travel distance of 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this e-bike is Rock Shox Super Deluxe Select R 160 mm, with a travel distance of 160mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When it comes to wheels, the E-Riot AM Pro e-bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the e-bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Ghost E-Riot AM Pro is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 164 cm – 198 cm (5.38 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Ghost model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
