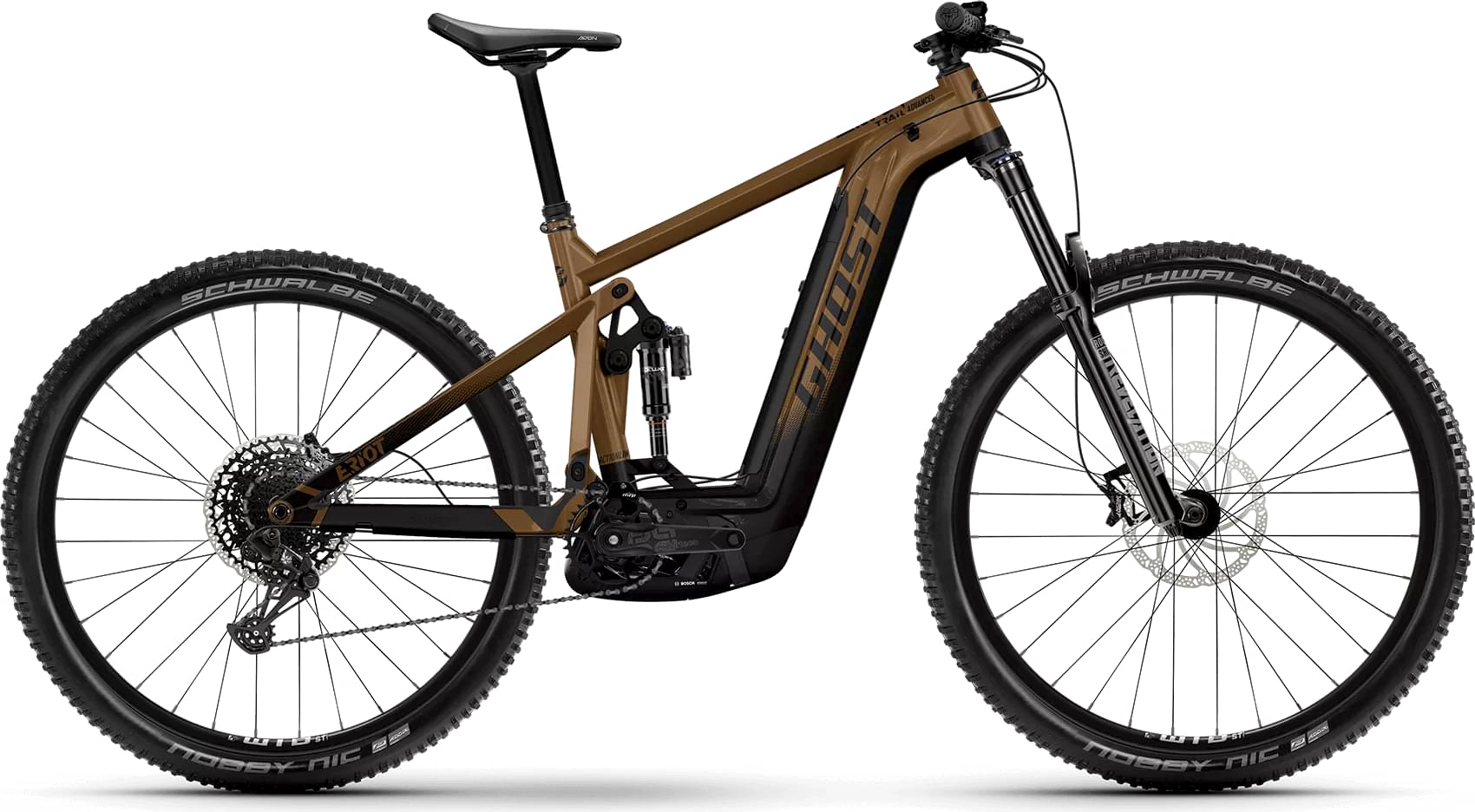

Ghost E-Riot Trail Advanced 2023
2023 E-bike
Estimate price |
6,651$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Revelation RC
-
Groupset NX Eagle, e*thirteen -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Power Tube 750 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
164cm - 173cm
MD
171cm - 181cm
LG
179cm - 189cm
XL
187cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-RIOT AL (S:27.5 M-XL:29)
Suspension Fork
Rock Shox Revelation 150 mm
Rear Shock
Rock Shox Super Deluxe Select+ RT 140 mm
Drivetrain
Rear Derailleur
SRAM NX Eagle 12-S
Cassette
SRAM PG-1230 11-50
Crank
e*thirteen e*spec Plus 34T
Chain
SRAM NX Eagle
Chain Guide
MRP 1x
Pedals
VPE-527
Wheels
Rims
WTB ST i30
Tires
Front: Schwalbe Nobby Nic Performance 2.6 (S 27,5"; M-XL 29"), Rear: Schwalbe Nobby Nic Performance 2.6 (S 27,5"; M-XL 29")
Brakes
Brakes
Tektro HD-M750 203 mm Disc
Brake Levers
Tektro HD-M750
Cockpit
Stem
Ground Fiftyone Dia. 31.8 mm
Handlebar
Ground Fiftyone Dia. 31.8 mm 760/15 (S) 780/25 (M-XL)
Grips
WTB Wafel
Seat
Saddle
Fizik Terra Aidon
Seatpost
Ghost Alpha 1 34.9 mm 125 (S) 150 (M) 170 (L/XL)
Motor & Battery
Motor
Bosch Performance Line CX
Battery
Bosch Power Tube 750 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.396 mm | 1.34 mm | 1.356 mm | 1.314 mm |
| Bottom Bracket Height | 331 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 763 mm | 795 mm | 832 mm | 870 mm |
| Rake | 46 mm | 53 mm | 53 mm | 52 mm |
| Trail | 111 mm | 112 mm | 112 mm | 114 mm |
| Stack | 617 mm | 627 mm | 663 mm | 682 mm |
| Reach | 442 mm | 468 mm | 489 mm | 519 mm |
| Top Tube Length | 588 mm | 618 mm | 648 mm | 682 mm |
| Seat Tube Angle | 76 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 417 mm | 441 mm | 465 mm | 489 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 120 mm | 100 mm | 140 mm | 160 mm |
| Chainstay Length | 435 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1197 mm | 1248 mm | 1285 mm | 1323 mm |
| Bottom Bracket Drop | 24 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 746 mm | 740 mm | 748 mm | 751 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 164 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 173 cm | 181 cm | 189 cm | 198 cm |
Model Overview
E-Riot Trail Advanced is part of the Ghost E E Riot model. Ghost released 26 e-bikes variations of this model so far. Take a sneak peek at all Ghost E E Riot e-bikes models from 2023, by clicking here.
Model range prices
Ghost E-Riot Trail AL Essential 2023 is the most economical model, with a starting price of 5202$. Ghost E-Riot AM Full Party 2023 on the other hand costs 9555$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6157$. In conclusion, this e-bike price is 82.97% higher than the price of the average Trail e-bike.
E-Riot Trail Advanced components
Fork
The E-Riot Trail Advanced comes factory-installed with the RockShox Revelation RC fork. This has a travel range of 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The E-Riot Trail Advanced has a rear shock with a travel of 140mm. The model Rock Shox Super Deluxe Select+ RT 140 mm is the one installed in this e-bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When it comes to wheels, the E-Riot Trail Advanced e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Ghost E-Riot Trail Advanced is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Ghost E-Riot Trail Advanced e-bike has 4 sizes, in the range of 164 cm – 198 cm (5.38 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Ghost model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
