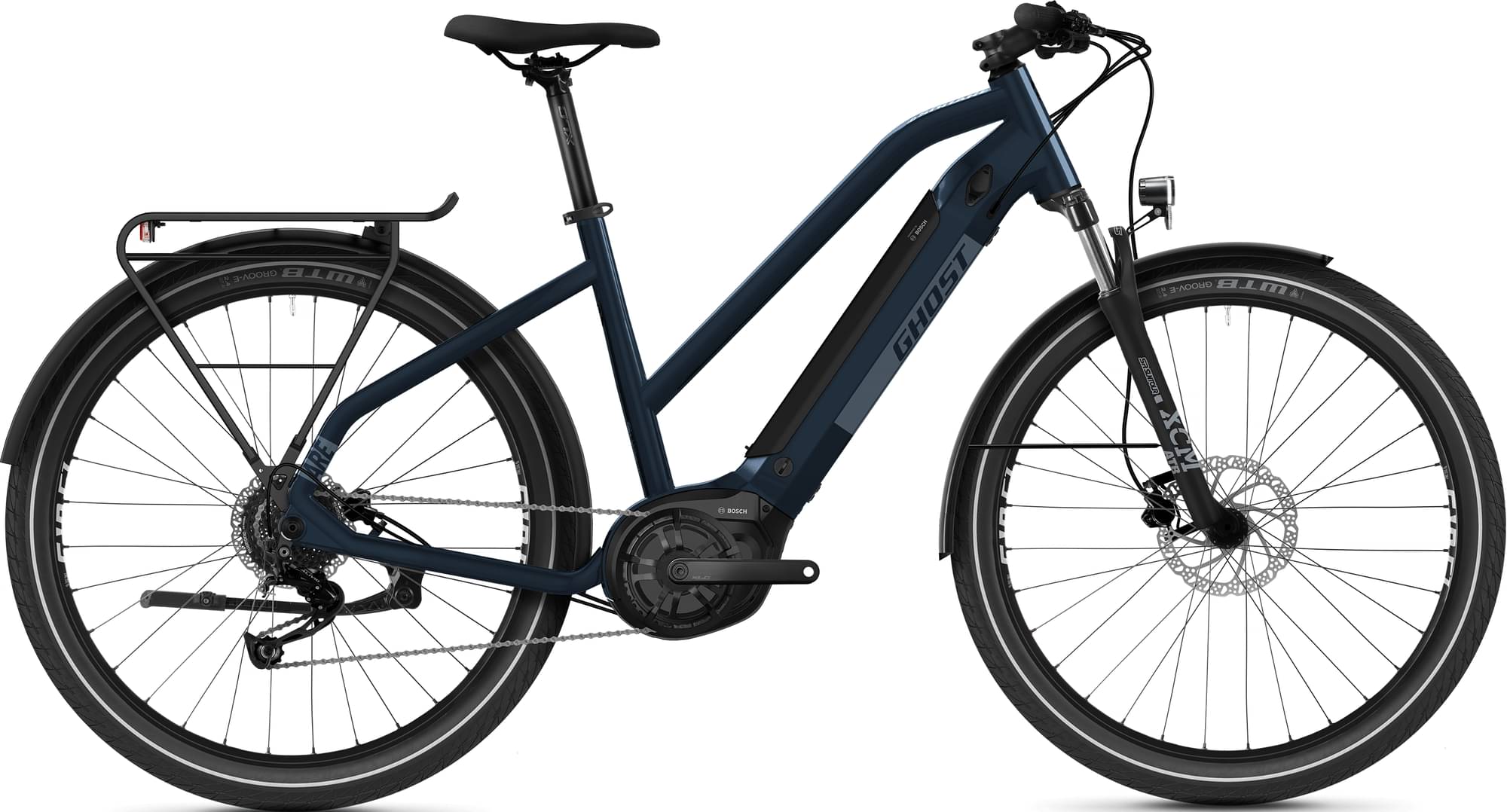

Ghost E-SQUARE Trekking Universal W 2021
2021 E-bike
Estimate price |
3,096$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 80mm -
Fork Suntour XCM
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch Power Tube 500 Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-SQUARE Trekking AL
Suspension Fork
SR Suntour XCM ATB DS 80 mm
Drivetrain
Rear Derailleur
Shimano Alivio RD-M3100 9-S
Cassette
Shimano CS-HG-200-9 11-36
Crank
Miranda Virage 38T
Wheels
Front Hub
Fastace DN619 QR 9x100 mm
Rear Hub
Fastace DA201-R 12x148 mm
Rims
Schürman YAK Disc 584-25 32H
Tires
WTB Groov-E 2.4
Brakes
Brakes
Tektro HD-T275 180 mm Disc
Cockpit
Stem
GHOST SQUARE Dia. 31.8 mm
Handlebar
XLC 720 mm Rise 15 mm Dia. 31.8 mm
Seat
Saddle
Justek 3050 DRN
Seatpost
XLC 31.6 mm
Motor & Battery
Motor
Bosch Performance Cruise
Battery
Bosch Power Tube 500 Wh
Remote
Bosch Purion
Charger
Bosch Charger 2 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.51 mm | 1.42 mm |
| Front Center | 679 mm | 713 mm | 748 mm |
| Rake | -1010 mm | -785 mm | -124 mm |
| Trail | 985 mm | 712 mm | -324 mm |
| Stack | 616 mm | 611 mm | 606 mm |
| Reach | 380 mm | 404 mm | 428 mm |
| Top Tube Length | 538 mm | 568 mm | 597 mm |
| Seat Tube Angle | 54 ° | 54 ° | ° |
| Seat Tube Length | 665 mm | 665 mm | 665 mm |
| Head Tube Length | 145 mm | 170 mm | 200 mm |
| Wheelbase | 483 mm | 483 mm | 483 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm |
| Standover Height | 603 mm | 626 mm | 648 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
E-SQUARE Trekking Universal W completes the Ghost E E Square model. Ghost released 8 e-bikes variations of this model so far. You can easily view all of the Ghost E E Square e-bikes models from 2021, here.
Model range prices
The most economical model, the Ghost E-SQUARE CROSS Essential W 2021 has a starting price of 2866$. Ghost E-SQUARE Trekking Advanced U 2021 on the other hand is the most expensive at 3184$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid e-bikes
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When Ghost released this model in 2021, its price was 2866$. Comparing the average cost of a Hybrid e-bike to this one, you will see that E-SQUARE Trekking Universal W price is 15.56% more expensive.
E-SQUARE Trekking Universal W components
Fork
The fork installed on this bike is the Suntour XCM model. The travel on this model is 80mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When leaving the production line, the E-SQUARE Trekking Universal W model has aluminum wheels. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The E-SQUARE Trekking Universal W comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
