Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" / 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox Revelation RC
-
Groupset XT -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano BT-E8010 with Shimano EC-E6000 charger -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
RockShox Revelation RC DebonAir
Rear Shock
RockShox Super Deluxe Coil R
Drivetrain
Rear Derailleur
Shimano XT RD-M8000 Shadow Plus
Front Derailleur
N/A
Shift Levers
Shimano XT SL-M8000, 11-speed
Cassette
Shimano XT CS-M8000, 11-46 tooth, 11-speed
Crank
Ground Fiftyone
Chain
11-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss H 1700, Boost front and rear
Rear Hub
DT Swiss H 1700, Boost front and rear
Rims
Front: DT Swiss H 1700 Spline, 30mm width, Rear: DT Swiss H 1700 Spline, 35mm width
Spokes
DT Swiss
Tires
Front: Maxxis Minion DHR II, 29" x 2.4" 3C MaxxTerra EXO, Rear: Maxxis Minion DHR II, 27.5" x 2.8" 3C MaxxTerra EXO
Brakes
Brakes
Magura MT 7 with 203mm rotors, 4 pistons
Brake Levers
Magura MT 7
Cockpit
Stem
Ground Fiftyone Team, 55mm length, 35mm clamp
Handlebar
Ground Fiftyone Race, 780mm width, 35mm diameter
Headset
16012, 44mm top / 56mm bottom
Seat
Saddle
Ergon SME30
Seatpost
KS Lev Integra, 175mm drop
Motor & Battery
Motor
Shimano DU-E8000
Battery
Shimano BT-E8010 with Shimano EC-E6000 charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.4 mm | 1.34 mm | 1.29 mm |
| Front Center | 725 mm | 748 mm | 792 mm | 829 mm |
| Rake | 48 mm | 47 mm | 48 mm | 47 mm |
| Trail | 110 mm | 112 mm | 110 mm | 112 mm |
| Stack | 616 mm | 626 mm | 644 mm | 663 mm |
| Reach | 427 mm | 447 mm | 482 mm | 512 mm |
| Top Tube Length | 577 mm | 599 mm | 639 mm | 673 mm |
| Seat Tube Angle | 76.1 ° | 76.1 ° | 76.1 ° | 76.1 ° |
| Seat Tube Length | 390 mm | 430 mm | 460 mm | 500 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 90 mm | 100 mm | 120 mm | 140 mm |
| Chainstay Length | 462 mm | 462 mm | 462 mm | 462 mm |
| Wheelbase | 1185 mm | 1208 mm | 1252 mm | 1289 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 722 mm | 724 mm | 753 mm | 776 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

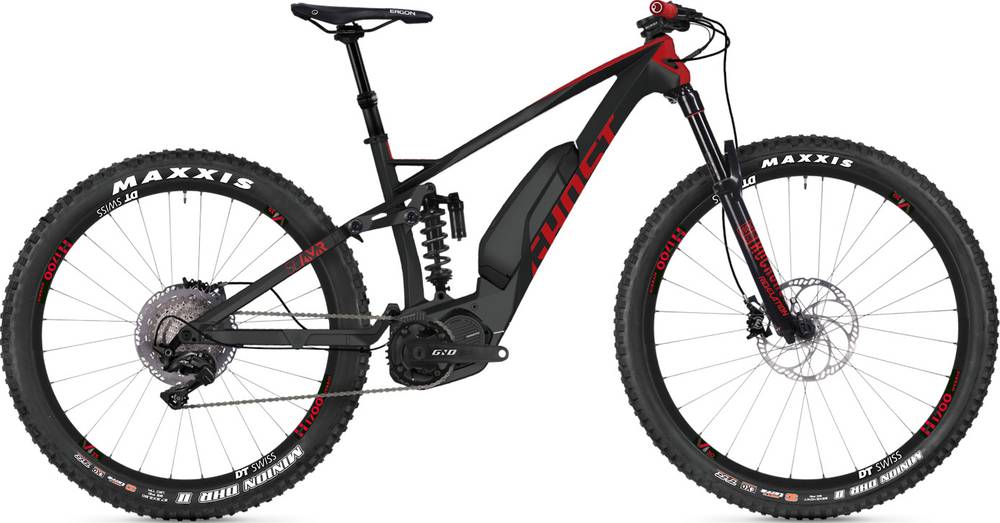

Hybride AL AMR S 6.7+ is part of the Ghost E Hybride model. 20 e-bikes variations carry this model name so far. Take a sneak peek at all Ghost E Hybride e-bikes models from 2018, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail e-bikes average price
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
The RockShox Revelation RC is included from the factory. It has a travel distance of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this e-bike is RockShox Super Deluxe Coil R, with a travel distance of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When leaving the production line, the Hybride AL AMR S 6.7+ model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Hybride AL AMR S 6.7+ comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Ghost Hybride AL AMR S 6.7+ e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
